Keyestudio EASY plug Slide Potentiometer Module For Arduino STEM

The Keyestudio EASY plug Slide Potentiometer Module is a reliable linear control interface designed for students, educators, and makers working with Arduino STEM projects. Featuring a dual analogue output and a user-friendly RJ11 connection, this module simplifies physical computing and sensor integration.

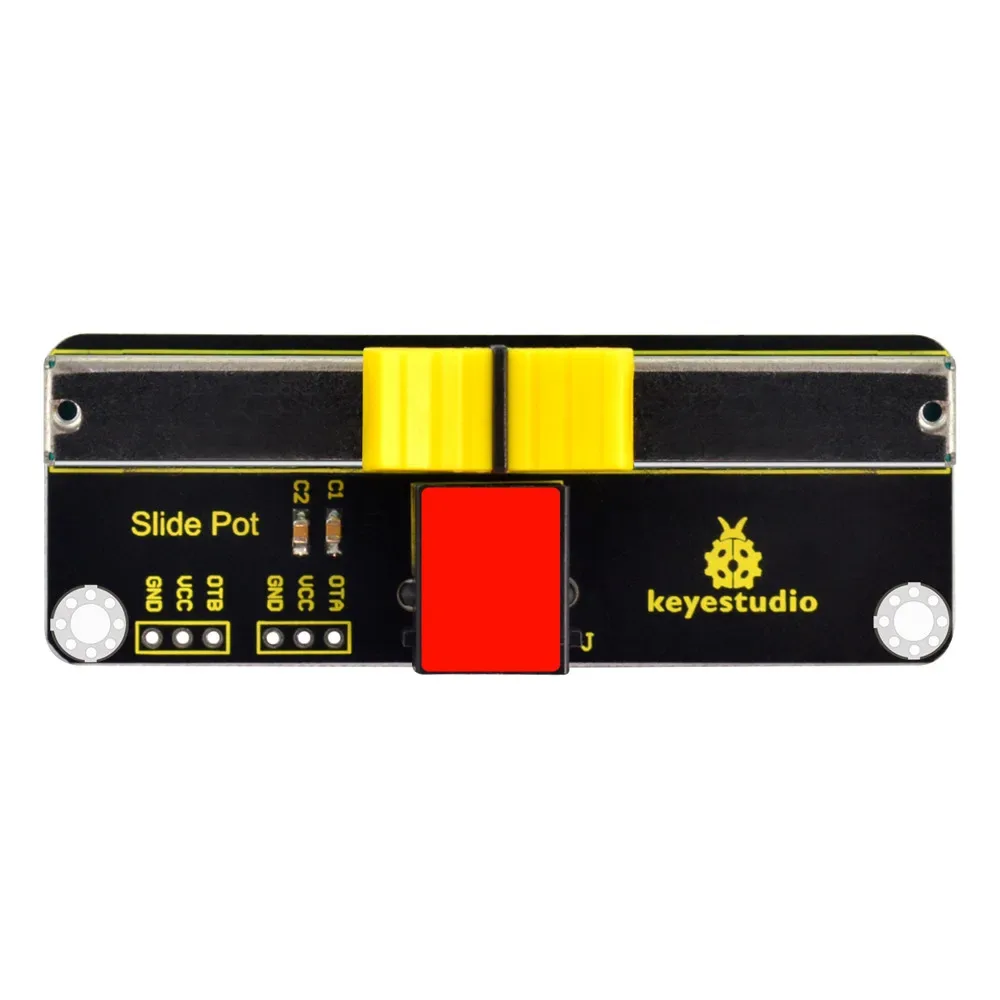

High-quality sliding control

Built with high-quality sliding components, this module delivers stable and reliable performance for precise manual adjustments. It provides a dual analogue output that scales from 0V to VCC.

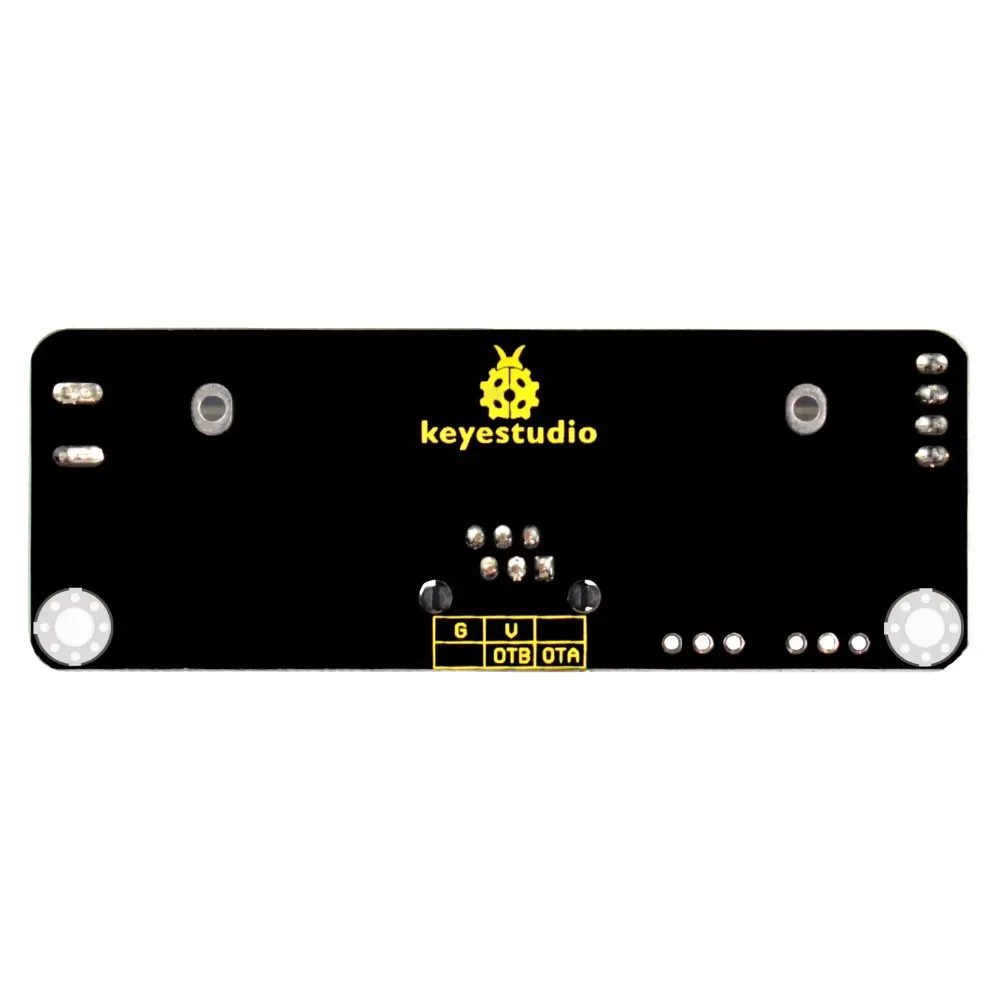

Effortless RJ11 connectivity

The module pins are extended into a registered jack, allowing you to easily connect it to an EASY plug control board using a standard RJ11 cable. This solderless setup is ideal for rapid prototyping in classrooms.

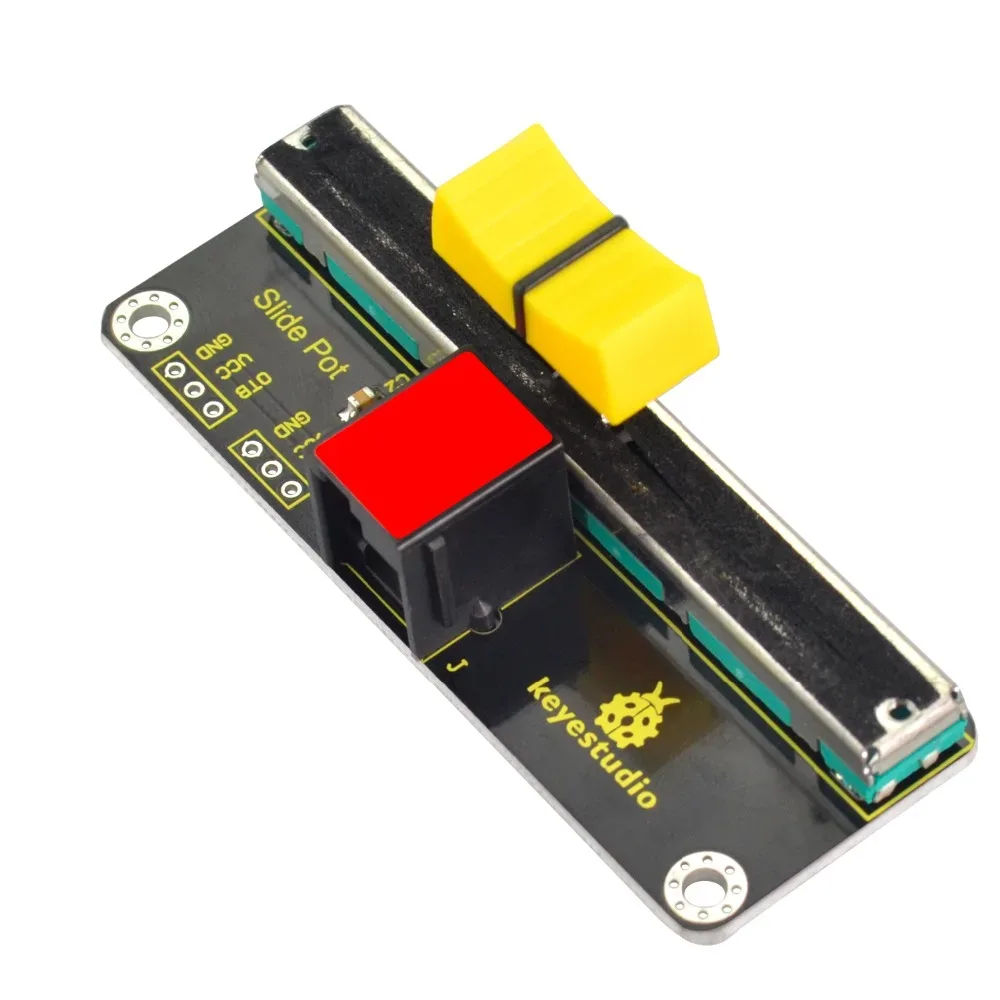

Flexible microcontroller integration

For advanced makers, the board features six pad interfaces designed for soldering two 2.54mm pitch 3-pin headers. This allows you to easily interface the potentiometer with other microcontrollers outside the EASY plug ecosystem.

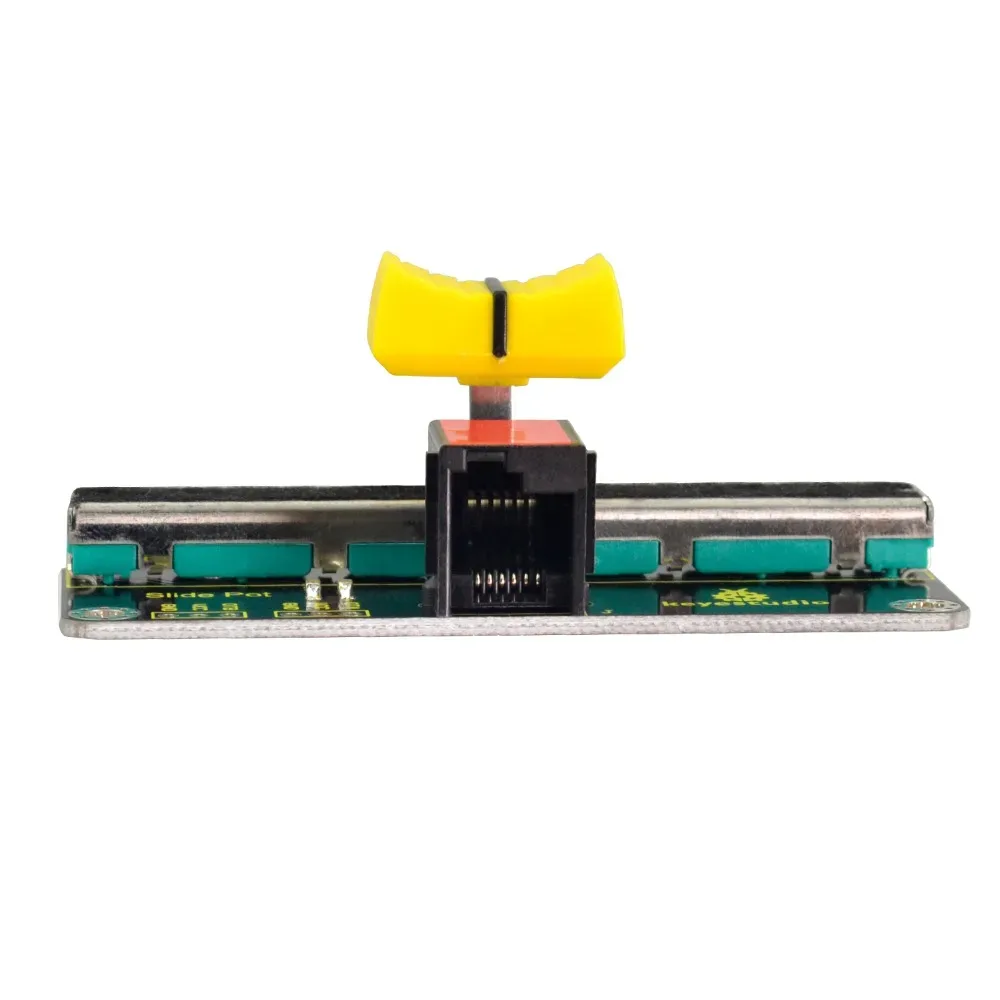

Dual analogue signal output

The signal terminal outputs two separate analogue values that dynamically change as you move the slider. The sum of these two output values always equals 1023, offering a unique dual-control mechanism.

Key electrical specifications

This RoHS-compliant module operates on a DC voltage range of 3.3V to 5V. It features a total resistance of 5K ohms, making it highly compatible with standard development boards.

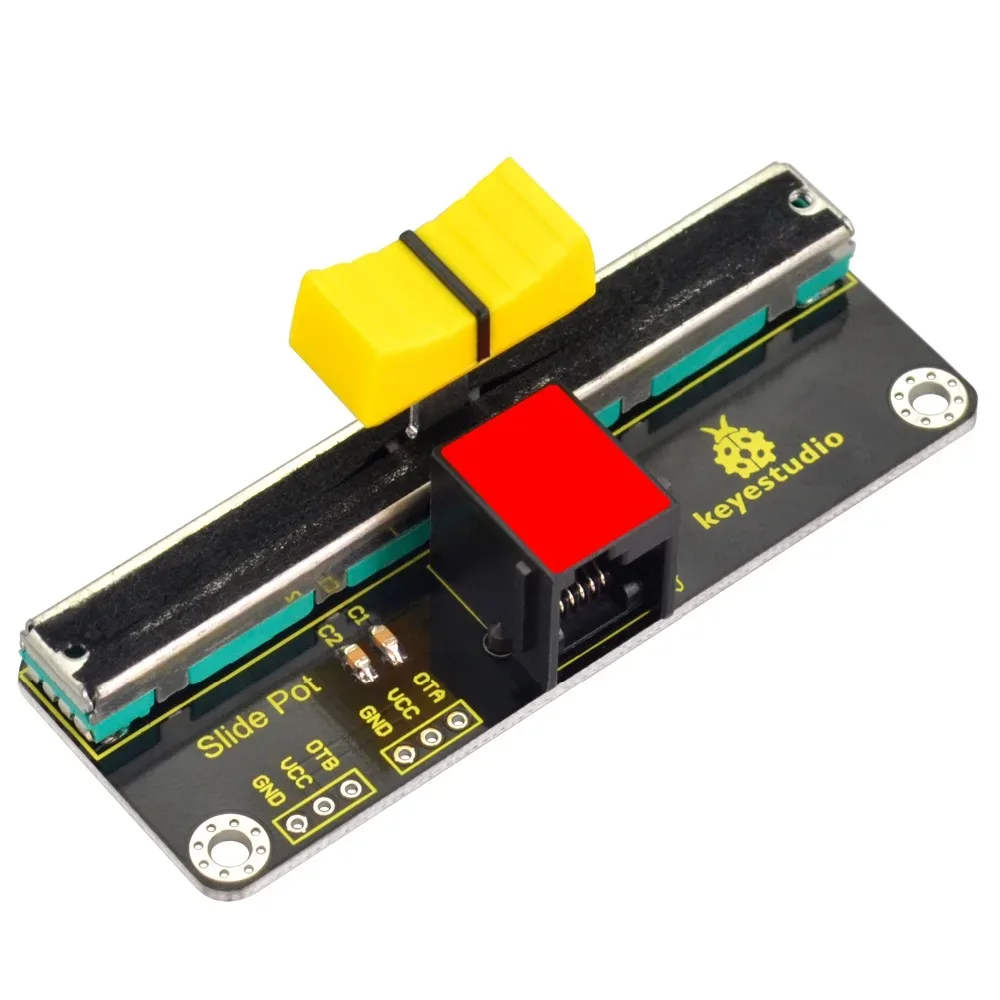

Compact physical dimensions

Measuring 28mm by 76.7mm by 31.3mm and weighing just 17g, this compact slider is easy to integrate into custom enclosures or educational chassis.
