Keyestudio Easy Plug Shield IO Expansion Board for Micro Bit V1.1

The Keyestudio Easy Plug Shield IO Expansion Board for Micro Bit V1.1 is a versatile expansion board designed to simplify wiring for educational robotics and electronics projects. It is ideal for South African students, educators, and hobbyists who want to build micro:bit projects without the hassle of complicated breadboard wiring.

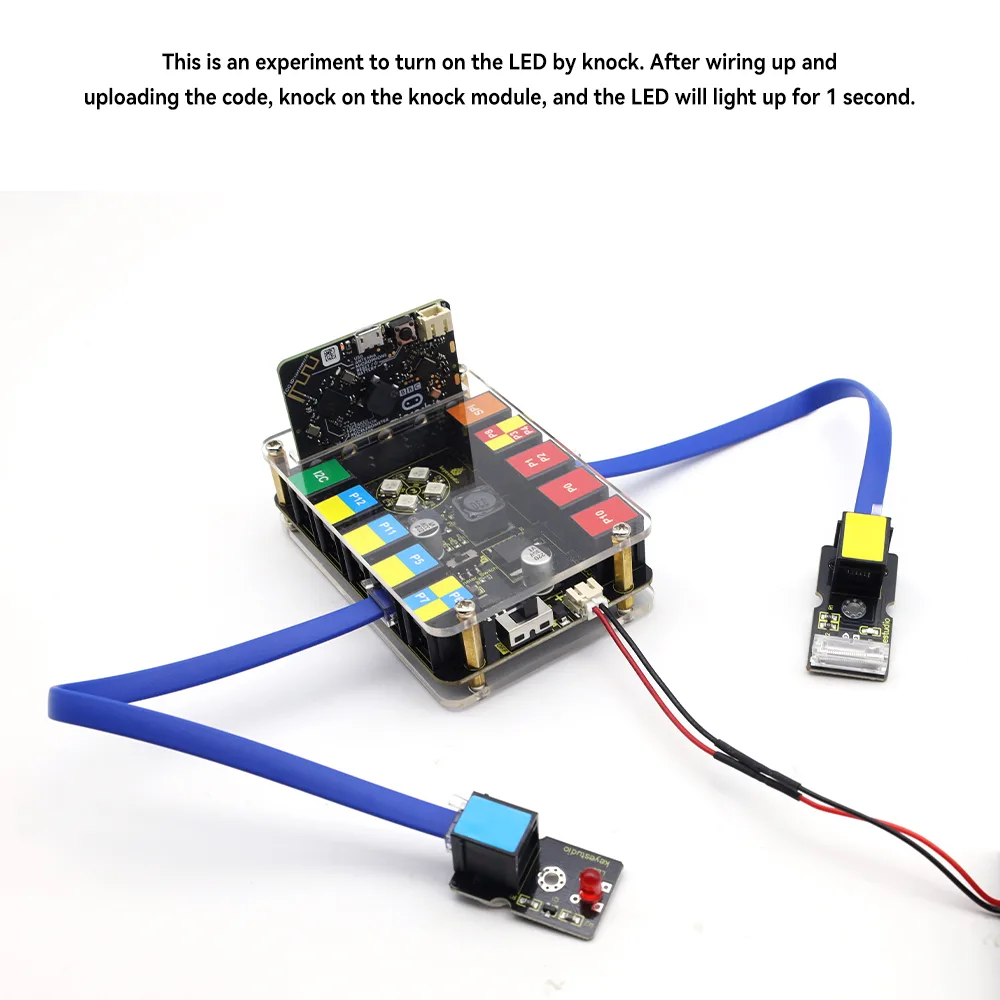

Solderless RJ11 connection system

The shield features 10 EASY plug RJ11 6P6C interfaces that allow you to connect compatible sensors and modules using simple telephone-style cables. This plug-and-play design eliminates the risk of incorrect wiring or reverse connections, protecting your components from damage.

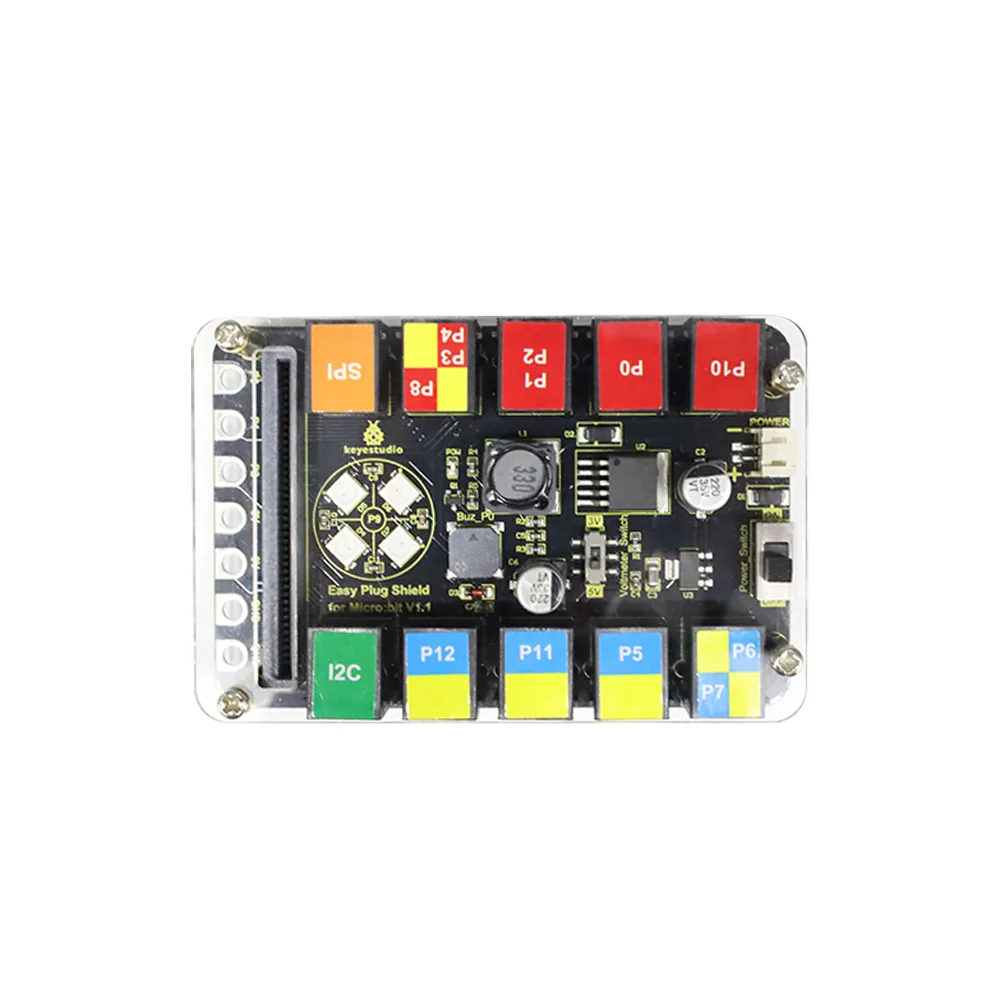

Built-in programmable components

To expand your project possibilities right out of the box, the board includes four WS2812 RGB LEDs controlled by pin P9 and a buzzer controlled by pin P0. It also features two DIP switches for quick configuration adjustments.

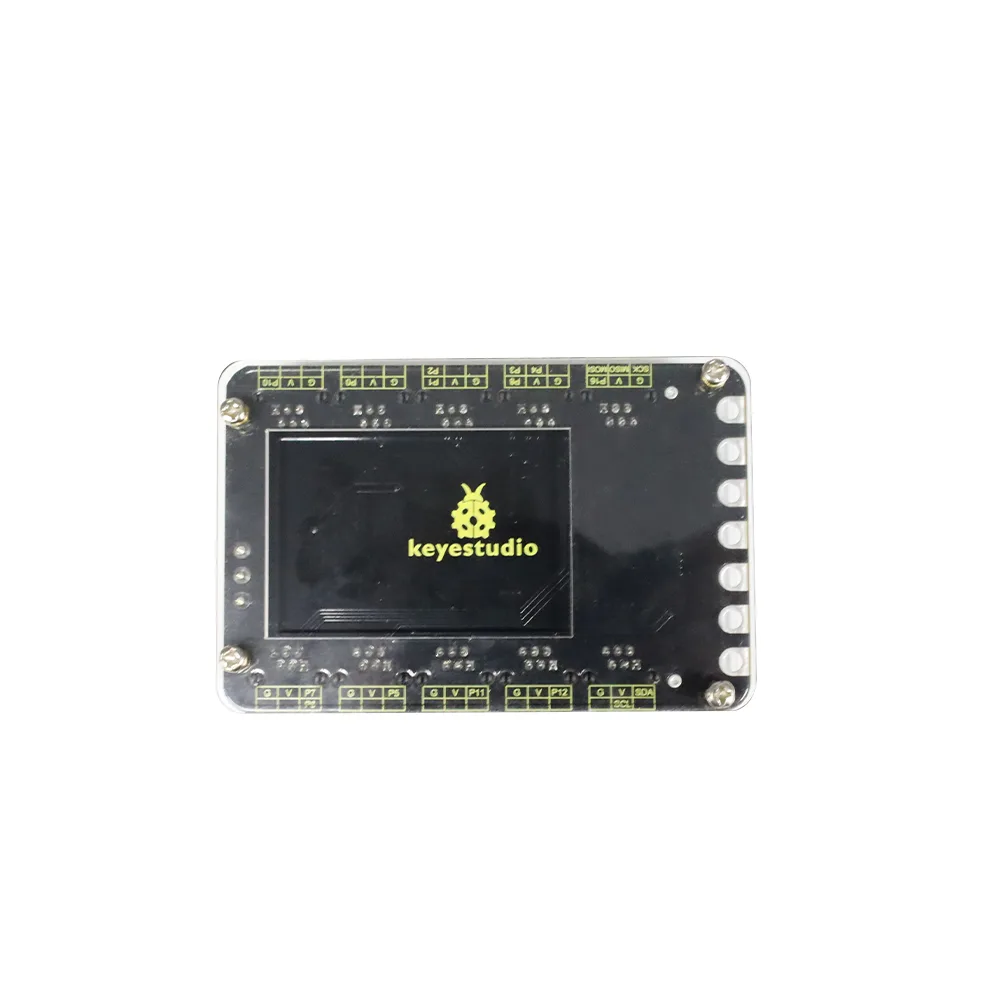

Flexible power management

The board accepts a DC 6-10V input through a 2.0mm anti-reverse port, delivering an output current of up to 1.5A. A dedicated power switch lets you safely turn your project on and off, while a voltmeter switch toggles the EASY plug voltage between 3.3V and 5V.

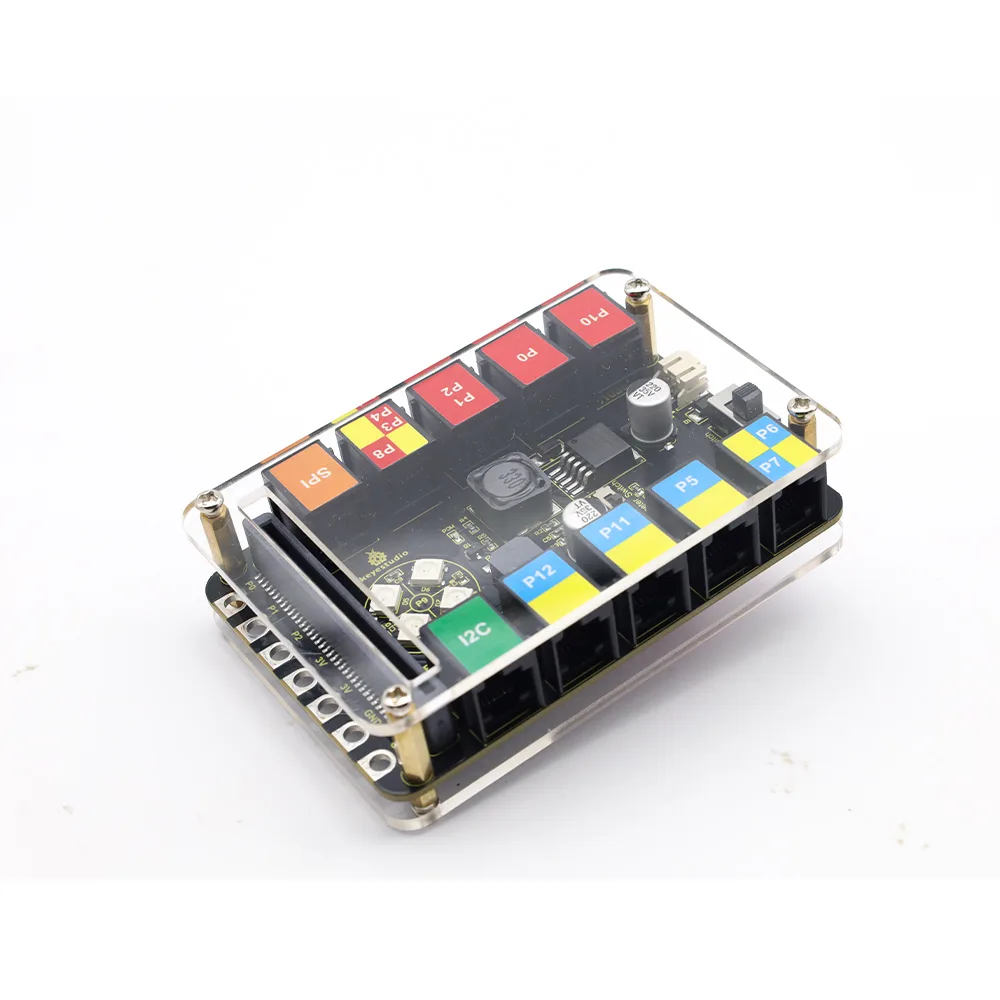

Golden finger edge connector

Simply slot your micro:bit V1.1 board directly into the shield to interface with its pins. In addition to the RJ11 ports, the golden finger interface provides direct access to the micro:bit's edge connector pins for versatile prototyping.

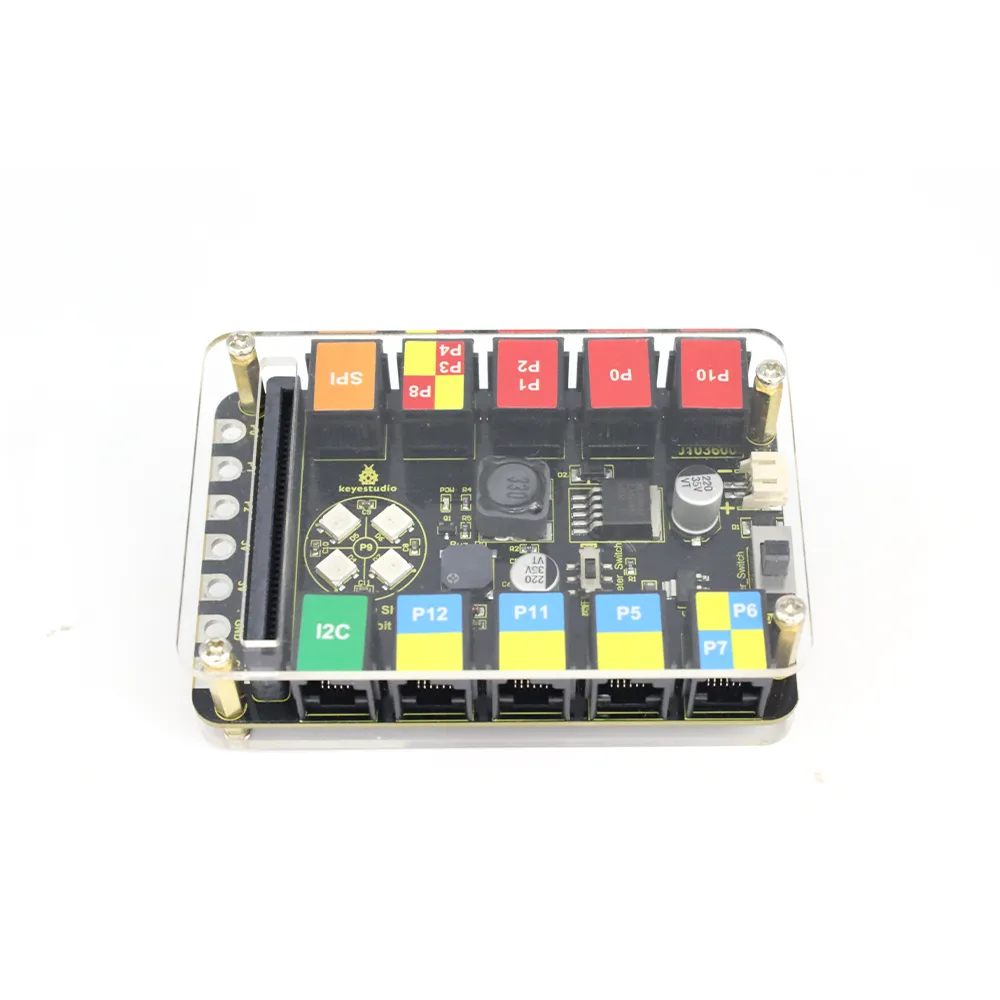

Compact and robust design

Measuring 98 by 65 by 17 millimetres, this compact shield fits neatly into classroom setups and maker projects. It is specifically designed to match Keyestudio RJ11 6P6C sensors and modules.
