Keyestudio E-Ink Screen Display LCD Module 1.54 Inch 200*200 for Arduino(black and white)

This 1.54-inch Keyestudio E-Ink display module is a high-contrast, black-and-white screen designed for low-power DIY electronics projects. Ideal for South African students, makers, and hobbyists, it offers a crisp 200x200 resolution that remains highly readable. The module integrates seamlessly with Arduino microcontrollers, making it perfect for custom weather stations, e-readers, and smart home displays.

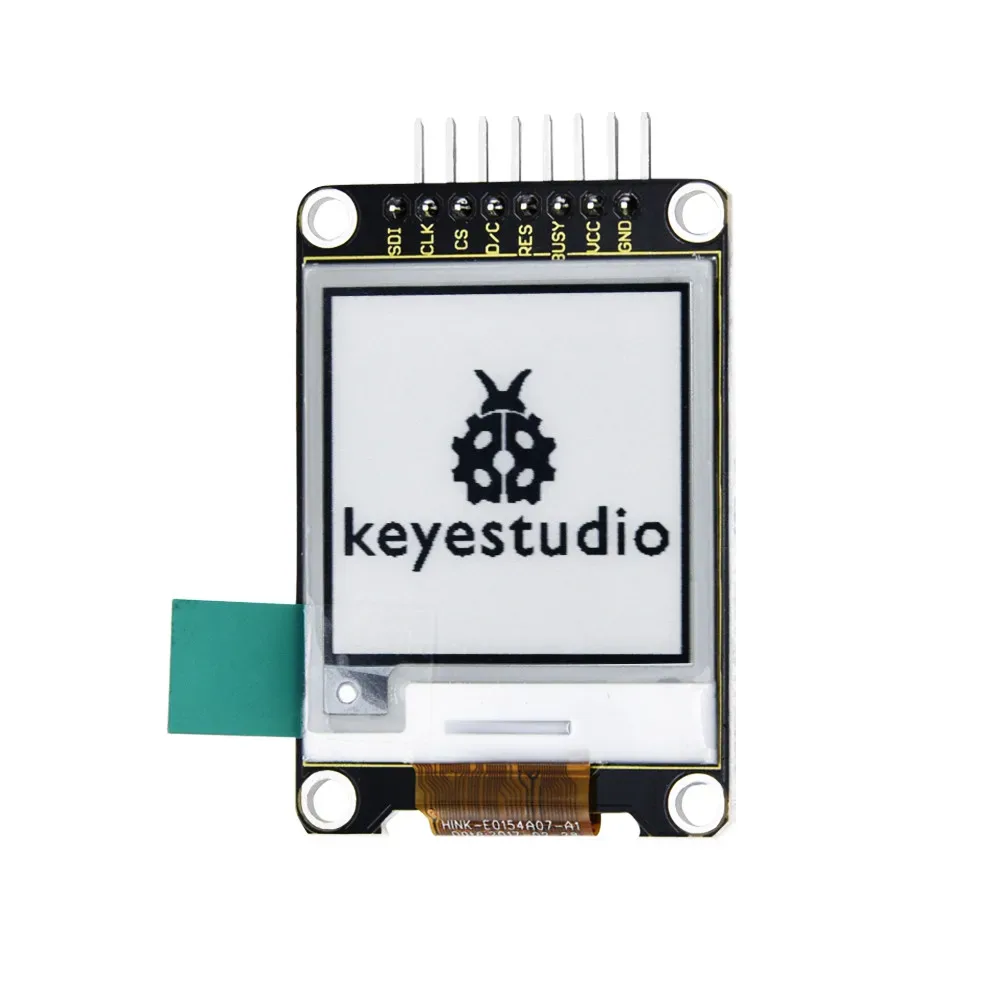

High-contrast paper-like display

The module features a 1.54-inch screen with a 200x200 resolution, delivering crisp black-and-white visuals. It uses SPI communication to dynamically update patterns and text, making it ideal for low-power data readouts.

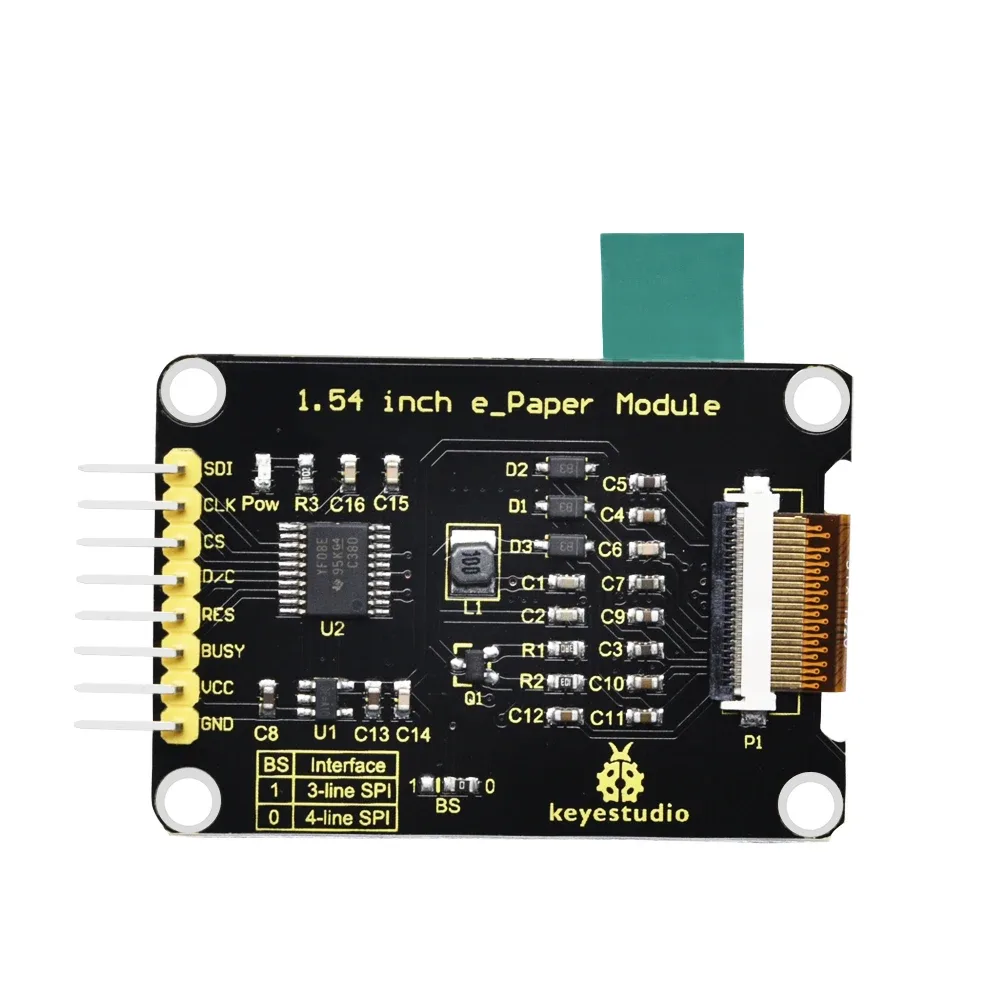

Secure mounting hardware included

To easily integrate the display into your custom enclosures or robot chassis, the board features four 3mm positioning holes. It comes complete with four M3 x 10mm hex copper standoffs and four M3 x 6mm round head screws.

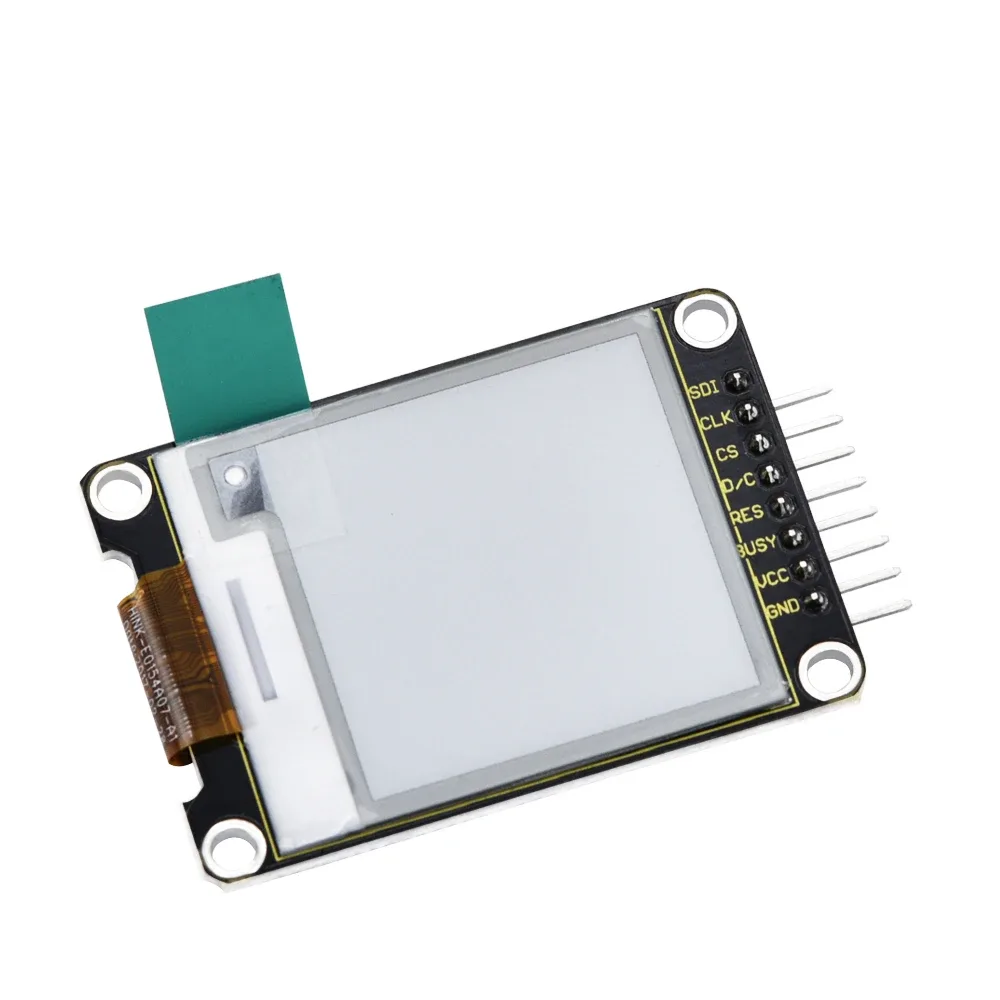

Low-power electrical specifications

Operating at a standard DC 5V working voltage, the module draws a working current of 150mA with a maximum power consumption of 0.75W. This efficient power profile makes it highly suitable for portable or battery-powered projects.

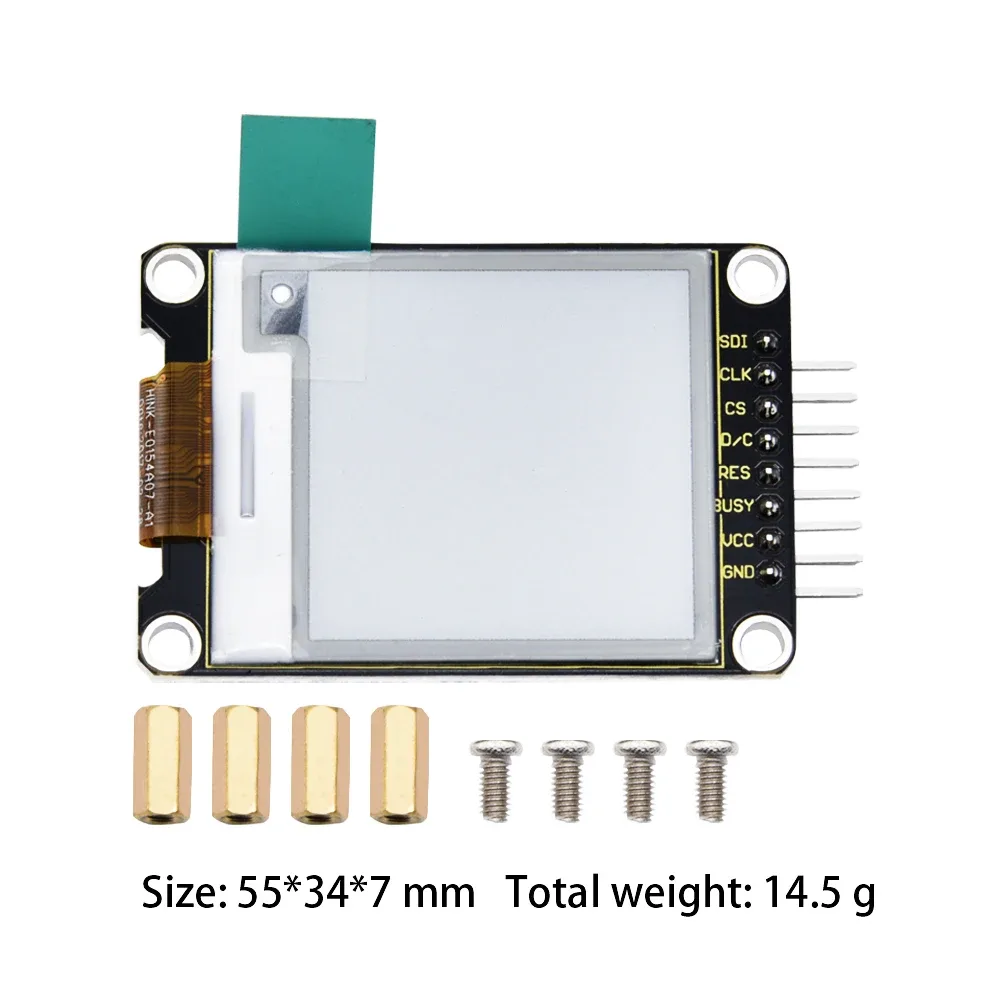

Compact form factor and standard header

Measuring just 55mm by 34mm by 7mm and weighing only 14.5g, this compact module fits into tight spaces. Connection is simplified via a standard 8-pin header with a 2.54mm pitch.

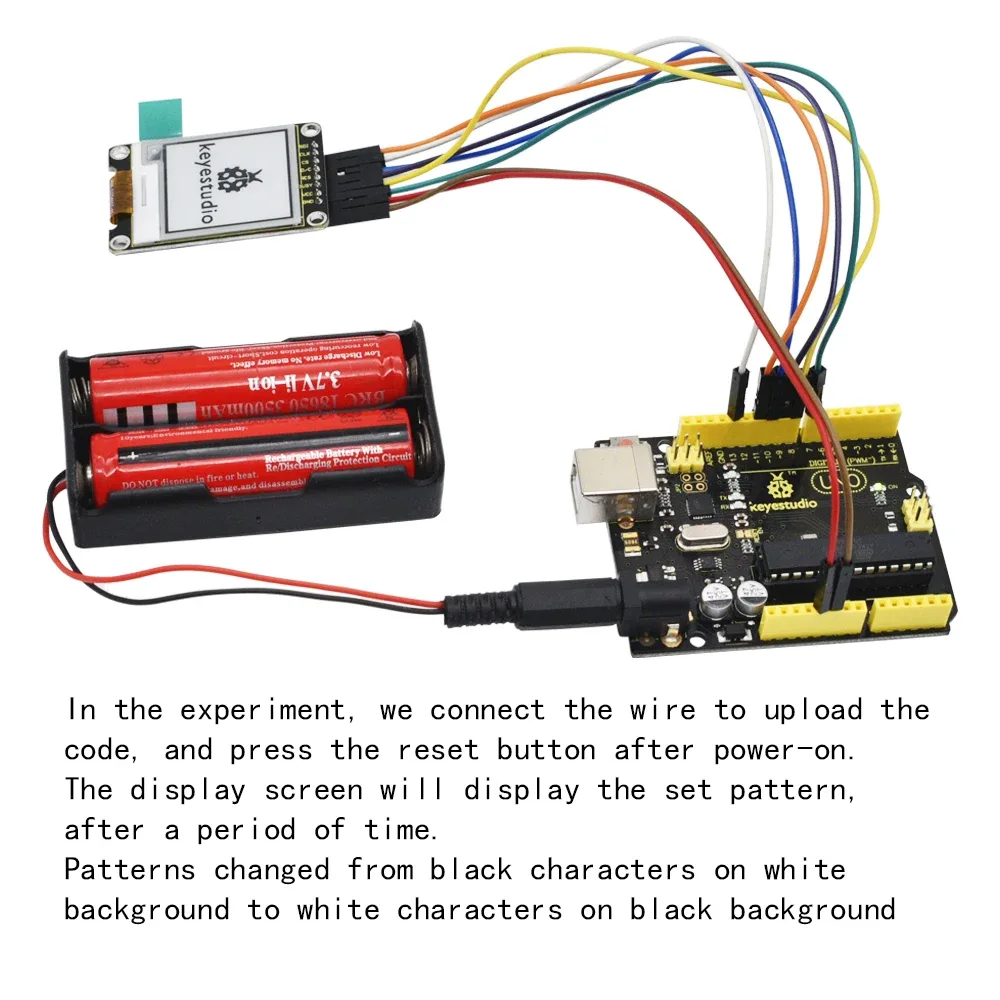

Arduino integration and software compatibility

Detailed tutorials and methods are provided to help you connect the display to your Arduino microcontroller. Please note that testing was conducted using Arduino IDE version 1.8.9, and other versions may require code adjustments for compatibility.

Robust operating temperature range

Built to withstand diverse environments, the module operates reliably in temperatures ranging from -20 degrees Celsius to +60 degrees Celsius. It also carries RoHS environmental certification for peace of mind.
