Keyestudio CAN-BUS Shield MCP2515 chip With SD Socket For Arduino UNO R3

The Keyestudio CAN-BUS Shield is an expansion board designed to bring Controller Area Network communication to your Arduino projects. It is ideal for students, educators, and makers looking to establish reliable data communication between microcontrollers and automotive or industrial networks.

Seamless Arduino hardware compatibility

This shield is designed to match the standard Arduino UNO interface, allowing it to adapt perfectly to main control boards like the Arduino UNO and Leonardo.

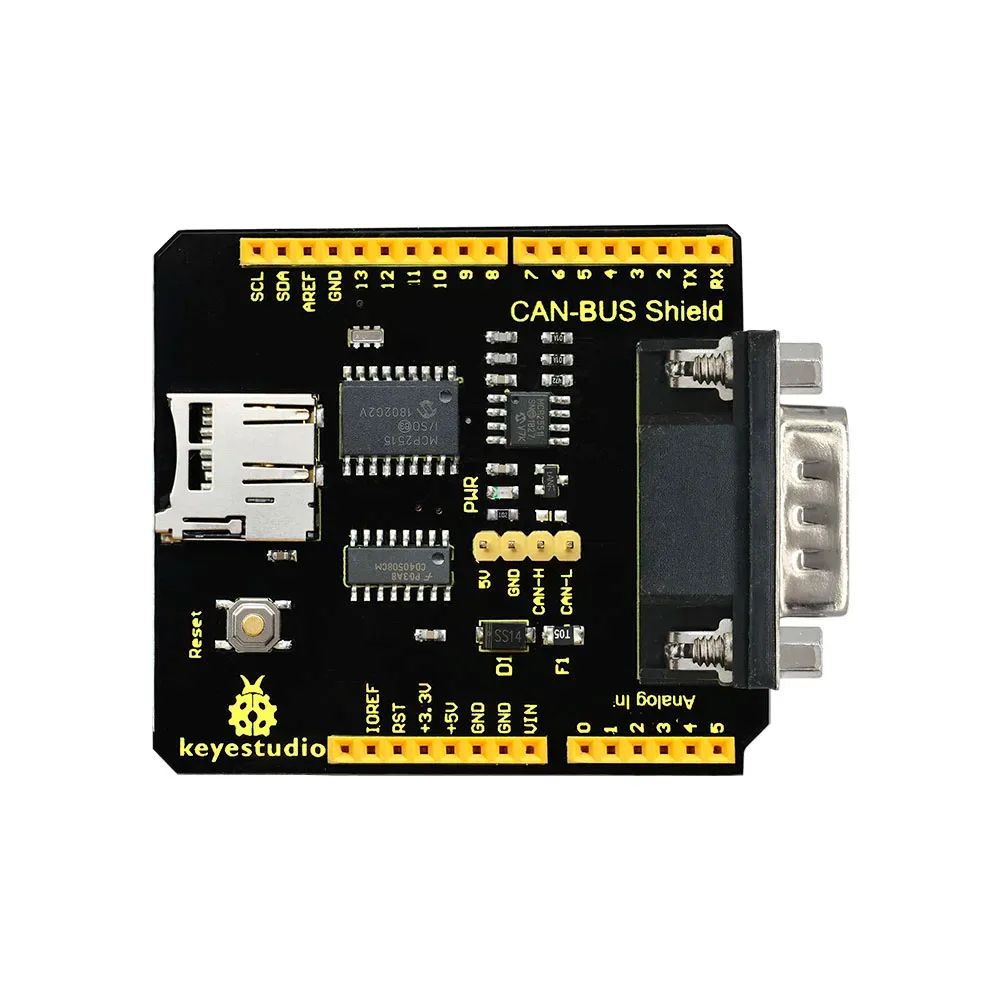

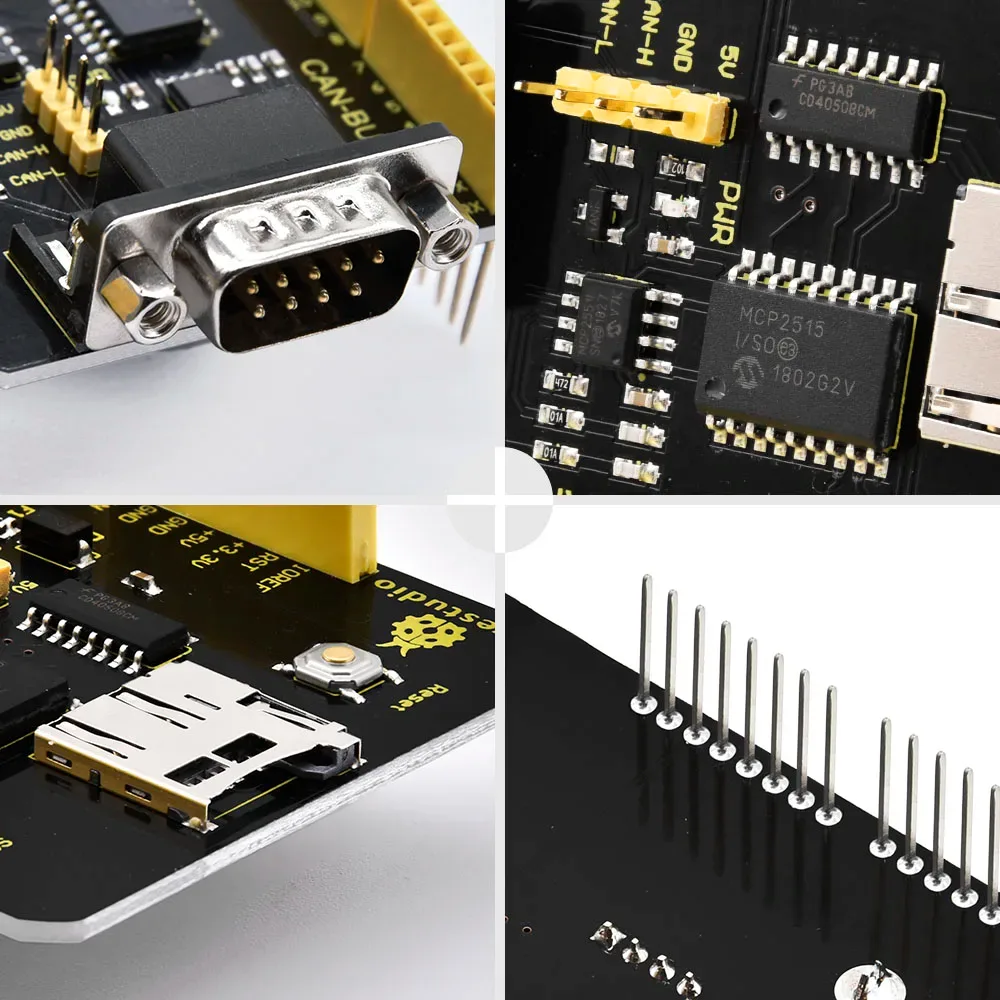

Onboard MCP2515 CAN controller

Equipped with the MCP2515 bus control chip, this board enables robust data control on the CAN bus. It supports both standard and extended frames for transmission and reception.

Dual data receiving methods

The shield supports both polling and interrupt methods for receiving data. This gives you the flexibility to optimise your code's efficiency based on your project's needs.

Versatile interface options

The board provides multiple interfaces including UART, I2C, and a DB9 connector. It supports convenient power supply options via either the Arduino motherboard or the DB9 connector.

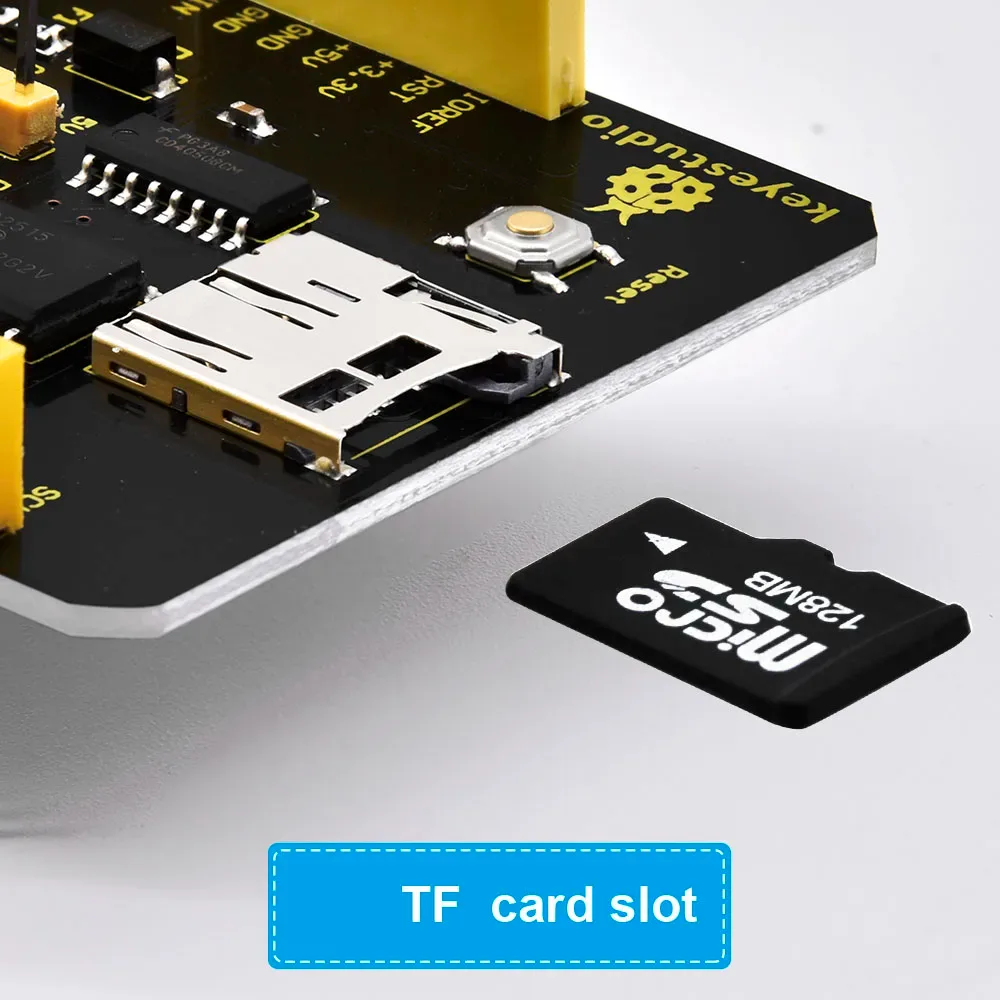

Integrated SD card storage

An onboard SD card socket allows for convenient data storage. This is perfect for data logging applications where you need to record CAN bus communications directly to a card.

Compact and compliant specifications

Operating at DC 5V, this compact 24g board measures 66mm by 54mm by 28mm. It carries ROHS environmental certification, ensuring it meets safe manufacturing standards.
