Keyestudio APDS-9930 Attitude Sensor Module for Arduino

The Keyestudio APDS-9930 Attitude Sensor Module is a highly sensitive ambient light and proximity sensor designed for Arduino projects. It is ideal for students, educators, and makers looking to integrate precise human-eye-like light response and short-range object detection into their smart devices.

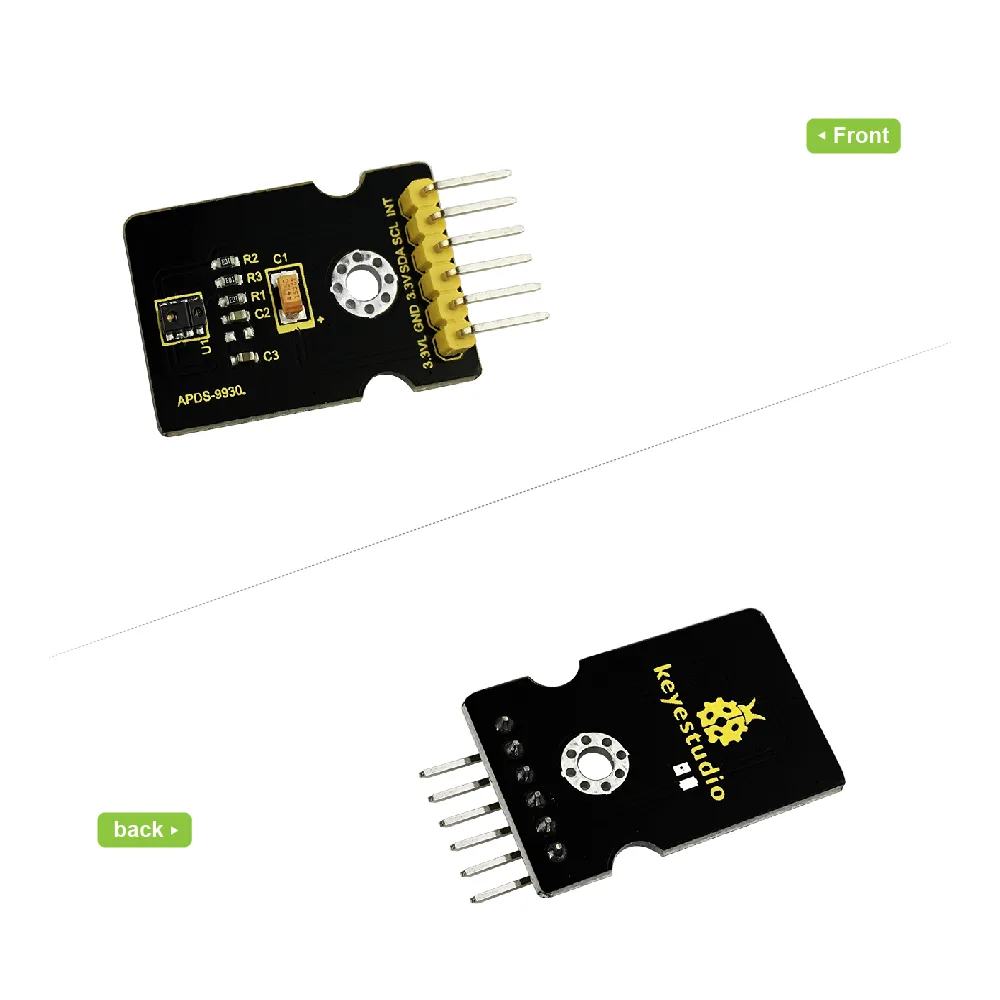

Dual-function optical sensing

This compact module integrates an ambient light sensor and an infrared LED proximity detector into a single 8-pin package. It communicates over a standard I2C interface at speeds up to 400kHz, making it easy to connect to your Arduino microcontroller.

Human-eye ambient light response

The ambient light sensor utilizes a double light diode to closely approximate the visual response of the human eye under low-light conditions down to 0.01 lux. This high sensitivity allows the module to function effectively even when mounted behind dark glass.

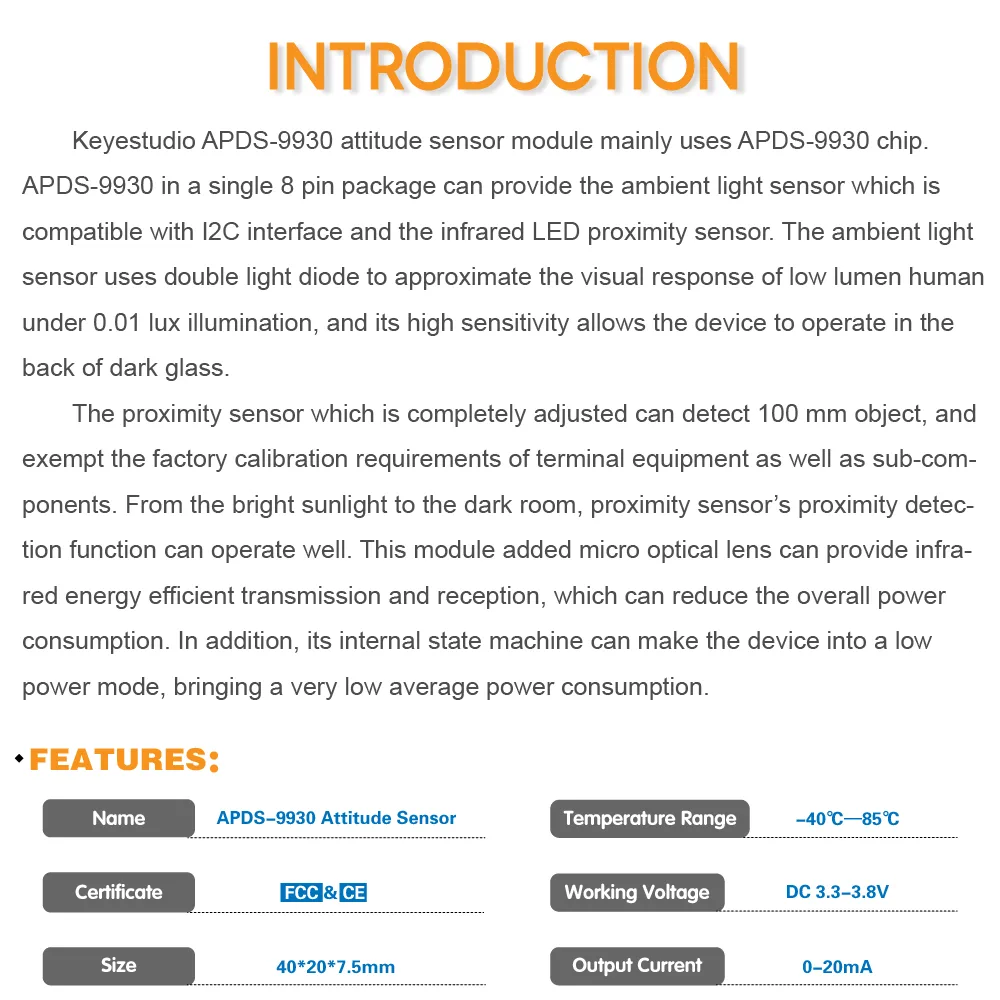

Pre-calibrated proximity detection

Capable of detecting objects up to 100 mm away, the proximity sensor operates reliably in environments ranging from bright sunlight to dark rooms. It features a fully calibrated design that eliminates the need for manual factory calibration of your terminal equipment.

Low-power management

An internal state machine and micro optical lens optimize infrared transmission to reduce overall power consumption. The module features a programmable waiting timer, drawing just 90uA in its waiting state and an ultra-low 2.2uA in sleep mode.
