KEYESTUDIO AND NOT Gates Logic Level Shifter Converter Circuit Module for Arduino

The KEYESTUDIO AND NOT Gates Logic Level Shifter Converter Circuit Module is a practical tool designed for Arduino projects requiring logical transformations. Ideal for students, educators, and hobbyists, this module simplifies the implementation of fundamental logic gates in your circuits.

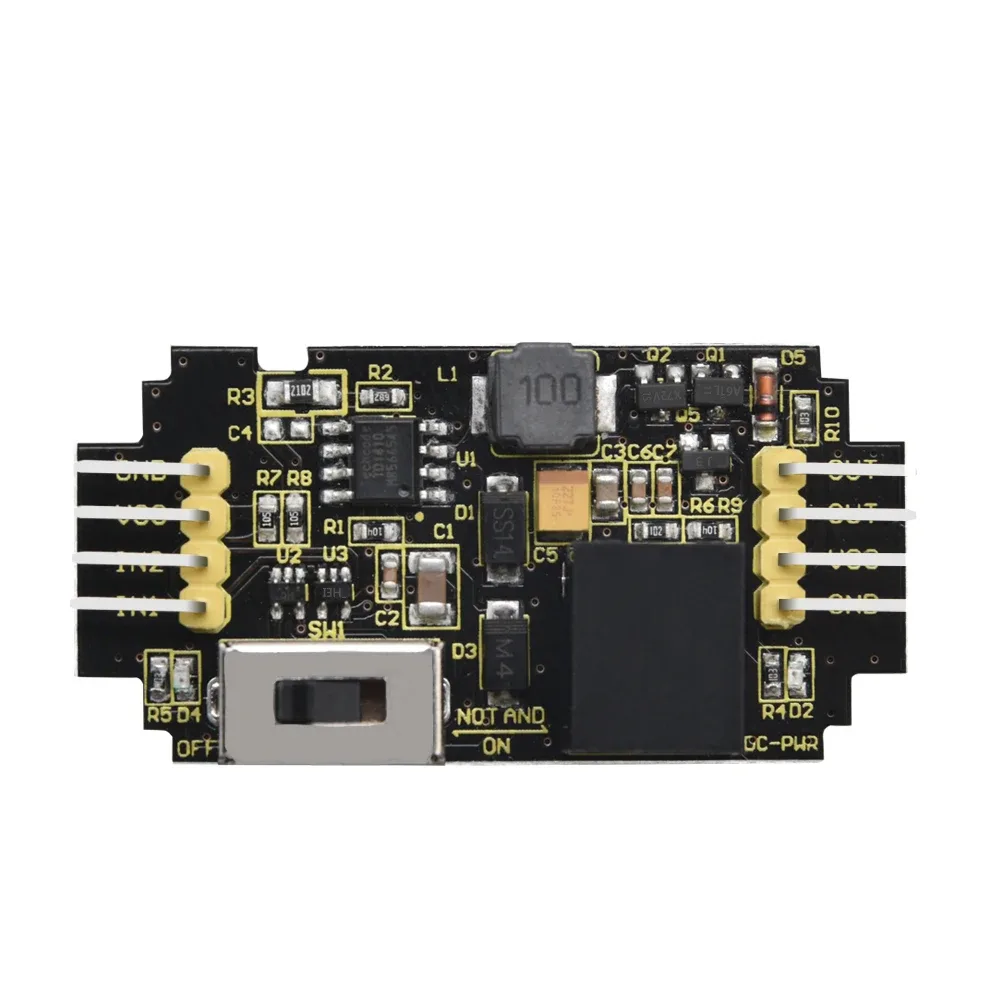

Logic gate transformation modes

This module provides built-in logic conversion functions including AND and NOR gates. Switch to SW1 to implement the NOR gate function, where the IN1 input level and the OUT output level are opposite, or switch to ON to combine the IN1 and IN2 levels for an AND gate output.

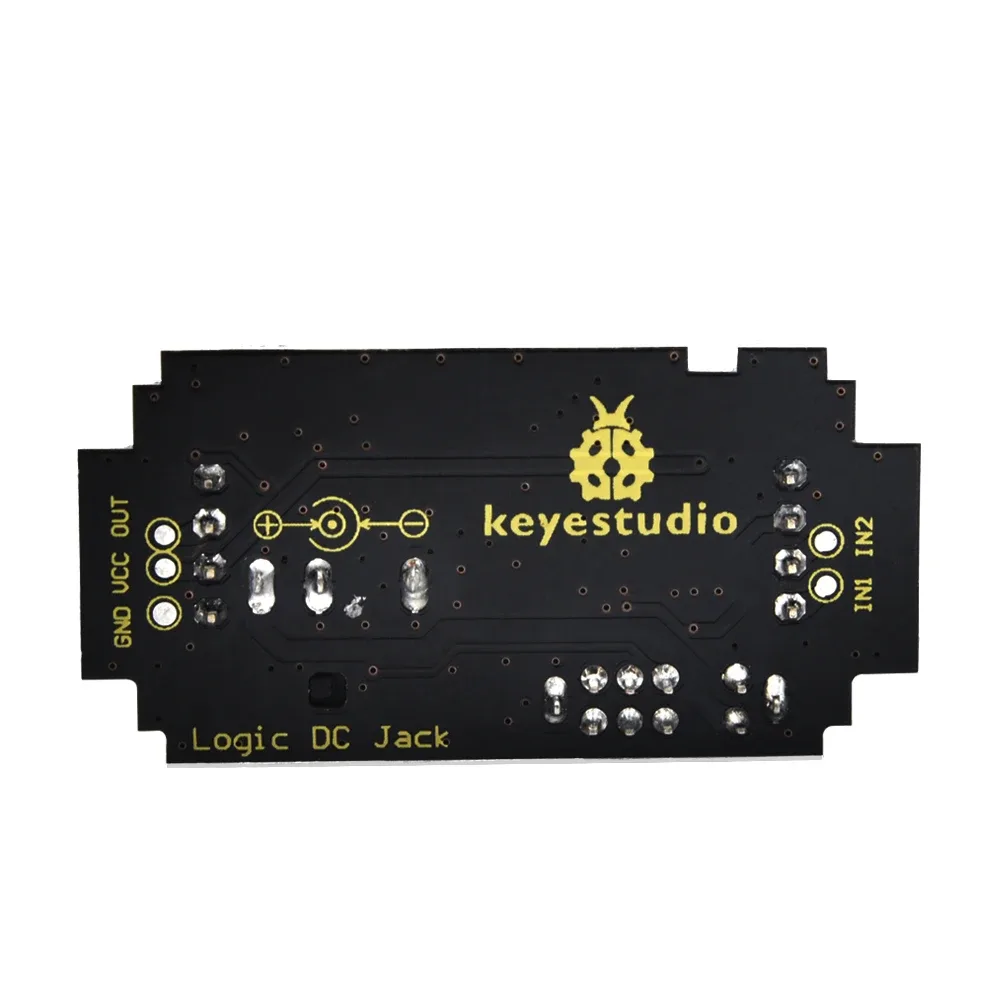

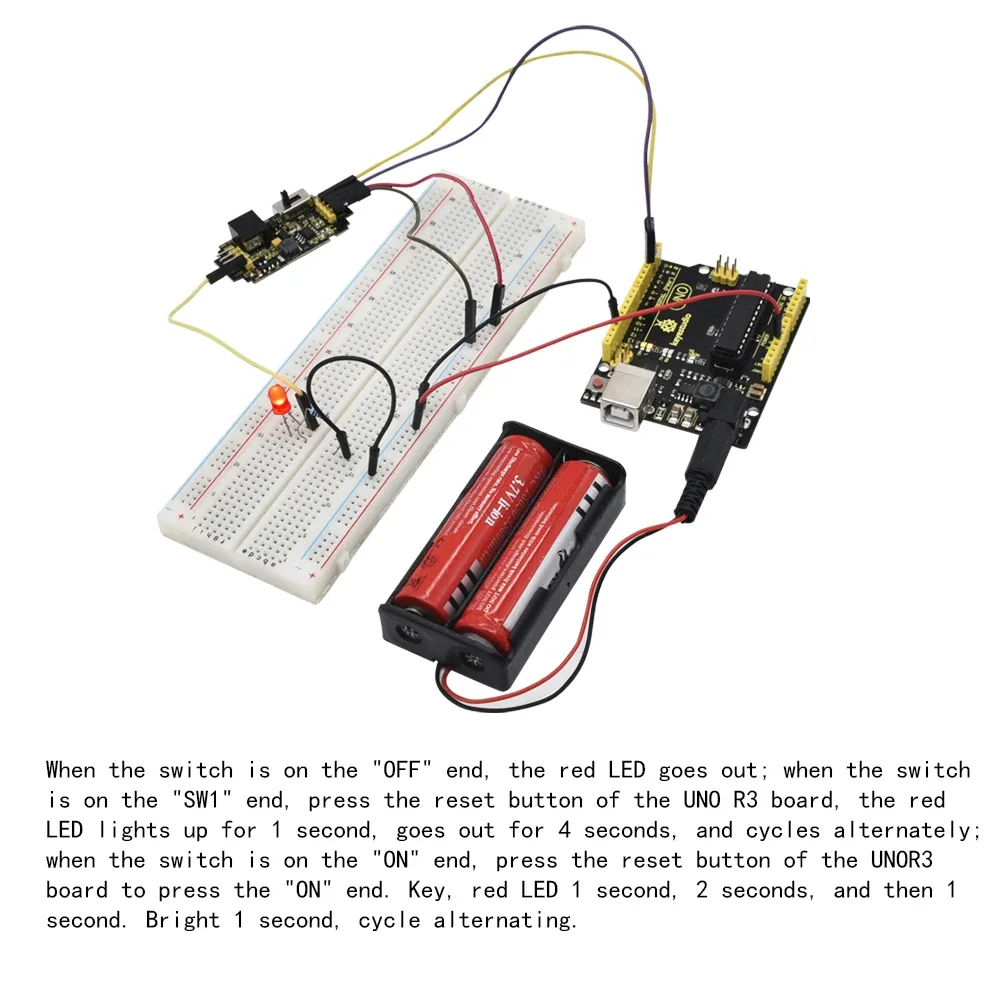

Three-way toggle switch control

The onboard toggle switch allows you to easily select the active logic function or disable the output entirely. Setting the switch to the OFF position completely cuts off the output signal.

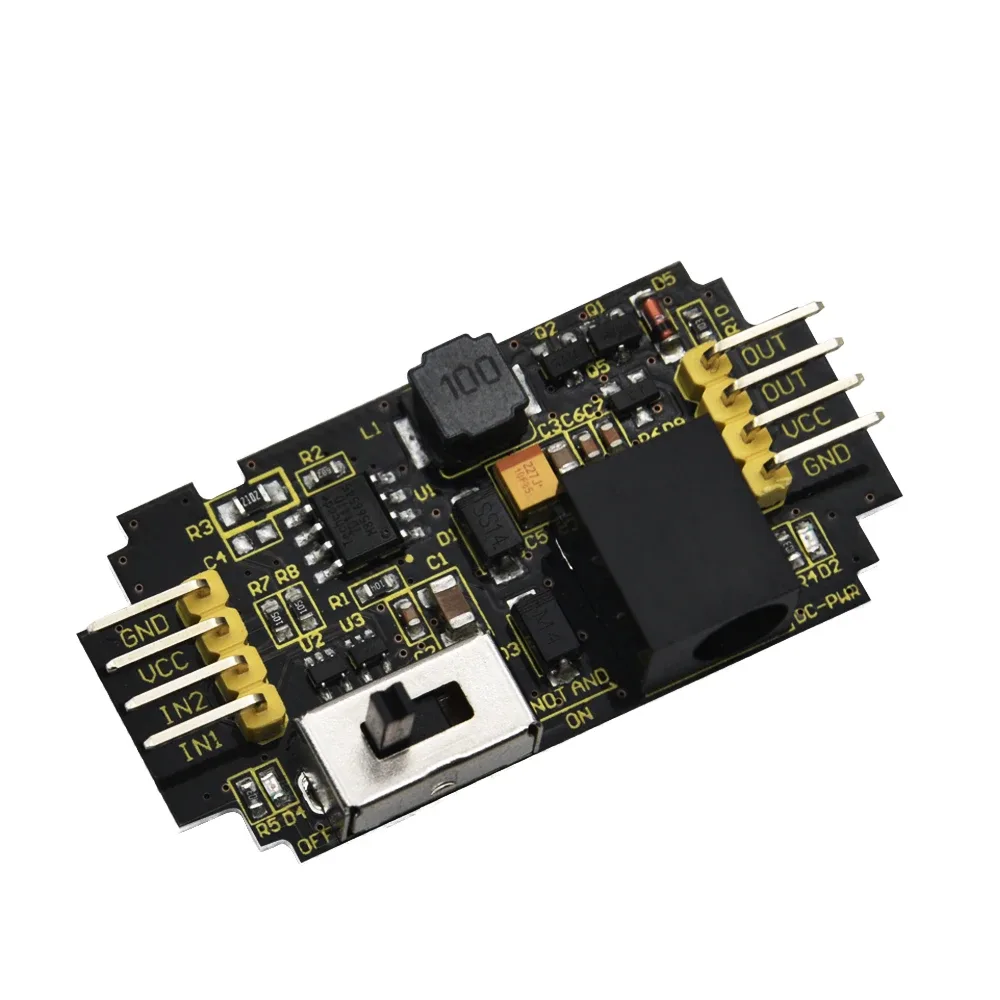

Dual power input methods

You can power the board in two ways: either by connecting a 5V supply directly to the VCC and GND pins, or by plugging a DC 5.5-15V power source into the onboard black DC jack.

Common ground requirement

When connecting the module to an external power supply and other microcontrollers, always ensure you connect the grounds together to establish a common GND connection.

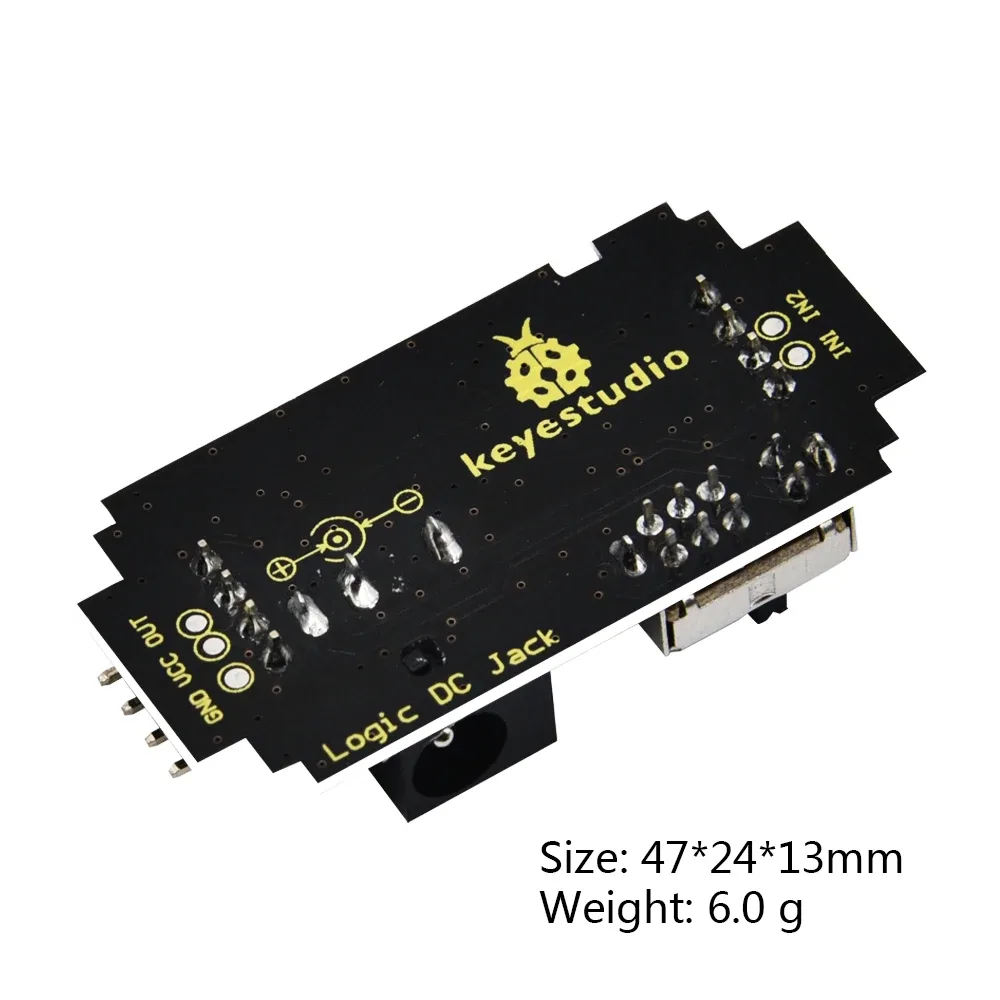

Compact physical dimensions

Weighing only 6.0g and measuring 47 by 24 by 13mm, this compact RoHS-compliant module is easy to integrate into any portable or desktop prototyping setup.

Power and temperature specifications

The module operates at 5V with a maximum power of 7.5W, supporting an external power supply current of up to 2A. It is rated to operate reliably within a temperature range of -20 to +60 degrees Celsius.
