Keyestudio 8x16 LED Dot Matrix Board With PH 2.54 Connector +4Pin Cable For Arduino

The Keyestudio 8x16 LED Dot Matrix Board is a compact display module featuring 128 bright LEDs in a neat grid. It is designed for students, makers, and hobbyists looking to add visual outputs, custom characters, or scrolling animations to their Arduino projects. With its simple interface, it integrates easily into any coding and robotics setup.

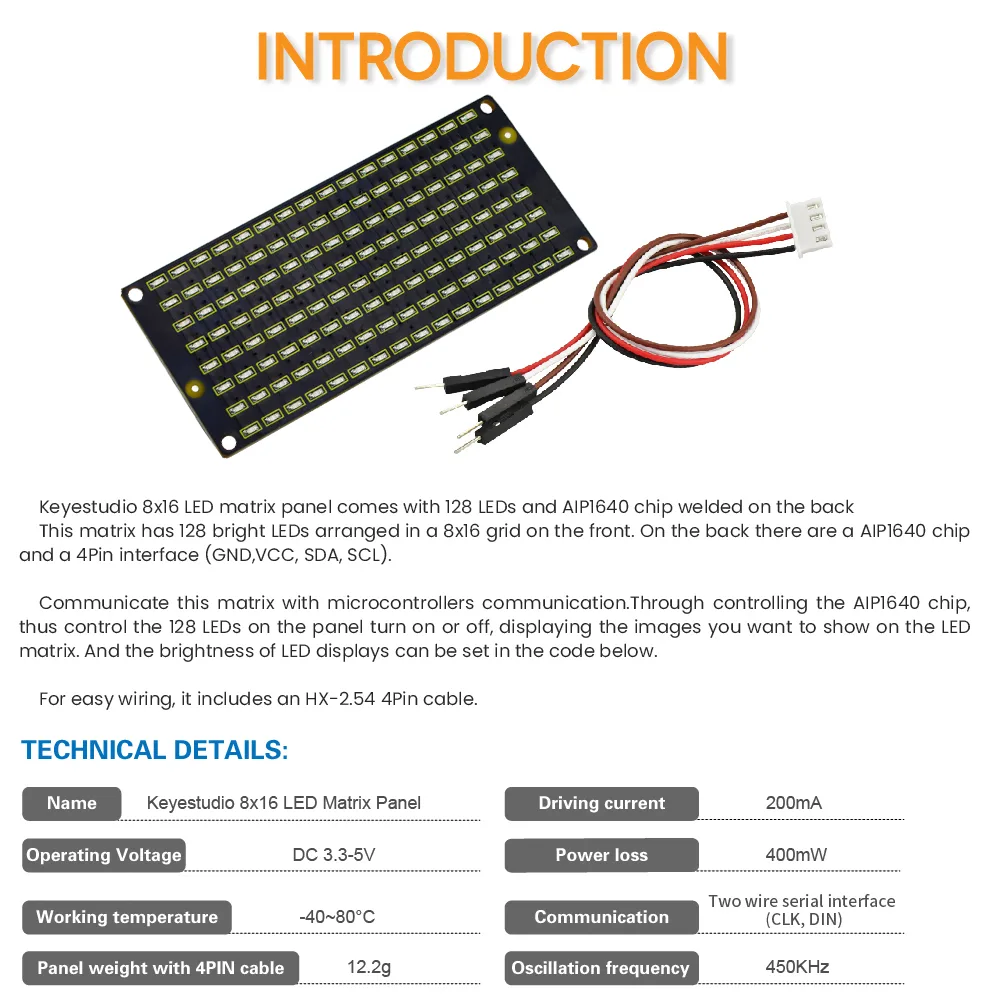

High-density LED grid

The display features 128 bright LEDs arranged in an 8x16 grid on the front of the panel. This layout provides a clear canvas for rendering custom graphics, icons, and text.

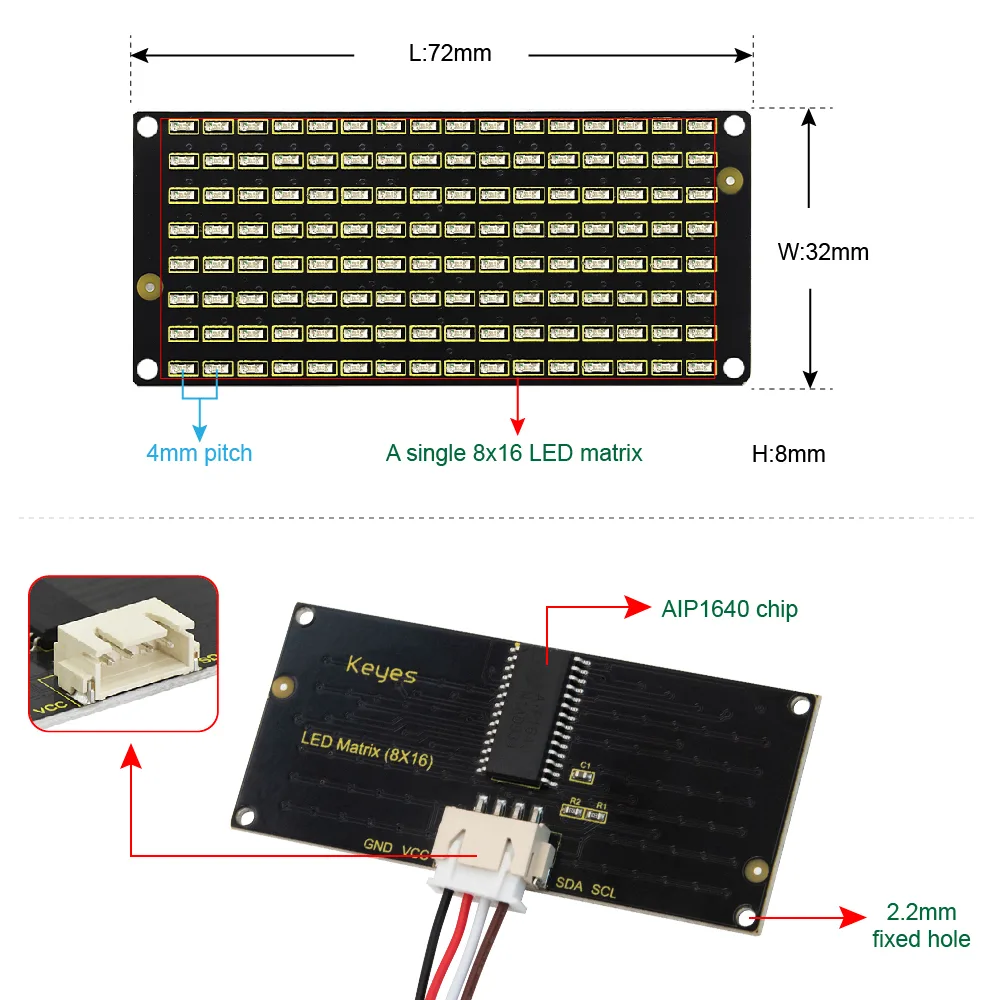

Integrated AIP1640 controller

Driven by an AIP1640 chip welded on the back, the board handles individual LED states efficiently. This dedicated driver reduces the processing load on your main microcontroller.

Simple I2C wiring

The module communicates via a standard I2C interface, requiring only four pins: GND, VCC, SDA, and SCL. This minimises the number of GPIO pins needed on your Arduino.

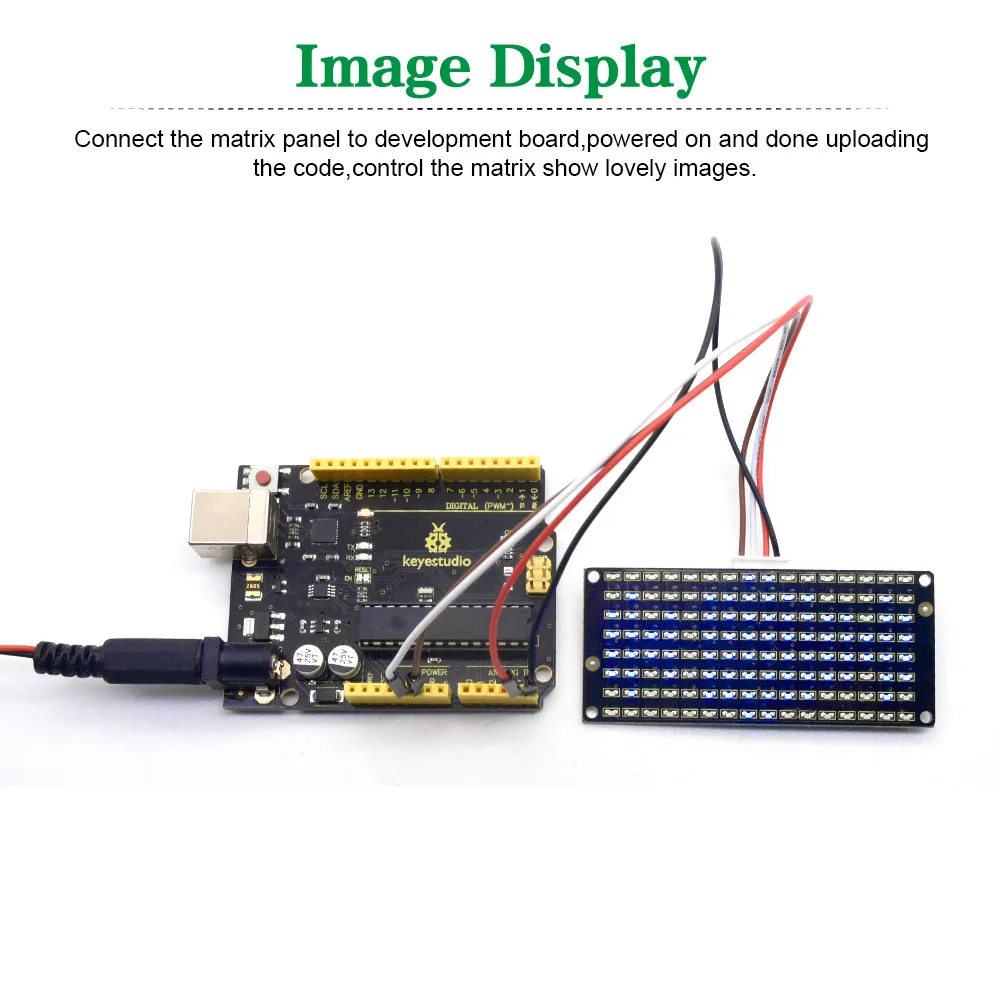

Adjustable display brightness

Through programming the AIP1640 chip, you can turn individual LEDs on or off to show custom patterns. The overall brightness of the LED display can also be configured directly in your code.

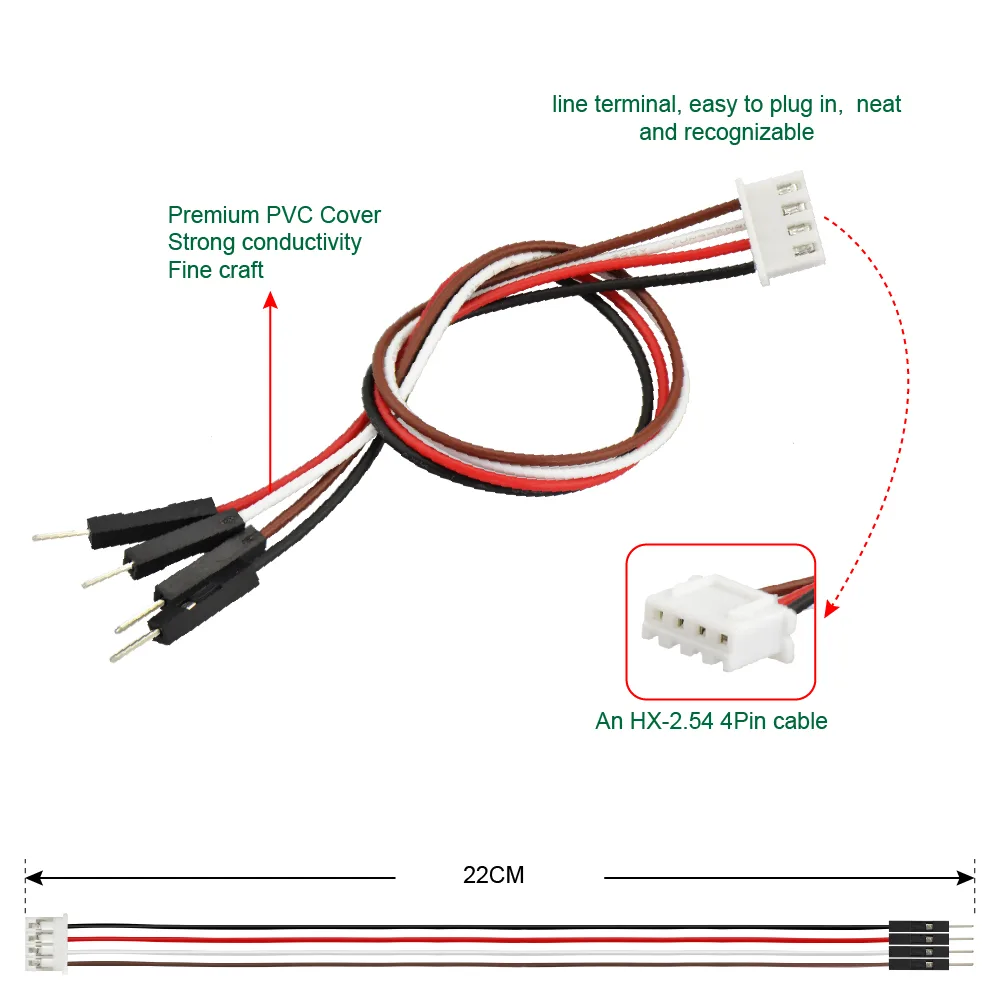

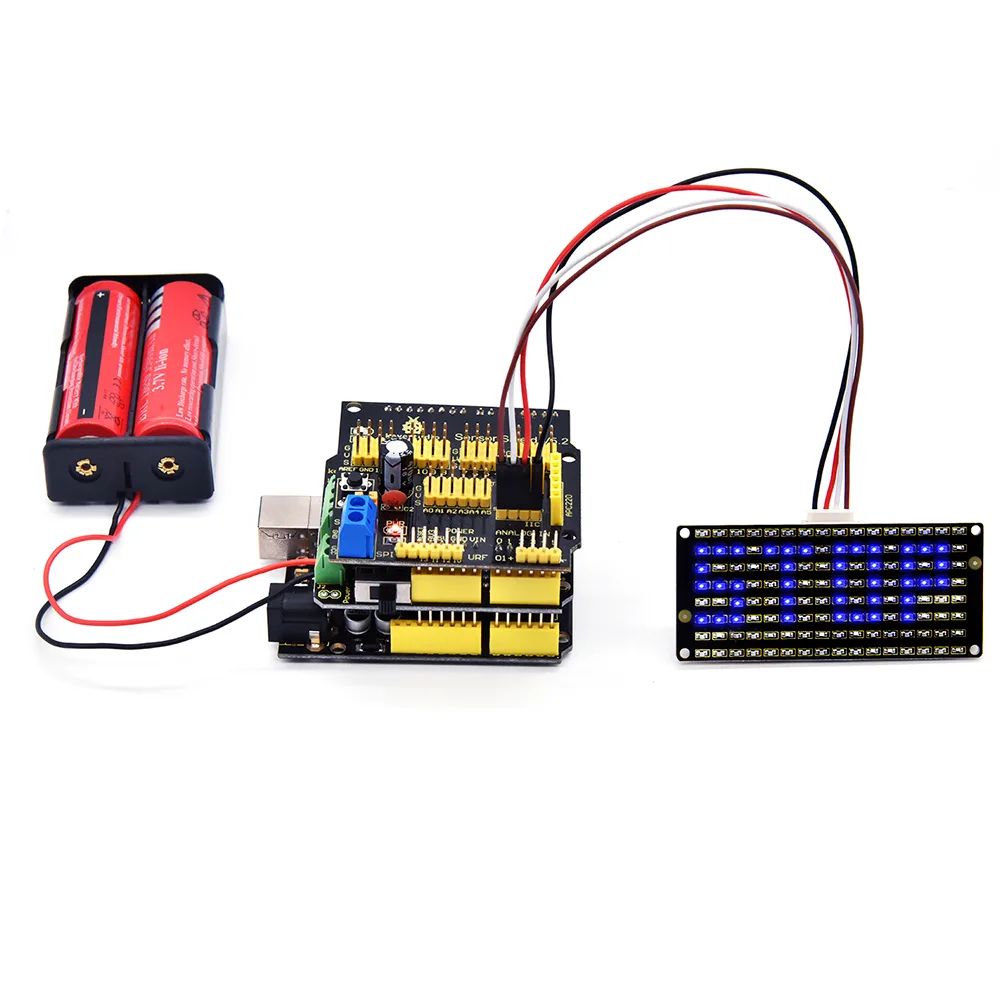

Included connection cable

The package comes complete with an HX-2.54 4-pin cable. This ensures hassle-free, solderless connection to your development board.

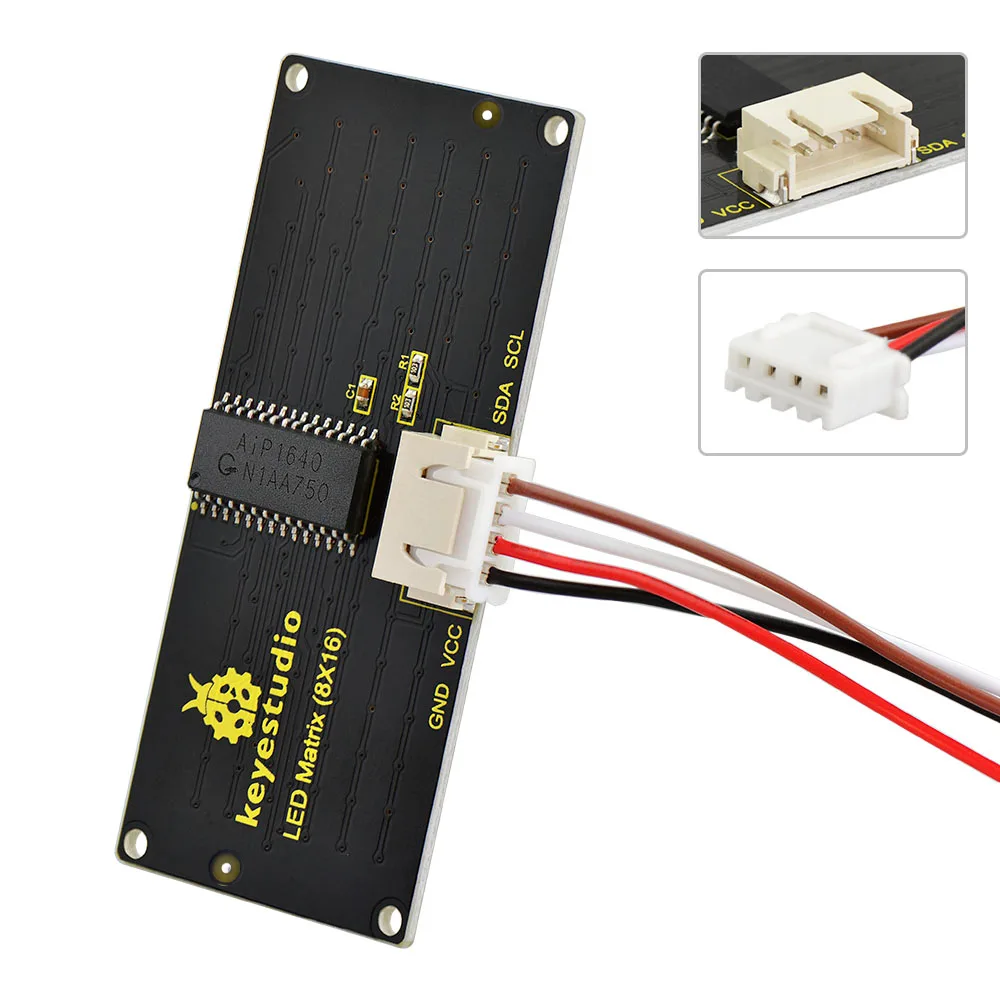

Secure mechanical mounting

Four 2.2mm fixed mounting holes are positioned on the corners of the board. These holes allow you to easily and securely mount the matrix onto robots, smart home devices, or custom enclosures.
