KEYESTUDIO 5 Megapixels 1080p Mini Camera Video Module for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3

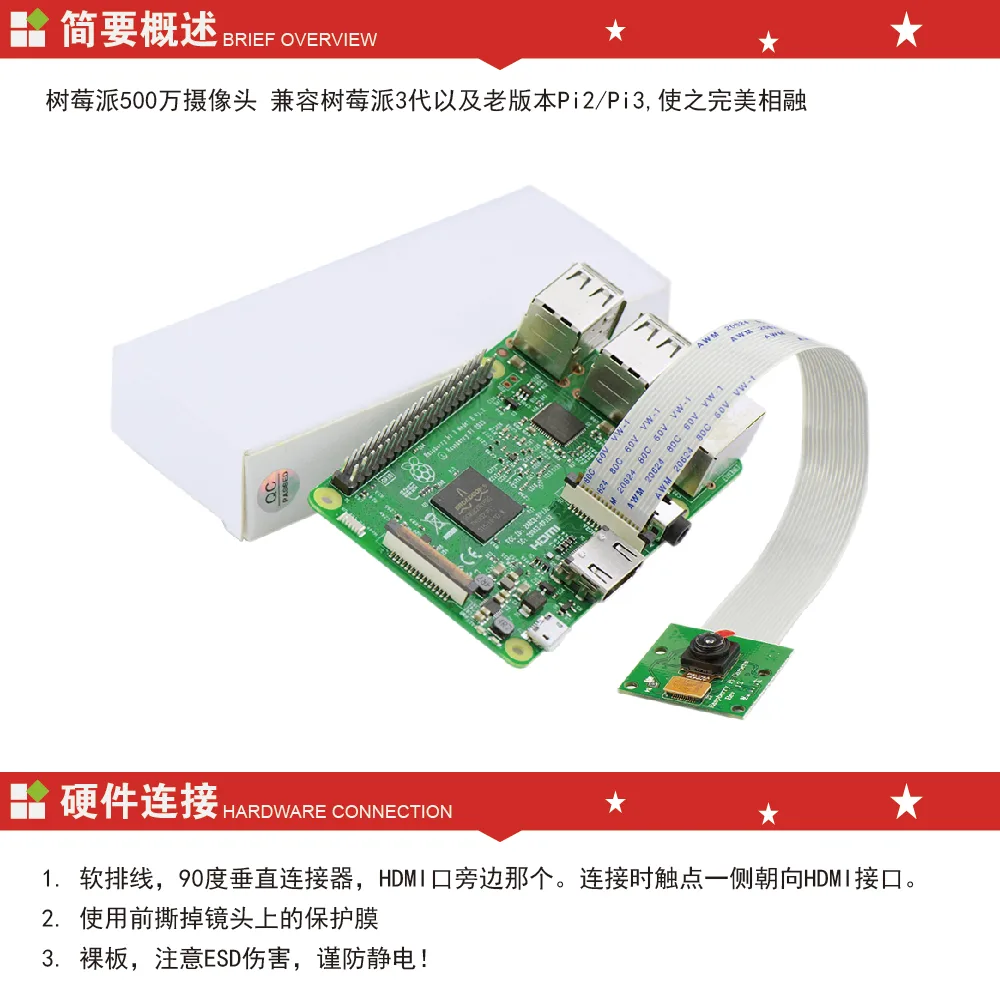

The Keyestudio 5 Megapixel Mini Camera Video Module is a compact imaging solution designed specifically for Raspberry Pi Model A/B/B+, Pi 2, and Pi 3 boards. It is perfect for students, makers, and hobbyists looking to integrate high-definition video capture and photography into their coding and robotics projects.

High-definition OmniVision sensor

This module features an OmniVision OV5647 colour CMOS QSXGA sensor, delivering crisp 5-megapixel images with a maximum pixel count of 2592 x 1944. The 1/4-inch format sensor utilises 1.4 x 1.4 um pixels to capture clear, detailed photos.

Versatile video recording capabilities

Capture smooth high-definition video at 1080p resolution at 30 frames per second using the H.264 (AVC) codec. For high-speed motion tracking or slow-motion applications, the camera can also record up to 90 frames per second at VGA resolution.

Optimised fixed-focus optics

The camera is equipped with an f=3.6 mm lens with an aperture of f/2.9, offering a 35 mm full-frame SLR lens equivalent. It features a fixed focus range from 1 metre to infinity, ensuring reliable clarity for mid- to long-range monitoring.

Wide field of view

With a 65-degree field of view and an angle of view measuring 54 x 41 degrees, this module captures a broad perspective. At a distance of 2 metres, it provides a generous field of view measuring 2.0 x 1.33 metres.
