Description
The Keyestudio 328 PLUS Control Board is an upgraded, Arduino Uno-compatible development board designed for students, educators, and makers. Featuring an ATmega328P microcontroller and a reliable CH340C USB-to-serial chip, it provides a stable and versatile foundation for your physical computing and robotics projects.
ATmega328P microcontroller core
At the heart of this board is the ATmega328P microcontroller, running at a clock speed of 16MHz. It features 32 KB of flash memory, 2 KB of SRAM, and 1 KB of EEPROM to handle your custom sketches and control logic.
Flexible power options
The board operates at a standard 5V working voltage and can accept external DC power from 6V to 15V, with 9V recommended. The onboard 3.3V port supports a maximum output capability of 150 mA to power external sensors and modules.

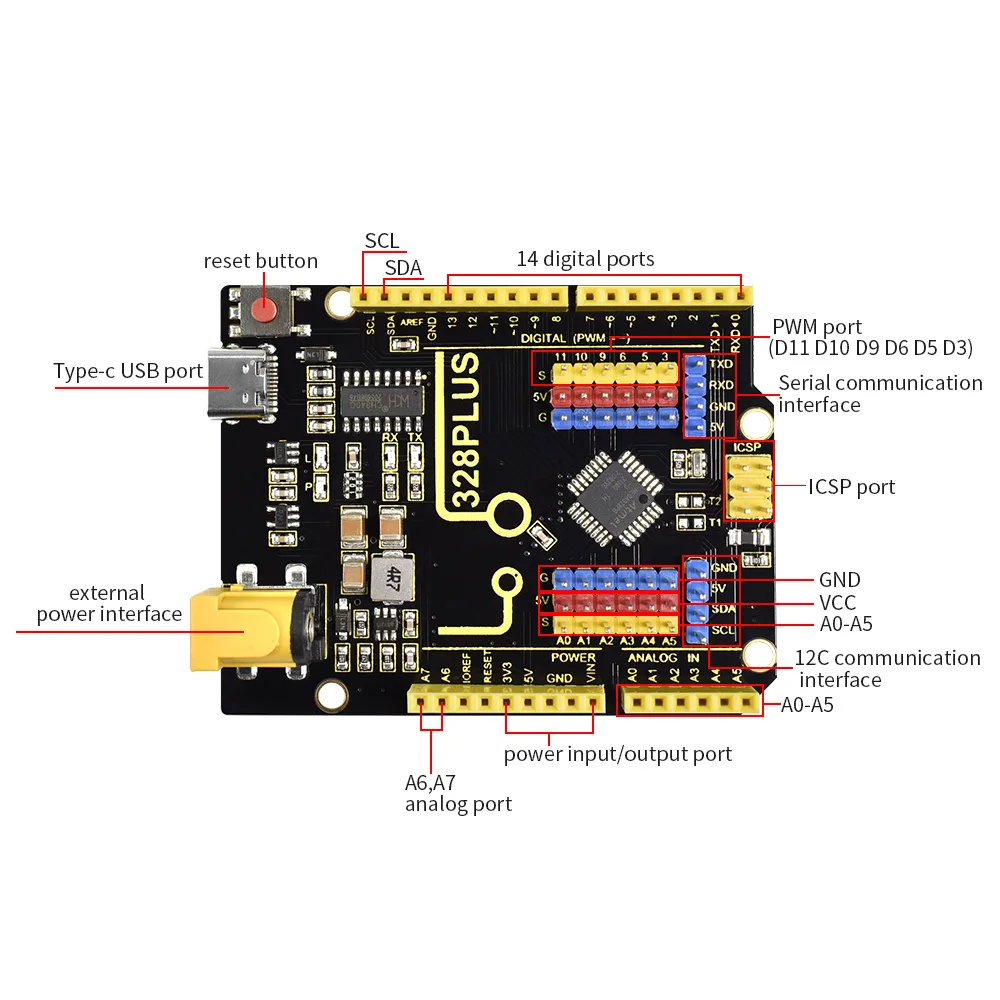

Versatile digital and analogue pins
Expand your projects with 14 digital input/output pins and 8 analogue input channels, with each I/O port supporting a DC output capability of 10 mA. Six of the digital pins can be configured as PWM outputs, giving you precise control over motors, servos, and LEDs.
Reliable CH340C USB interface
Programming and serial communication are handled by the onboard CH340C USB-to-serial chip. This ensures a stable connection to your computer for easy code uploads and debugging.
Integrated status LED
An onboard LED connected to digital pin D13 allows for quick troubleshooting and visual feedback. This makes it easy to run basic blink tests and verify your board is functioning correctly without external components.
