Keyestudio 2.8 Inch 240*320 TFT LCD Shield for arduino UNO R3

This 2.8-inch TFT LCD shield is a versatile touchscreen display designed to stack directly onto your Arduino UNO R3. Featuring a responsive resistive touchscreen and a built-in microSD card slot, it is ideal for students, makers, and hobbyists looking to add interactive visual interfaces to their projects.

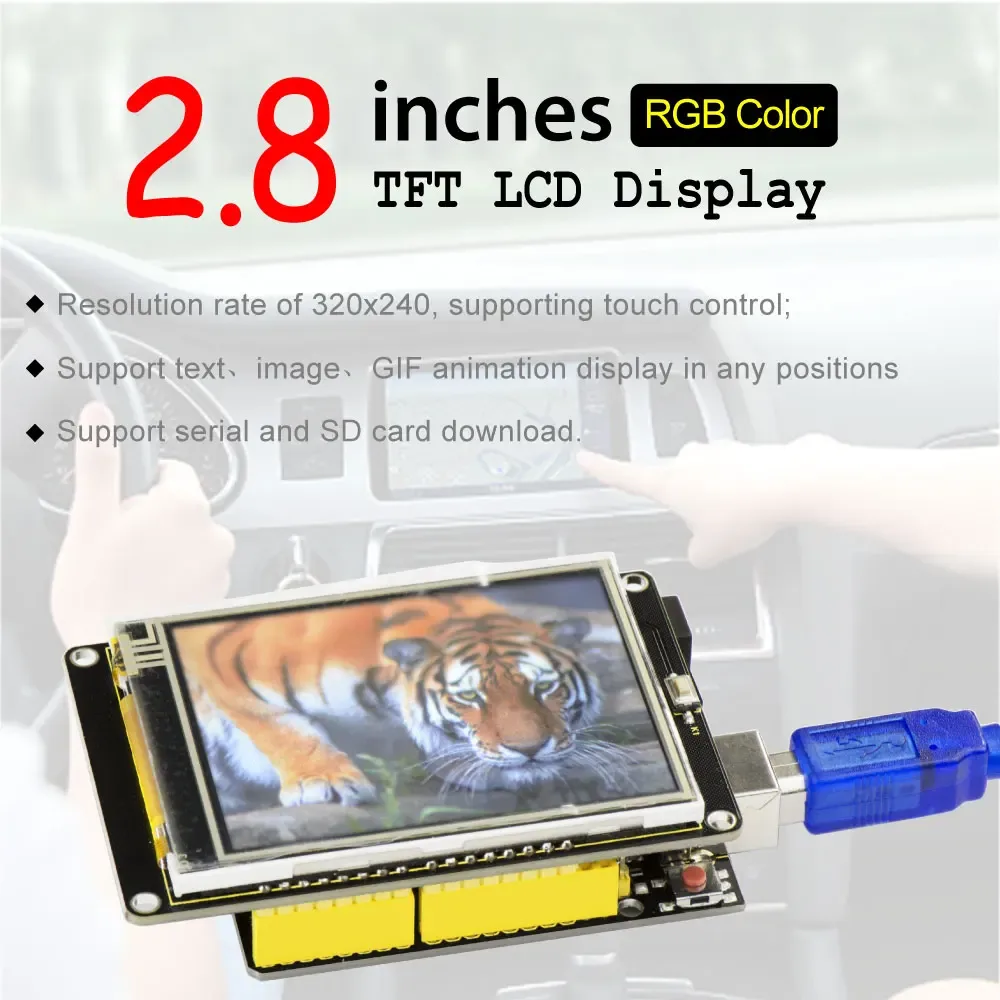

Vibrant transmissive TFT display

The shield features a 2.8-inch transmissive dot matrix LCD screen with a 240x320 resolution and individual RGB pixel control. Driven by the reliable ILI9325 chip, it offers a clear 12:00 o'clock viewing angle and a bright white backlight.

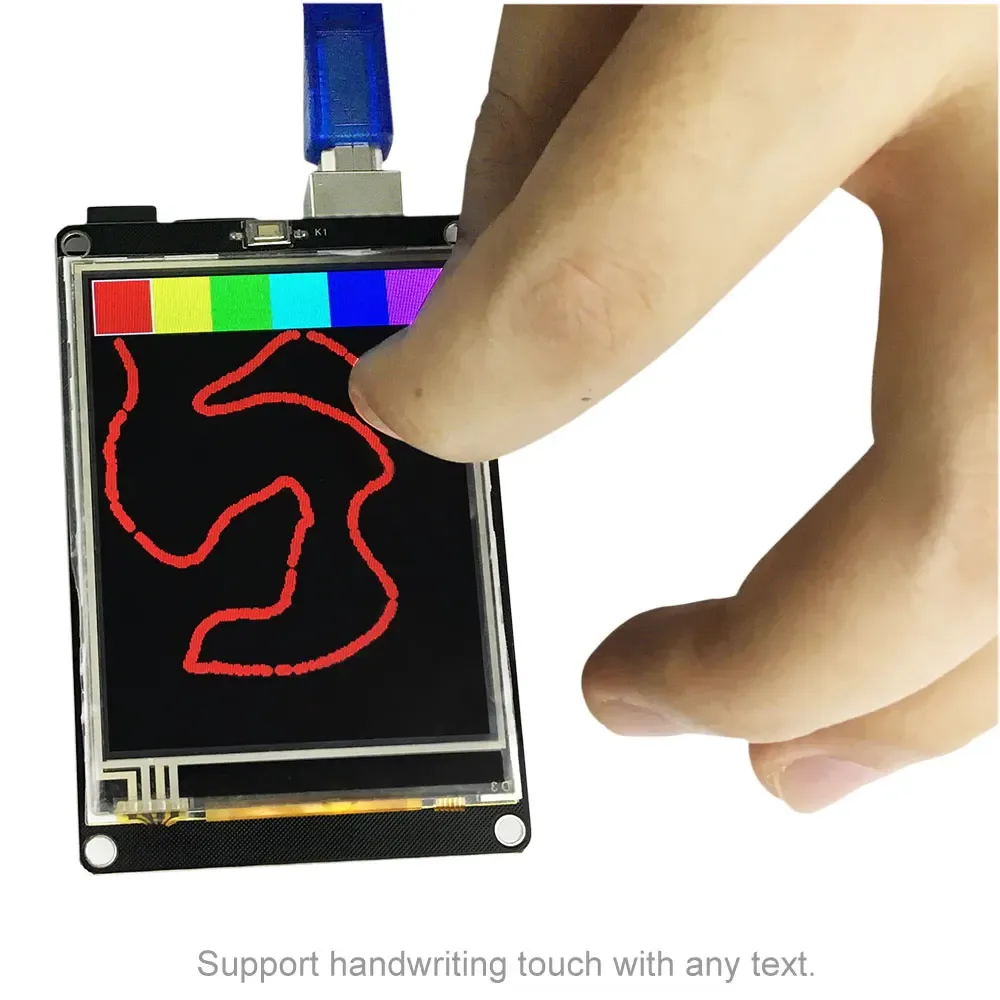

Integrated resistive touch panel

A resistive touchscreen is pre-attached to the display, allowing your Arduino projects to detect finger presses anywhere on the screen. This makes it easy to build custom buttons, sliders, and interactive user interfaces.

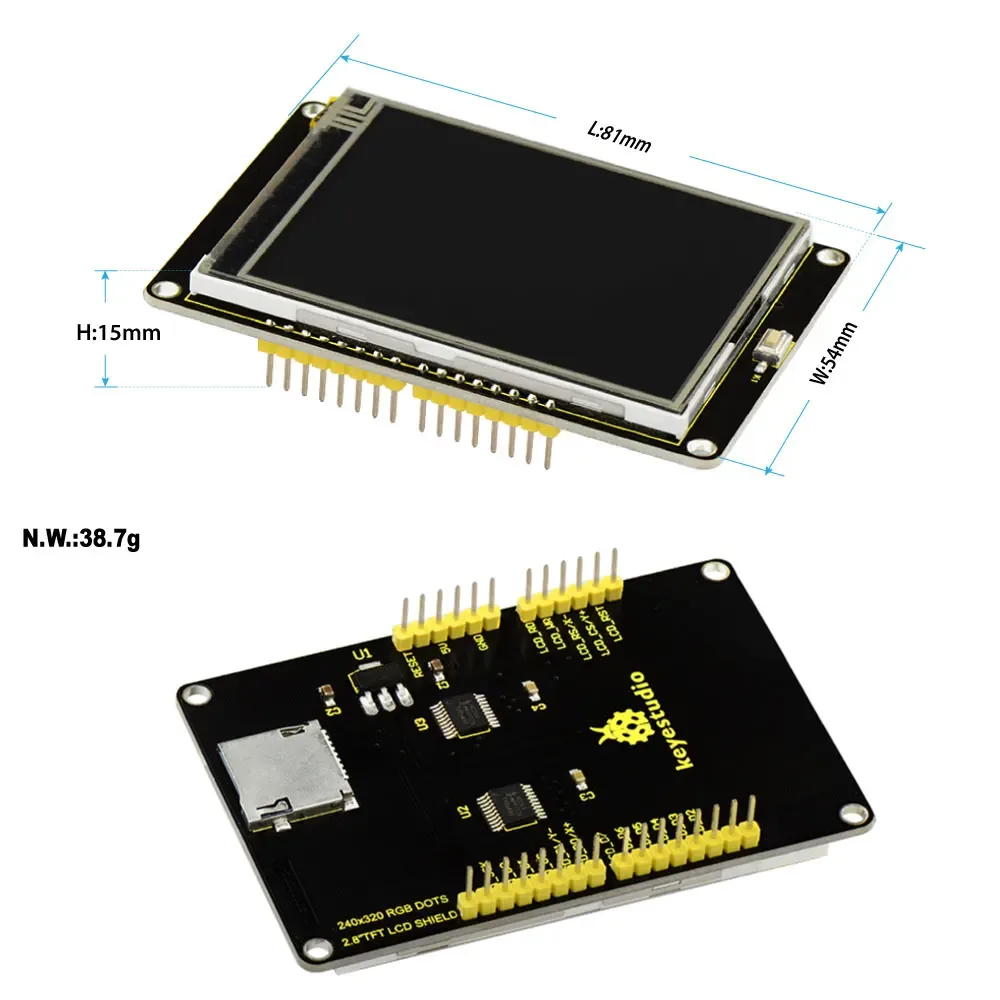

Seamless Arduino UNO integration

Designed specifically for the Arduino UNO R3, this shield stacks directly onto your development board for simple, wire-free setup. It operates on a DC 5V power supply with a logic voltage of 2.8V to 3.3V.

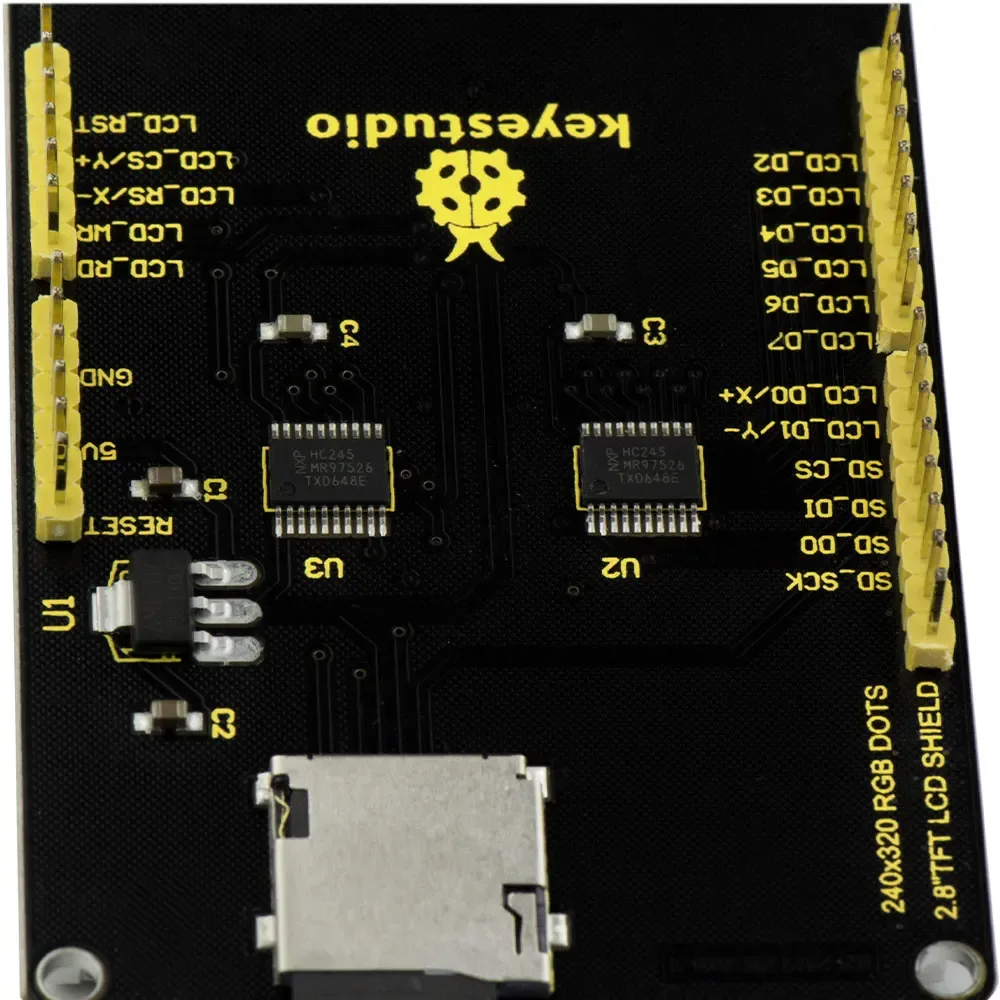

MicroSD storage and reset button

The back of the shield features a built-in microSD card socket for storing images, icons, and data logs. A convenient physical reset button marked K1 is also accessible on the board.

Efficient eight bit bus interface

The shield uses an 80-system 8/16-bit bus interface running in 8-bit bus mode for data transfer. This ensures responsive screen updates and smooth transitions when rendering graphics.
