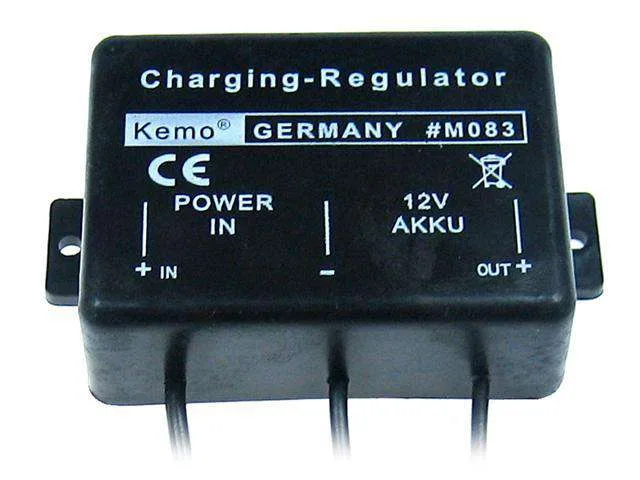

Kemo Electronic M083 12V Battery Charging Regulator Module

The Kemo Electronic M083 is an automatic charging regulator designed to monitor and maintain 12 V battery systems. It automatically initiates charging when voltage drops and switches off once the battery is full, preventing overcharging. It is an ideal power management solution for makers and hobbyists working with solar setups, alarm backup systems, and caravans.

Automatic charge supervision

The module continuously monitors the charge state of a 12 V battery, automatically starting charge cycles whenever a voltage drop occurs. Charging is automatically interrupted once the battery voltage reaches approximately 13.8 to 14.2 V/DC, safeguarding against overcharging.

Flexible input and integrated protection

Operating from a 16 to 20 V/DC input via solar panels or standard power supplies, it supplies a regulated charging current from 0 to 1.5 A based on battery condition. The module is also short-circuit and reverse-current proof for safe and reliable power management.

Typical applications

This compact module is well suited for keeping batteries constantly charged in alarm systems, holiday homes, caravans, and small off-grid solar installations.
