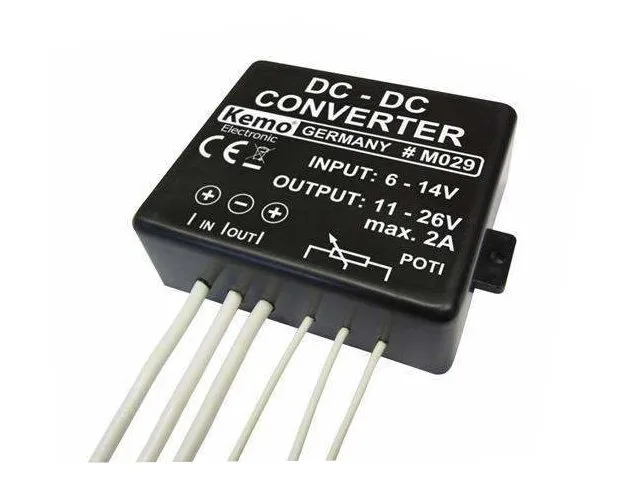

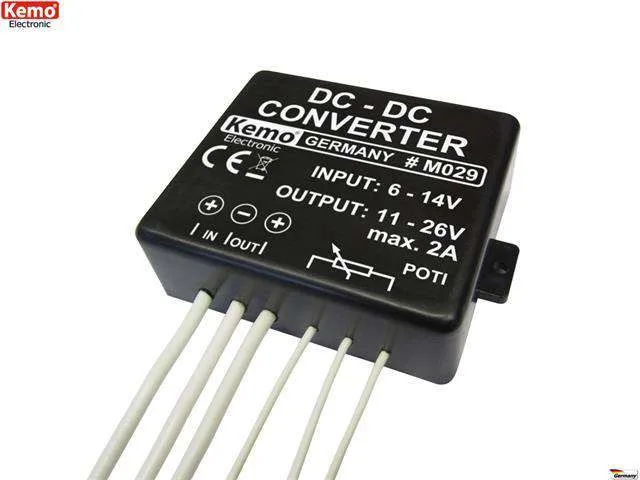

Kemo Electronic M029 DC/DC Step-Up Converter Module, 6-14V to 11-26V 2A

The Kemo Electronic M029 is an electronically controllable DC/DC step-up voltage converter designed to boost low direct current supply rails. It converts an input voltage between 6 V and 14 V into an output ranging from 11 V to 26 V at up to 2 A. It is well suited for makers, students, and hobbyists needing to step up battery or power supply lines in DIY electronics projects.

Step-up voltage conversion

The module transforms a low direct-current input voltage into an output voltage that is nearly twice as high. The actual output voltage naturally decreases as the connected electrical load increases.

Optional output limiting

When operating with input voltages above 10 V, the output voltage can be limited towards higher rates by connecting an additional 4.7 k linear potentiometer.

Physical dimensions

The converter measures approximately 70 x 60 x 23 mm, excluding its integrated fastening straps for easy mounting.
