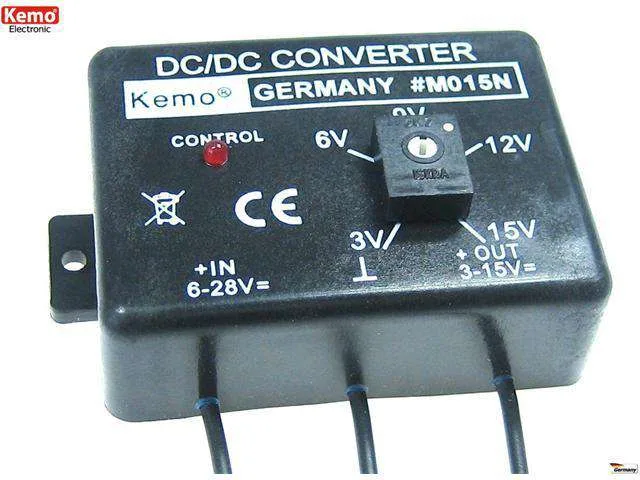

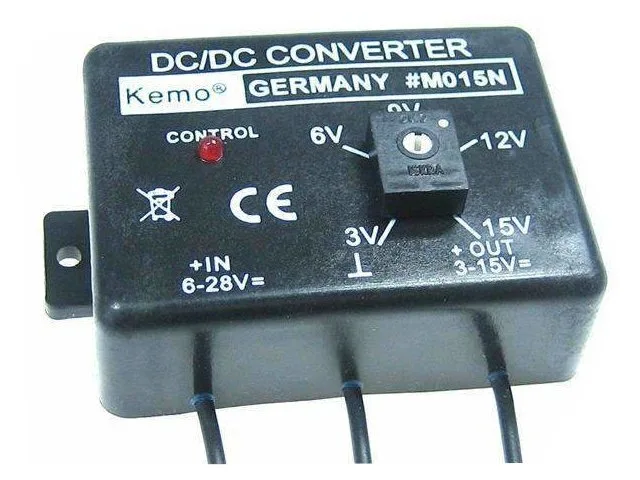

Kemo Electronic M015N Adjustable DC-DC Converter, 1.5 A

The Kemo Electronic M015N is an adjustable DC-DC step-down converter that produces a stabilised output between 3 V and 15 V DC from a 6 V to 28 V DC supply. Delivering up to 1.5 A of current with built-in short-circuit protection, it is ideal for hobbyists, makers, and students powering lower-voltage circuits from 12 V or 24 V battery sources.

Adjustable and stabilised output

The module steps down input voltages ranging from 6 V to 28 V DC to an electronically stabilised output of 3 V to 15 V DC. For proper operation, the input voltage must remain at least 3 V higher than the selected output voltage.

Current capacity and thermal performance

It provides a maximum output current of 1.5 A and includes short-circuit protection. The converter handles approximately 3 W of power dissipation on its own, which increases up to roughly 10 W when fitted with an external heat sink.

Compact form factor and uses

Measuring approximately 60 x 45 x 20 mm excluding fastening straps, this unit is well-suited for running lower-voltage electronics and automotive projects directly from 12 V or 24 V car batteries and fixed power supplies.
