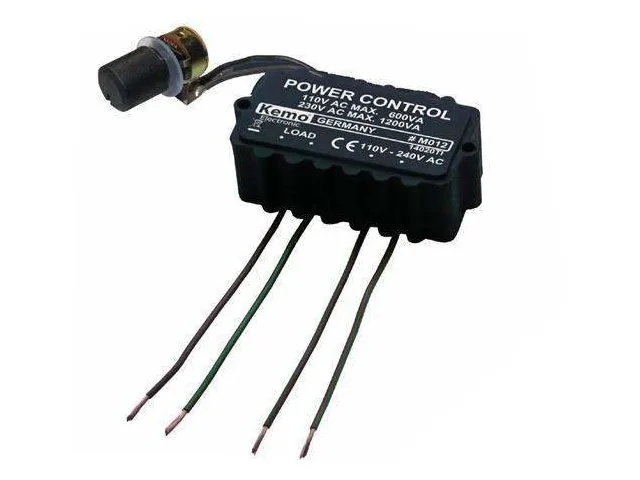

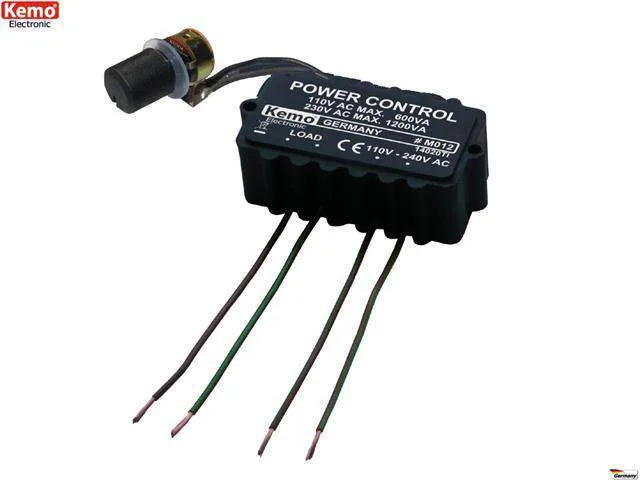

Kemo Electronic M012 Power Controller Module, 110–240 V AC, 1200 VA

The Kemo Electronic M012 is an AC power controller module designed to regulate mains-powered electrical equipment using a rotary potentiometer. It handles operating voltages between 110 V and 240 V AC, providing variable control over both ohmic and inductive loads. This compact module suits makers, hobbyists and workshop environments requiring reliable speed or heat adjustment.

Versatile load regulation

The module regulates appliances such as incandescent lamps, heating elements and hand drills. It supports both ohmic and inductive loads over an operating frequency of 50 to 60 Hz.

Power and duty cycle ratings

It accommodates a continuous current of 3 A at 100% duty cycle, and up to 6 A for a maximum of 3 minutes at a 20% duty cycle. This delivers a maximum power rating of up to 1200 VA at 230 V AC or 600 VA at 110 V AC.

Control and form factor

Adjustment is achieved smoothly using a rotary potentiometer. The unit features compact dimensions of approximately 70 x 36 x 23 mm and is rated for operating temperatures from -30 °C to +60 °C.
