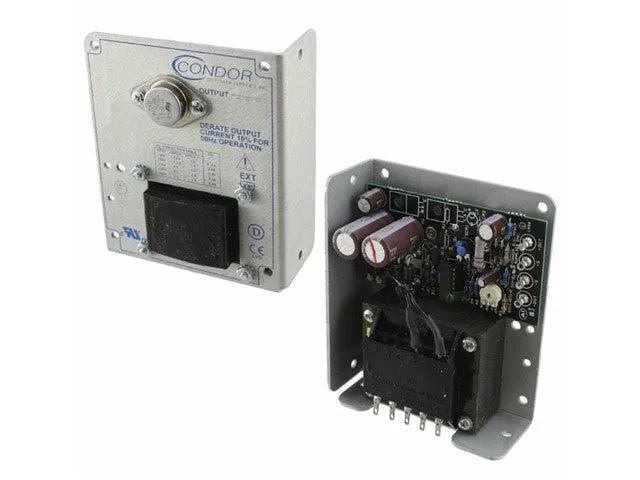

HB5-3-OV-A+ 5V 3A 15W Linear Power Supply
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This 5V 3A linear power supply provides a reliable 15W single-channel DC output for sensitive electronics and commercial equipment. Equipped with universal AC input, adjustable output, and remote sense capabilities, it is ideal for makers, electronics workstations, and prototyping setups requiring low-noise regulated power. The chassis-mount frame allows straightforward integration into custom housings and project enclosures.
Regulated linear output
The module delivers a single regulated 5V DC output with a maximum current of 3A and a continuous power rating of 15W. Its linear architecture ensures clean voltage delivery for commercial and ITE hardware applications.
Universal input and remote sensing
It operates on a wide input range of 100 to 240 VAC to accommodate international power sources. Onboard features include remote sense functionality and adjustable output voltage control.
Chassis mounting and physical build
Measuring 124.0mm x 101.6mm x 41.4mm (4.88 x 4.00 x 1.63 inches), the supply is formatted for secure chassis mounting. It is certified by CE, cURus, and TUV, operating reliably between 0°C and 70°C with standard derating.
Specifications
| Type | Linear |
| Number of Outputs | 1 |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 5V |
| Current - Output 1 | 3 A |
| Power (Watts) | 15W |
| Applications | ITE (Commercial) |
| Efficiency | 45% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size Dimension | 4.88" L x 4.00" W x 1.63" H (124.0mm x 101.6mm x 41.4mm) |
| Approval Agency | CE, cURus, TUV |
| Device | Power Supply |
