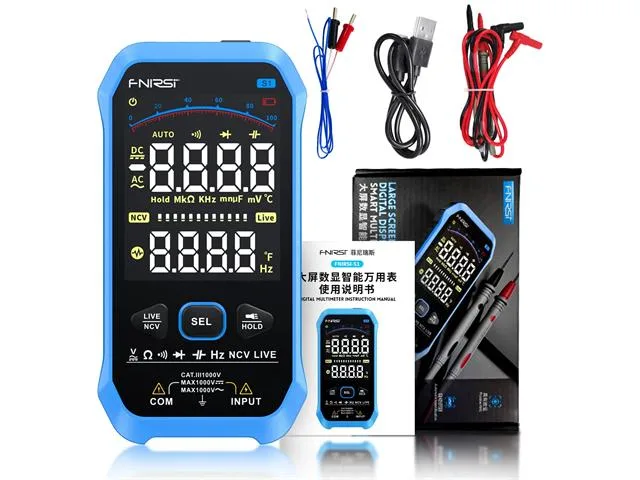

FNIRSI S1 Smart Digital Multimeter with Colour Display
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The FNIRSI S1 is a compact, rechargeable smart digital multimeter featuring a high-definition VA colour screen with a 9999-count dual display. It accurately measures AC and DC voltage up to 1000V, resistance, capacitance, frequency, temperature, continuity, and live wires with intelligent auto-ranging and anti-burn protection. It is an ideal diagnostic tool for students, electronics hobbyists, makers, and automotive technicians.
Smart measurement features
The meter features automatic function identification and auto-ranging to effortlessly measure AC and DC voltages up to 1000V, resistance up to 100MΩ, and capacitance up to 10mF. Additional capabilities include non-contact voltage (NCV) sensing, live wire detection, diode testing, and an audible continuity buzzer.
Display and build
Readings are presented on a high-clarity VA colour dual display with analogue bar representation, low voltage warnings, and data hold. Built from durable ABS material, the slim 135g housing also integrates a handy flashlight for working in dark enclosures.

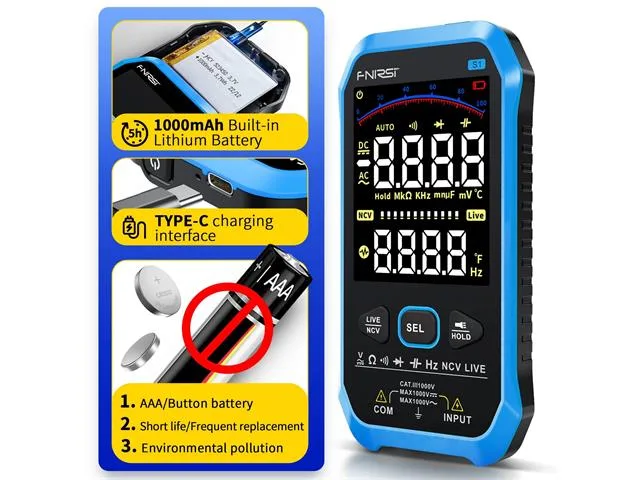

Rechargeable power
An integrated 1000mAh lithium battery delivers portable power without requiring disposable cells. The meter charges conveniently via USB-C from any standard 5V USB charger, computer port, or power bank.
Practical applications
This multi-function tester is well suited for troubleshooting household wiring, fuses, charging systems, and vehicle electronics. It provides a safe and dependable instrument for maker workshops, educational labs, and everyday repair tasks.
Downloads
Specifications
| AC voltage | 0~1000 V ±(0.8% +3) |
| DC voltage | 0~1000 V ±(0.8% +3) |
| Resistance | 0~100 MΩ ±(1.2% +3) |
| Capacitance | 0 nF~10 mF ±(4.5% +5) |
| Frequency | 0 Hz~10 Mhz ±(0.1% +3) |
| Temperature | −20~1000°C ±(2% +5) |
| Diode | Yes |
| Automatic OFF | Yes |
| Lighting | Yes |
| On-off buzzer | Yes |
| Auto range | Yes |
| NCV induced voltage | Yes |
| Live mode | Yes |
| Data hold | Yes |
| Analog | Yes |
| Low voltage indication | Yes |
| Max range | 9999 counts |
| Valid value | 50 Hz~1 kHz |
| Material | ABS |
| Display | VA color screen |
| Power supply | via USB-C (1000 mA rechargeable lithium battery) |
| Dimensions | 143 x 75 x 19 mm |
| Weight | 135 g |
| Device | Multimeter |
| Type | Large Screen | LCD | Dual Display | Smart |
| Max display | 9999 counts |
| Diode test | Yes |
