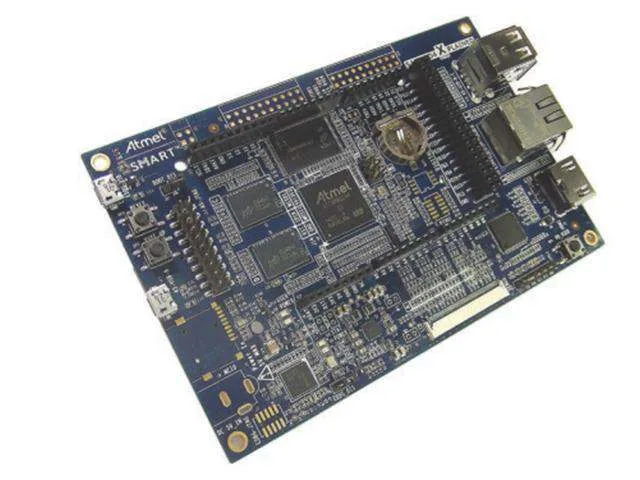

Embest Atmel SAMA5D4 Xplained Ultra Evaluation Board
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

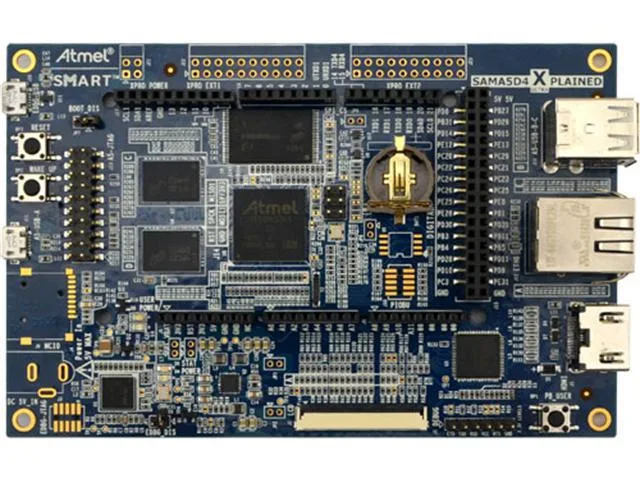

The Atmel SAMA5D4 Xplained Ultra demo board is a rapid prototyping and evaluation platform built around the ARM Cortex-A5 microprocessor. It features rich multimedia, storage, and networking interfaces with support for Linux, Yocto, and bare-metal C packages. This board is ideal for makers, engineering students, and embedded developers building advanced connected projects.
High-performance processing and memory
Powered by the Atmel SAMA5D44 Cortex-A5 microprocessor, the board includes 512 MB of DDR2 memory and 512 MB of NAND Flash memory for demanding embedded applications. It also embeds an EEPROM programmed with a unique MAC address and serial number.
Comprehensive connectivity and display

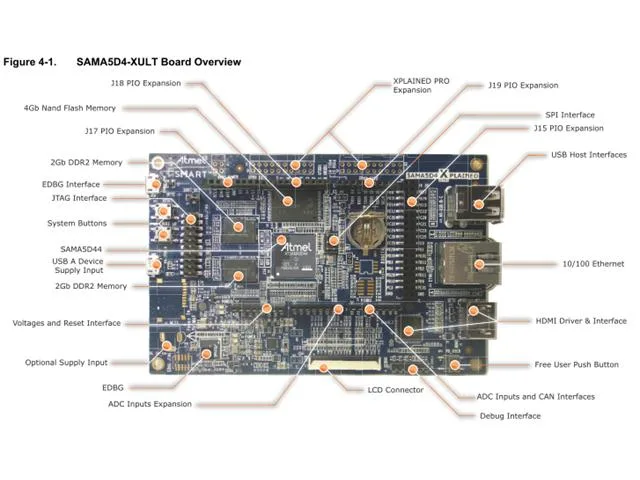

The platform provides an HDMI port, LCD connectors, a 10/100 Ethernet MAC with PHY, and three USB connectors comprising two host ports and one device port. Expansion is straightforward with dual SD/eMMC and MicroSD slots, Arduino R3 shield headers, and Xplained Wing compatibility.
Flexible power and development options
Power can be supplied via the USB Micro-AB connector, an external 5 V 2 A DC adapter via the 2.1 mm power jack, an Arduino shield, or the Embedded Debugger interface. It supports Linux Mainline, Yocto, Linux Kernel 3.10 with LTS, and standalone C development packages.
Package contents
The kit includes one SAMA5D4-XULT evaluation board and one Micro-AB type USB cable.
Downloads
Specifications
| Processor | SAMA5D44 Cortex-A5 Microprocessor |
| RAM | 512MBytes DDR2 |
| Flash Memory | 512MBytes NAND Flash |
| Input Voltage | 5 VCC |
| Maximum Input Voltage | 6 VCC |
| I/O Voltage | 3.3V only |
| Max DC 3.3V Current Available | 1.2A |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0 to 90% (non-condensing) |
| Dimensions | 135 × 88 × 20 mm |
| RoHS Status | Compliant |
