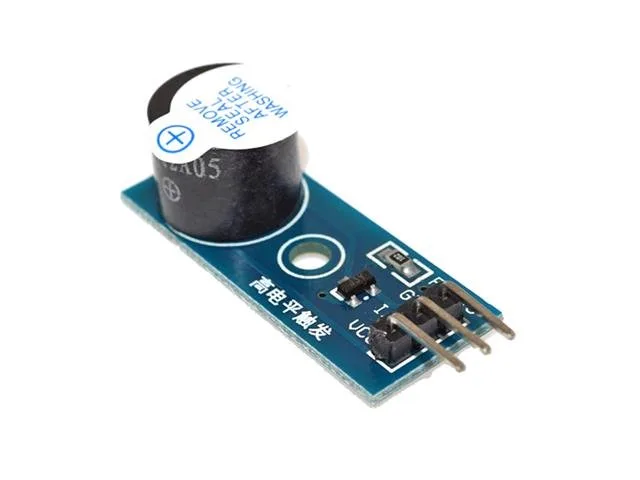

Electronic Buzzer Breakout Board, 3.3–5V, 3-Pin
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This electronic buzzer breakout board is a compact audio module designed to produce sound alerts and tones in electronics projects. Controlled via an onboard 9012 transistor, it generates sound when supplied with a square wave signal from a microcontroller. It is well suited to students, educators, and makers adding audio indicators or alarms to their builds.
Transistor-driven audio control
The module includes an onboard 9012 transistor to drive the buzzer element. It requires an external square wave frequency between 2 kHz and 5 kHz from a single-chip microcomputer or microcontroller I/O pin to generate tones.
Power and pin interface

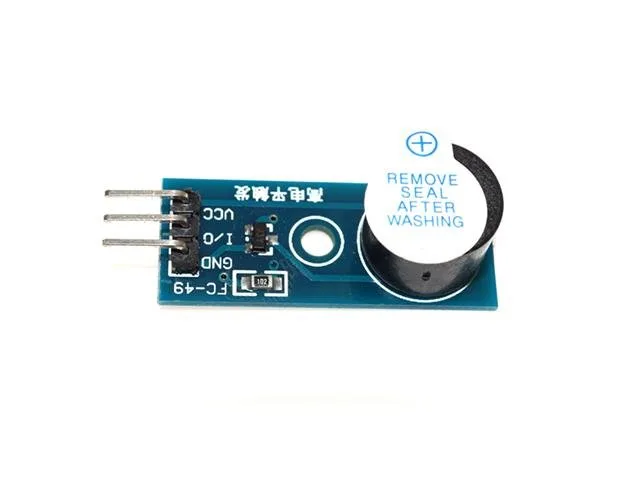

Operating at a working voltage of 3.3V to 5V, the breakout board features a straightforward 3-pin interface. The connections consist of VCC (3.3V to 5V), GND (ground), and I/O for the control signal.
Compact layout and mounting

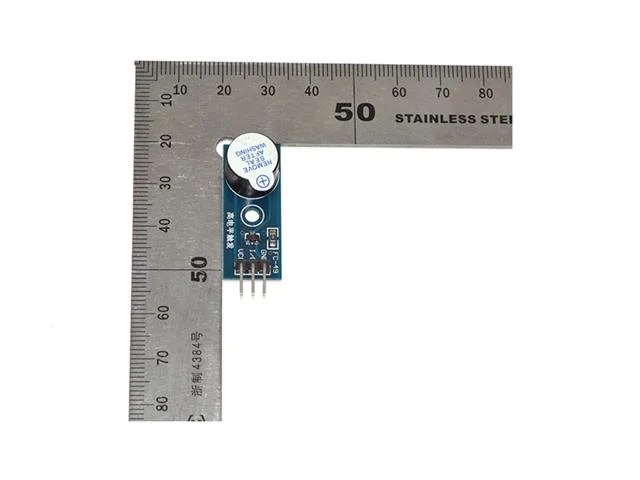

The PCB measures 3.3 cm by 1.3 cm, making it easy to incorporate into small enclosures. It also includes an integrated bolt hole for simple and secure assembly.
Specifications
| Device | Breakout Board |
| Type | Electronic | Buzzer |
| Work Voltage | 3.3-5V |
| Drive Component | Audion 9012 drive |
| Drive Signal Requirement | Square wave (frequency 2K-5K) |
| PCB Dimension | 3.3cm x 1.3cm |
| Pin Definition | VCC: 3.3~5V, GND: Ground, I/O: I/O interface of SCM |
