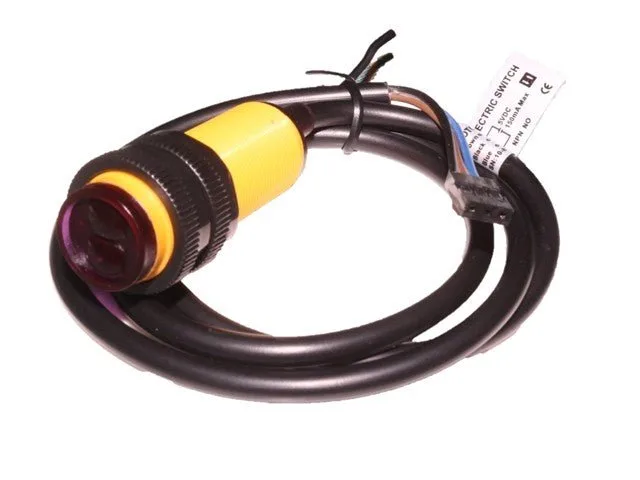

E18-D80NK Adjustable Infrared Photoelectric Sensor, 3–80 cm
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The E18-D80NK is an adjustable infrared obstacle avoidance sensor integrating both a transmitter and receiver in a durable barrel housing. It detects transparent and opaque objects within a 3 cm to 80 cm range and outputs a digital TTL signal. This sensor is ideal for students, hobbyists, and makers building obstacle-avoiding robots or automated counting systems.
Adjustable detection range
The sensor features an adjustable detection distance from 3 cm to 80 cm with a detection angle greater than 15 degrees. It provides reliable non-contact sensing for both transparent and opaque objects while resisting ambient light interference.
Wiring and interface
Connecting the unit is simple using its 45 cm three-wire lead. The brown wire connects to 4.5 V to 5 V power, the blue wire connects to ground (0 V), and the black wire connects to a microcontroller digital input as an NPN normally open TTL output.
Versatile applications
This module is suited for walking maze robots, automatic production line counting, kitchen automation systems, and general security or reminder equipment.
Specifications
| Device | Photoelectric Sensor |
| Type | Adjustable Infrared |
| Model | E18-D80NK |
| Supply voltage (U) | 5VDC (4.5–5V) |
| Current consumption | <25mA |
| Output current | 100mA |
| Output type | NPN normally open |
| Effective distance (Sn) | 3–80cm |
| Point angle | >15° |
| Diameter | 17mm |
| Sensor length | 45mm |
| Lead length | 45cm |
| Working temperature | -25 °C ~ 55 °C |
| Standard detection object | Sunlight <10000LX, incandescent <3000LX |
| Case material | Plastic |
