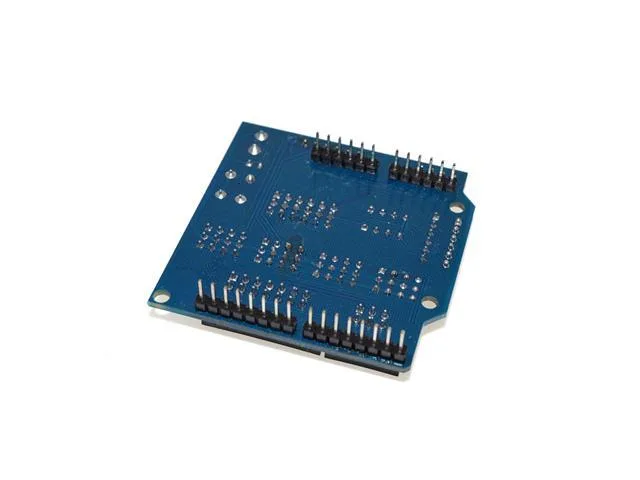

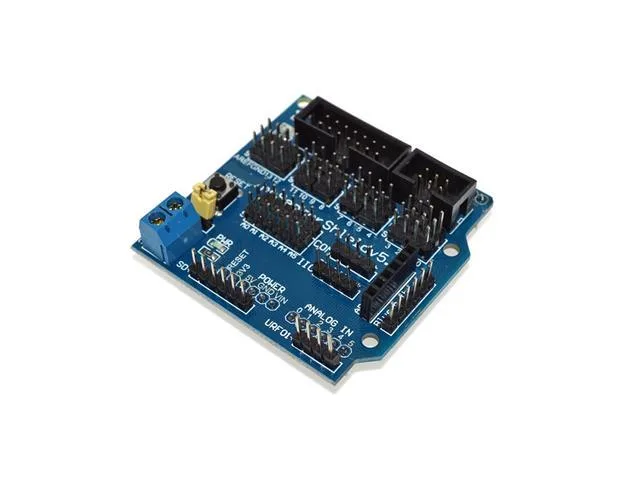

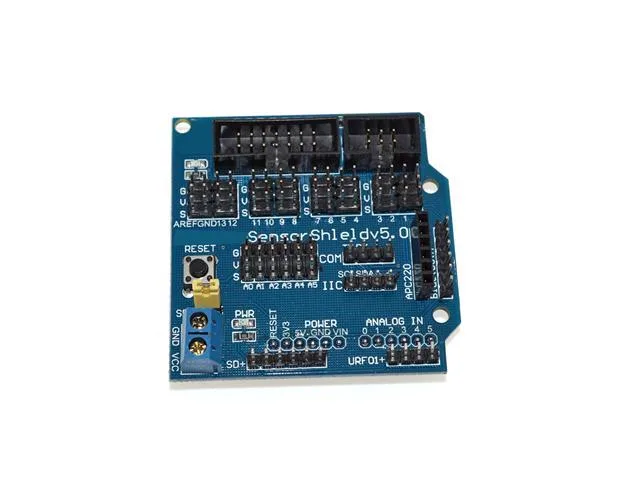

Digital and Analog Sensor I/O Expansion Shield V5.0 for UNO

The V5.0 Sensor I/O Expansion Shield simplifies prototyping by breaking out Arduino UNO pins into dedicated digital and analog headers. It allows makers, educators, and learners to easily connect sensors, servos, relays, and other modules without messy breadboard wiring. With dedicated power, ground, and signal pins for each port, building interactive robotics projects becomes quick and secure.

Effortless sensor integration

The expansion shield provides dedicated buckled ports featuring VCC, GND, and output lines for each functional module. This layout enables rapid plug-and-play connections using standard 2.54mm dual-female cables, keeping your wiring clean and secure.

Wide hardware compatibility

Designed to expand your development board, this shield facilitates direct interfacing with a wide range of external hardware. You can seamlessly connect potentiometers, buttons, relays, servos, and various digital or analog sensors.

Compact and robust design

Featuring a blue and black finish, the shield measures 57 x 57 x 19 mm and weighs just 26 g. Its sturdy layout provides reliable structural support for educational kits and maker builds.

Downloads

• V5 SENSOR IO EXPANSION SHIELD
