Compact ServoBlock™ (Standard Size, H25T Spline, Hub Shaft)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

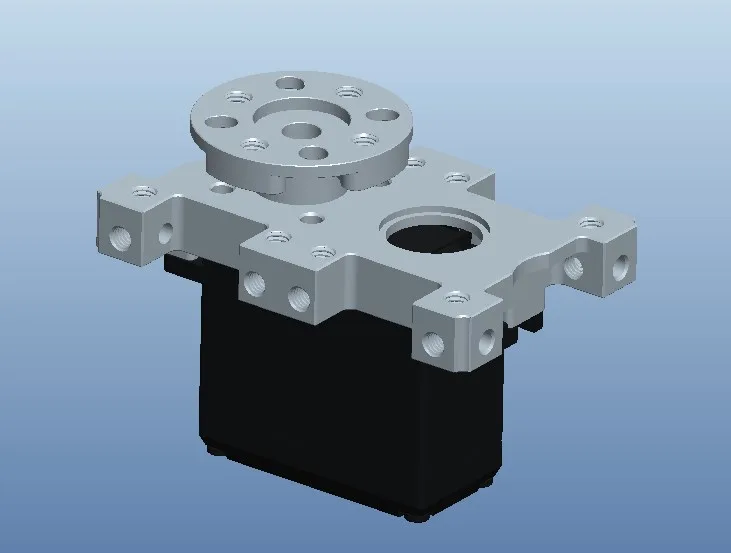

This 25 tooth ServoBlock isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an integrated bearing to support its hub-shaft.
Threaded holes on its face and sides allow for a staggering array of mounting options. Meanwhile, its hub-shaft maintains the Sheen Robotics® 16mm pattern of surrounding structure with thru-holes and threaded holes to provide for easy attachment of almost any Sheen Robotics® component.
And thanks to the 43mm width of this ServoBlock™, you can do more than simply install it inside U-Channel. You can even incorporate 3120 Series U-Channel or 3121 Series Low-Side U-Channel into its structure to build an incredibly robust servo assembly!
It helps that the 14mm diameter protrusion of the integrated pillow block fits into the 14mm diameter holes of U-Channel. Consequently, when you’re using this ServoBlock™ with a Sheen Robotics® 4000 Series Servo, its hub-shaft rises 8mm from the face of channel!

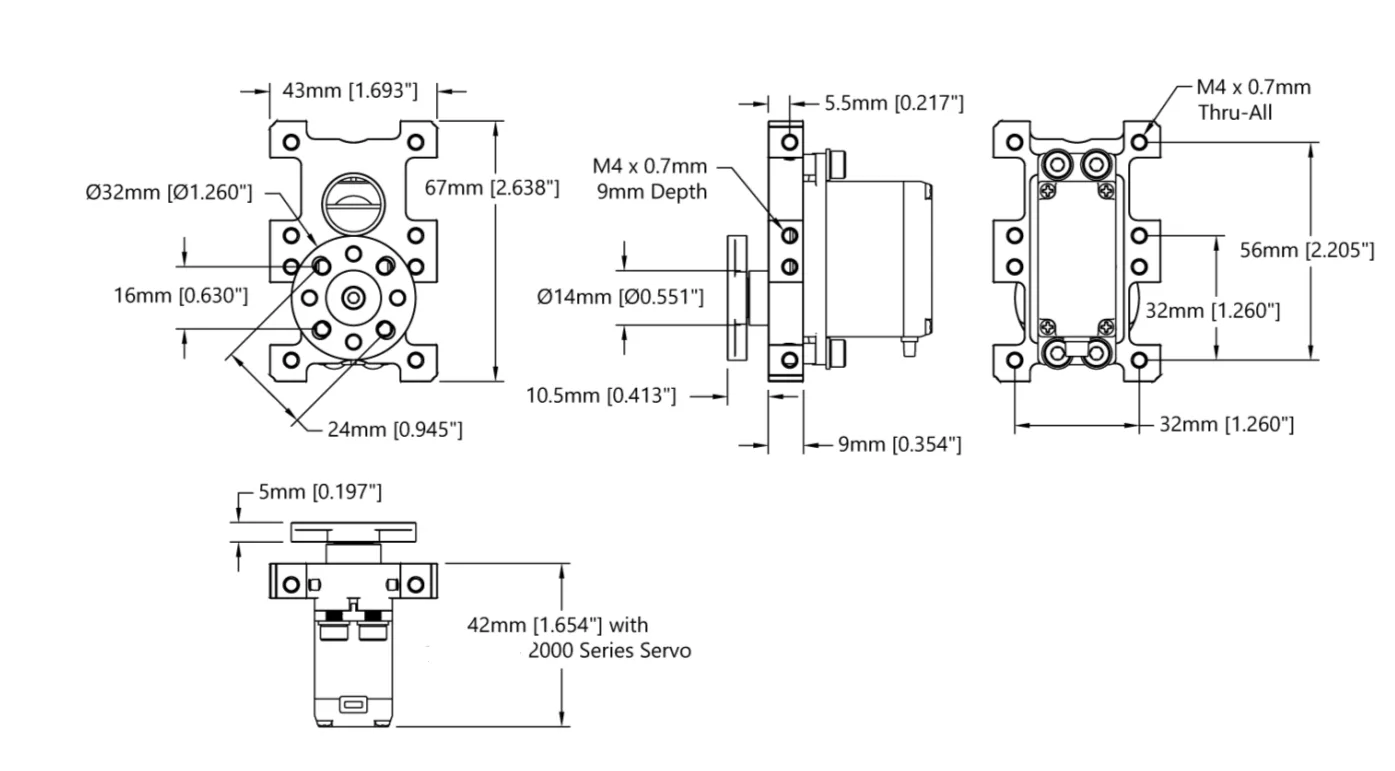

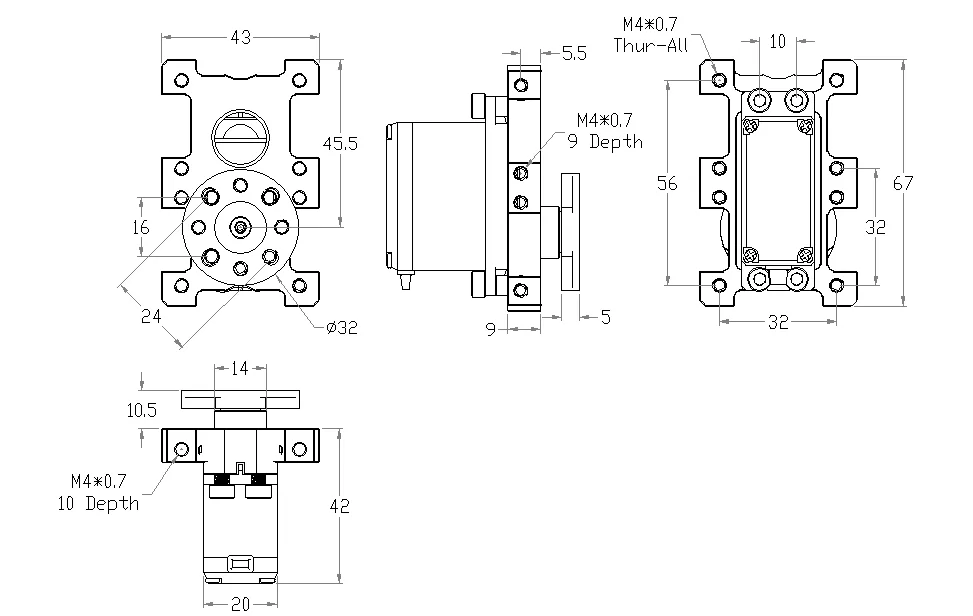

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5217-0001-2501 |
| Weight | 44g |
Reviews
No reviews yet — be the first to review this product.
