Beam End Connector
SKU: ZY-60214
R 91,44Ex Tax: R 79,51
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
60214
Similar to the tee beam connector this internal connector is used to join a beam end to a beam side at a 90-degree angle. Made of metal; requires quick rivets and pegs and a thumbscrew (all sold separately) ,The hole distance is 8mm,the diameter of the large hole is 8.1mm and the diameter of the small hole is 3.8mm,compatible with TETRIX PRIME
What you will get
- Two Beam End Connector
Supplied as a pack of 2.

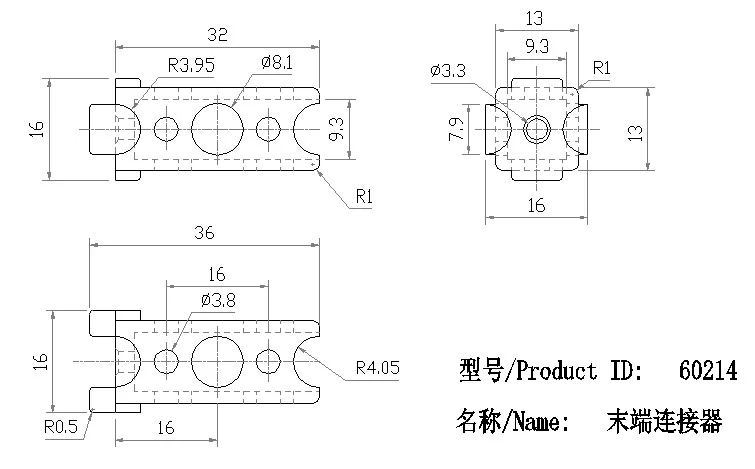

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 60214 |
| Units per pack | 2 |
| Material | metal |
| Nominal Size | 16 mm x 16 mm x 36 mm |
| Weight | 15.1 grams per connector |
| Thickness | 2 mm |
| Note | Threaded for 6-32 screws |
