BBC micro:bit V2.2 Pocket-Sized Codeable Computer Board

The BBC micro:bit V2.2 is a pocket-sized programmable computer designed to make learning to code fun and accessible. Packed with an upgraded Arm Cortex-M4 processor, on-board sensors, and wireless connectivity, it lets you create everything from games and music to robotics projects. It is an ideal development board for students, educators, hobbyists, and makers getting started with electronics and programming.

Upgraded processing and connectivity

Powered by an Arm Cortex-M4 CPU with 512KB of flash memory, the micro:bit V2.2 provides ample performance to store and execute your programmes. It features built-in Bluetooth connectivity and a higher power output of up to 200mA for connected accessories.

Integrated sensors and inputs

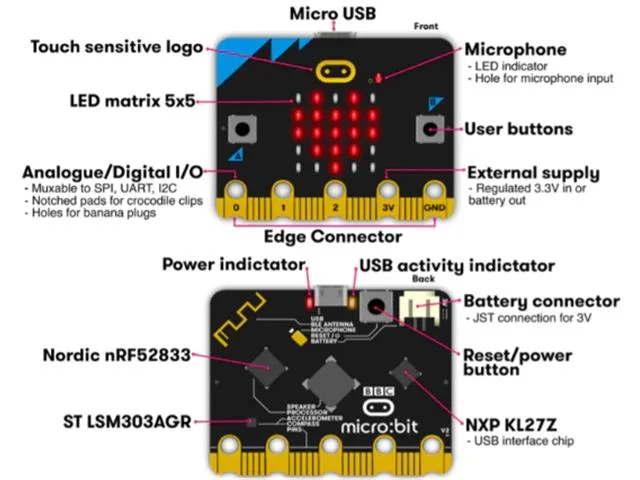

The board features a 5x5 LED matrix display, two user control buttons, and a touch-sensitive logo. Built-in hardware includes an accelerometer, compass, temperature sensor, microphone, and speaker, alongside a sleep and off mode.

Backwards compatibility and connections

The micro:bit V2.2 is fully backwards compatible with previous micro:bit versions, software, and accessories. It includes a 20-pin edge connector featuring refined indentations to prevent crocodile clips from slipping off.

Getting started and programming

Getting started requires only a power source and a PC or mobile device. You can flash your code via a USB cable or wirelessly over Bluetooth, and your programme remains in the on-board flash memory ready to run repeatedly until you upload a new project.

What is included

The package contains one BBC micro:bit V2.2 board in one of four random colours (red, yellow, green, or blue) and a quick start guide.

Downloads

• BBC MICROBIT V2.2 - Data Sheet
