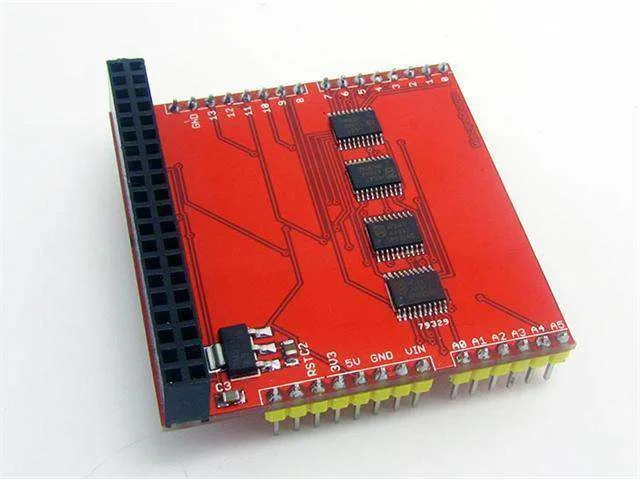

Arduino UNO TFT01 LCD Adapter Shield
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Arduino UNO TFT01 LCD Adapter Shield allows you to connect 3.3 V display modules directly to standard 5 V Arduino boards without manual wiring. Featuring dedicated logic conversion hardware, it provides a stable plug-and-play interface for graphical displays. It is well suited to students, hobbyists, and makers building display-driven microcontroller projects.
Logic level conversion
The shield converts 5 V logic signals to 3.3 V TTL levels to ensure safe communication with 3.3 V display controllers. It uses dedicated 74HC541 logic converter ICs for reliable signal level shifting.
Display compatibility and interface
This shield is designed to support 2.4-inch EDL TFT LCD modules and compatible TFT01 / ITDB02 displays. It operates exclusively in 8-bit mode.
Convenient stacking format
The board stacks directly onto the Arduino UNO headers, allowing compatible LCD modules to mount directly on top. This eliminates loose jumper wires and simplifies project assembly.
Specifications
| Version | For Arduino UNO |
| Display Compatibility | EDL 2.4" TFT LCD (TFT01 / ITDB02 compatible) |
| Operating Mode | 8-bit mode |
| Logic Level Conversion | 5V to 3.3V TTL |
| Logic Converter IC | 74HC541 |
| Weight | 0.02 kg |
