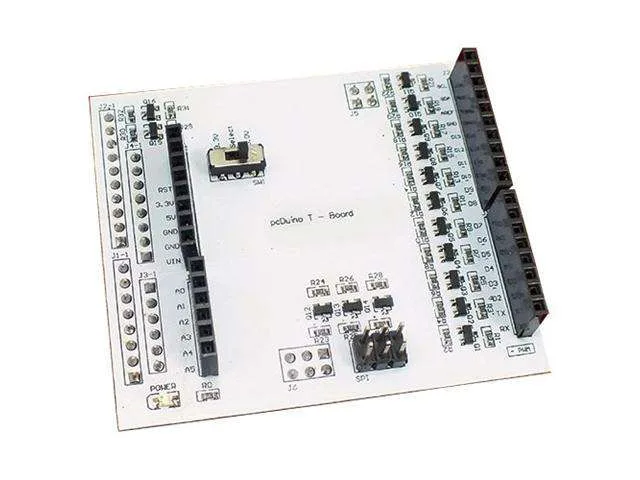

Arduino to pcDuino Translation T-Board with Level Shifter

The Arduino to pcDuino translation T-board bridges existing Arduino shields directly to a pcDuino development board. Featuring an on-board voltage level shifter switch, it enables makers and students to interface both 3.3V and 5V shields seamlessly. It is an essential adapter for hobbyists expanding their pcDuino projects with widely available hardware add-ons.

Arduino shield bridging

This translation board bridges standard Arduino shields for direct use with the pcDuino platform. It allows users to utilise their existing shield ecosystem without custom wiring.

Selectable voltage level shifter

An integrated on-board switch lets you easily select between 3.3V and 5V operation. This ensures proper voltage translation and signal compatibility for your attached shields.

Typical applications

Designed for educational prototyping, hobby electronics, and maker projects that require expanding a pcDuino with standard Arduino shields.

Downloads

• Schematic_pcDuino T Board
