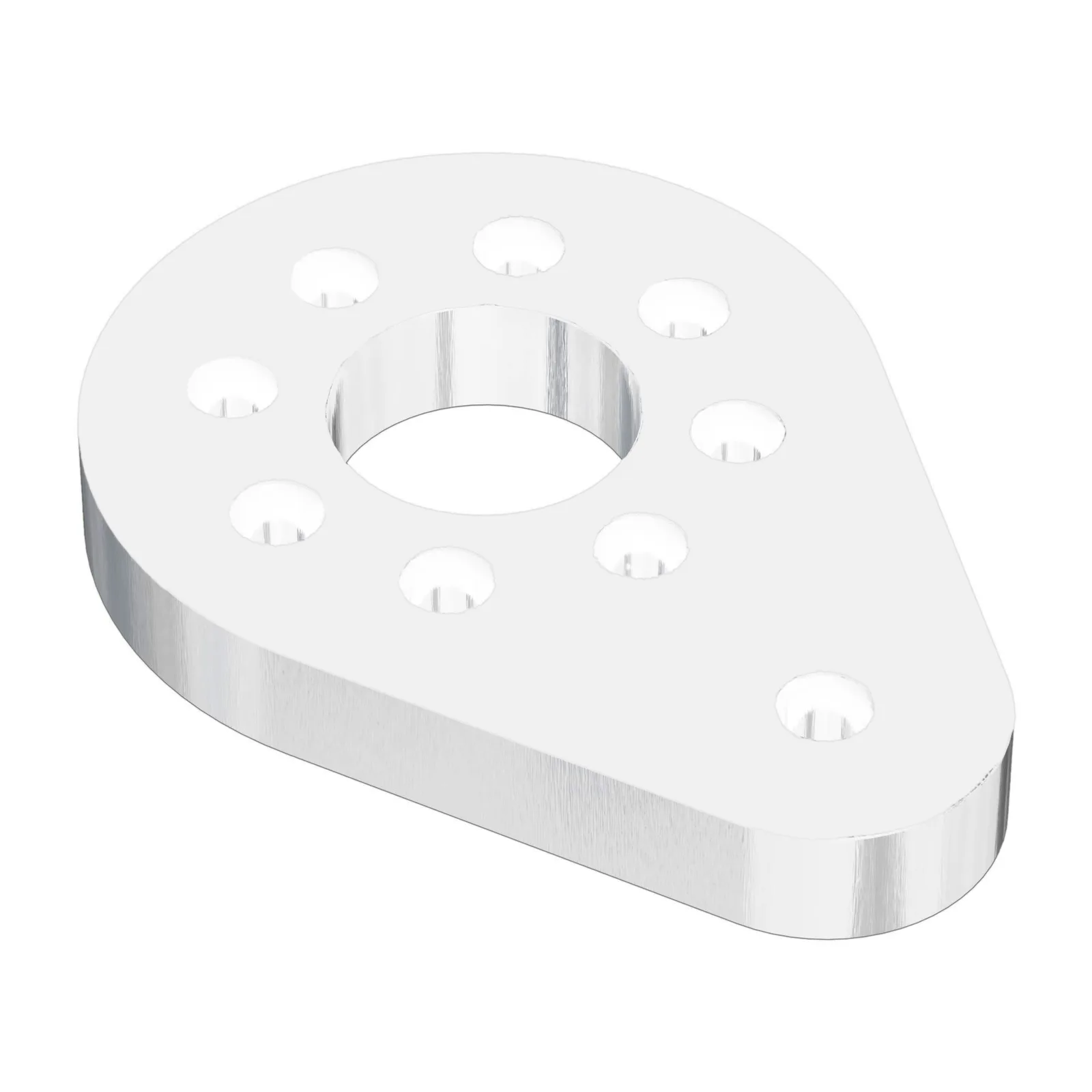

Aluminum Hub-Mount Control Arm (24mm Length)
sheen robotics

Aluminum Hub-Mount Control Arm (24mm Length)

SKU: ZY-3916-0014-0024
R 28,74Ex Tax: R 24,99
Ships in 7–10 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our warehouse — address at checkout
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +1 555 318 8599

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

This 24mm length control arm can be bolted to a Sheen Robotics hub or other Sheen Robotics component which has the 16mm square pattern. A ball linkage, or beam, can be added to the hole at the end of the arm. As the control arm rotates, it will push or pull the linkage attached to it.

Technical drawing

Aluminum Hub-Mount Control Arm (24mm Length) technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number3916-0014-0024
Weight9g
MaterialAluminum

Reviews

No reviews yet — be the first to review this product.
