90-Degree Gusset
SKU: ZY-61265
R 282,15Ex Tax: R 245,35
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These sturdy aluminum gussets are used to connect structural components at different angles and to provide additional strength where needed. Available in 60- 90- and 120-degree angles these gussets serve as a great way to expand building options and increase the strength and robustness of your robot builds! The hole distance is 8mm the diameter of the large hole is 8.1mm and the diameter of the small hole is 3.8mm compatible with TETRIX PRIME
What you will get
- Ten 90-Degree Gusset
Supplied as a pack of 10.

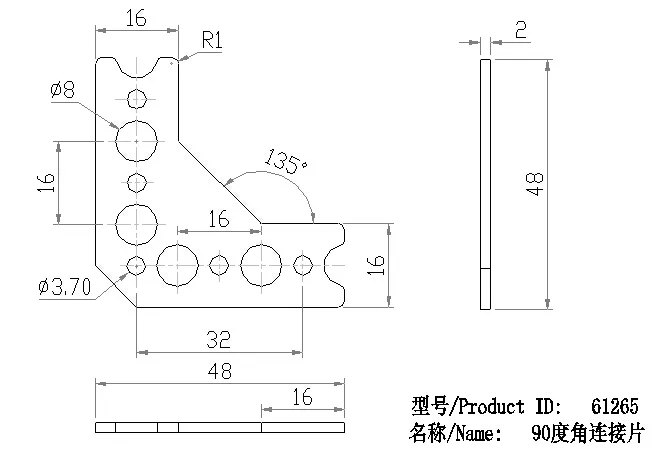

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 61265 |
| Units per pack | 10 |
| Degree | 90 |
| Material | 7005 Aluminum |
| Nominal Size | 48mm x 48mm x 2 mm |
| Weight | 5.6 grams per gusset |
