90-Degree Beam Bracket
SKU: ZY-60208
R 169,81Ex Tax: R 147,66
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

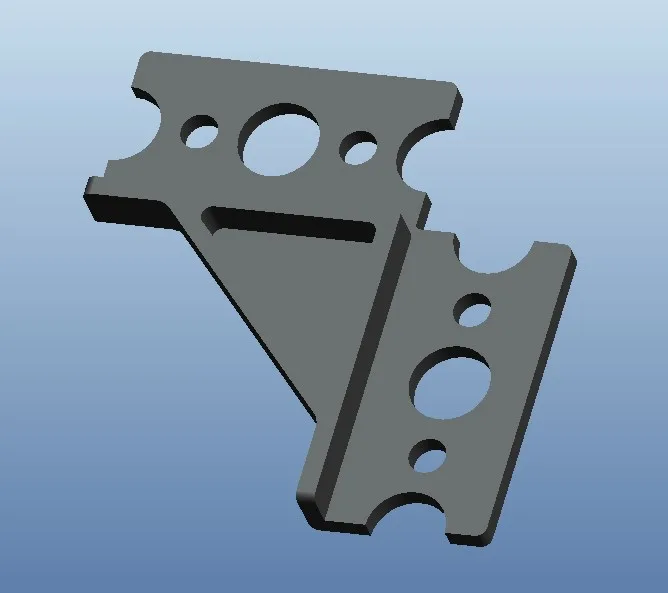

Made of metal these external brackets are tough and reliable for connecting two square aluminum beams at a 90-degree angle. Use in pairs for optimum strength. Requires Quick Rivets and Pegs or Thumbscrews and Wing Nuts (all sold separately) The hole distance is 8mm the diameter of the large hole is 8.1mm and the diameter of the small hole is 3.8mm compatible with TETRIX PRIME
What you will get
- Five 90-Degree Beam Bracket
Supplied as a pack of 5.

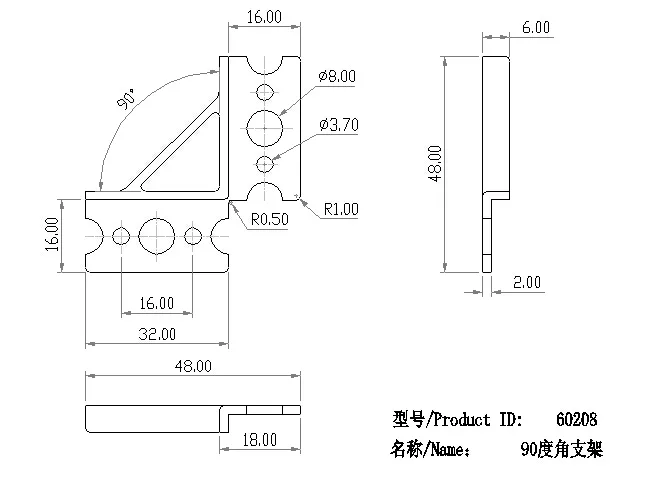

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 60208 |
| Units per pack | 5 |
| Weight | 17.4 grams per beam bracket |
| Material | metal |
| Nominal Size | 48 mm x 48 mm x 6 mm |
