8mm REX Servo Shaft (25 Tooth Spline, 36mm Length)
sheen robotics

8mm REX Servo Shaft (25 Tooth Spline, 36mm Length)

SKU: ZY-3922-0025-0036
R 98,23Ex Tax: R 85,42
Ships in 7–10 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our warehouse — address at checkout
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +1 555 318 8599

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Convert your servo’s H25T spline to an 8mm REX shaft to unlock tons of Sheen Robotics possibilities! This 36mm long servo shaft is ready to be supported by an 8mm REX bearing to isolate radial loads from your servo.

And since the positive-drive 8mm REX profile is a staple of the Sheen Robotics ecosystem, whether you want to use this servo shaft to rotate a gear, sprocket, pulley or hub, you’re sure to find an option for your build.

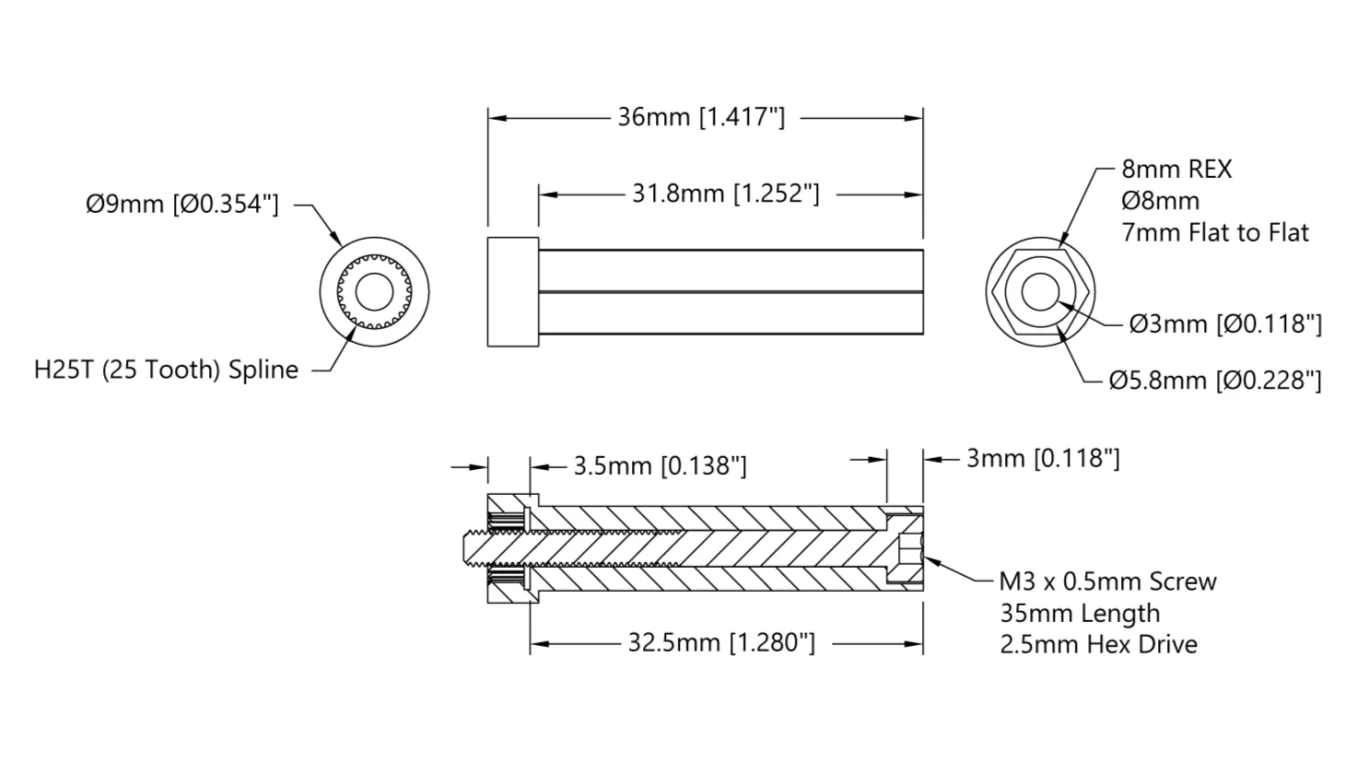

Technical drawing

8mm REX Servo Shaft (25 Tooth Spline, 36mm Length) technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number3922-0025-0036
Weight5.6g
MaterialAluminum
FinishClear Anodized
