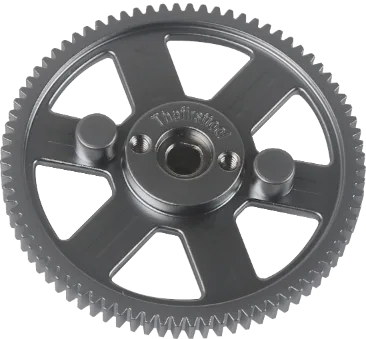

80-Tooth metal Gear

Name: 80-Tooth metal Gear
Brand: sheen robotics
SKU: ZY-60224
Price: 229.90 ZAR
Availability: OutOfStock

SKU: ZY-60224

R 229,90Ex Tax: R 199,91

On backorder — Ships in ~21 working days

Qty

Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
Free collection from our Milnerton (Cape Town) warehouse
Secure checkout — PayFast card payment or EFT
Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Gears are a step above other metal gears – these are made to attach to steel shafts and connect TETRIX PRIME Square Beams. Made of metal. Fit 6 mm steel axles and secure with 6-32 screw included in sets or sold separately compatible with TETRIX PRIME Delivered in a package of two.

What you will get

Two 80-Tooth metal Gear

Supplied as a pack of 2.

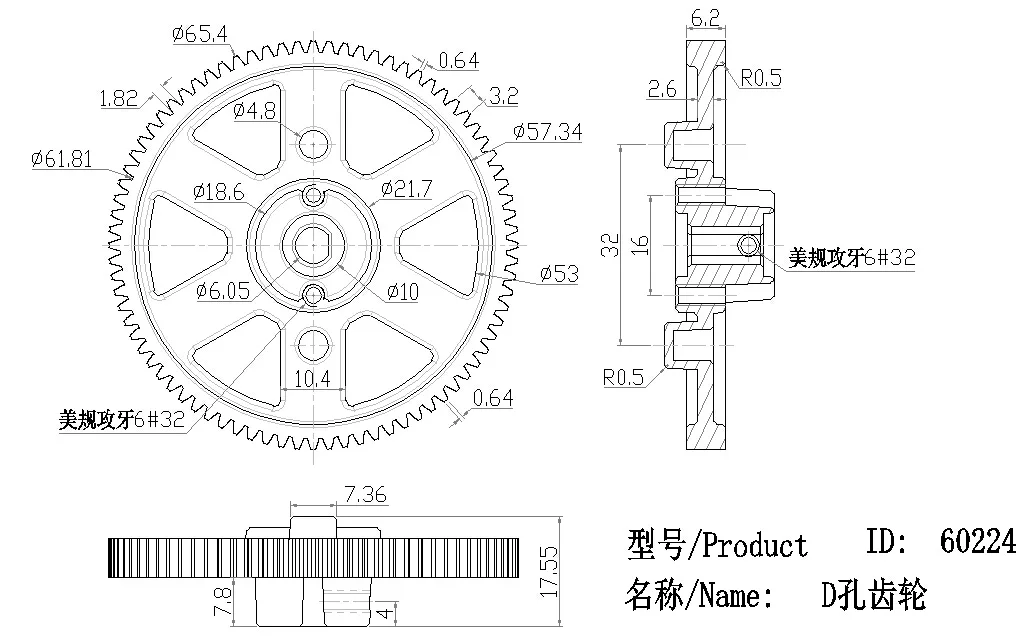

Technical drawing

80-Tooth metal Gear technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)	Legal
FIRST Robotics Competition (FRC)	Legal

Specifications

Part number	60224
Units per pack	2
Number of Teeth	80
Outside Diameter	65.4 mm
Inside Diameter	6 mm
Thickness	17.55 mm
Shaft	Accepts 6 mm D-shaft
Note	Threaded for 6-32 set screw
Material	metal
Weight	74.9 grams per 80-Tooth Plastic Gear
