8 in. HD Pneumatic Wheel Core 0.5 in. Hex Bore
SKU: ZY-zy-3932
R 0,00Ex Tax: R 0,00
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility — read before buying
Legal for FIRST Robotics Competition (FRC). NOT legal for FIRST Tech Challenge (FTC) — do not build this part into an FTC robot. Eligibility is set by each season's game manual — check the current rules before you compete.
Product Overview

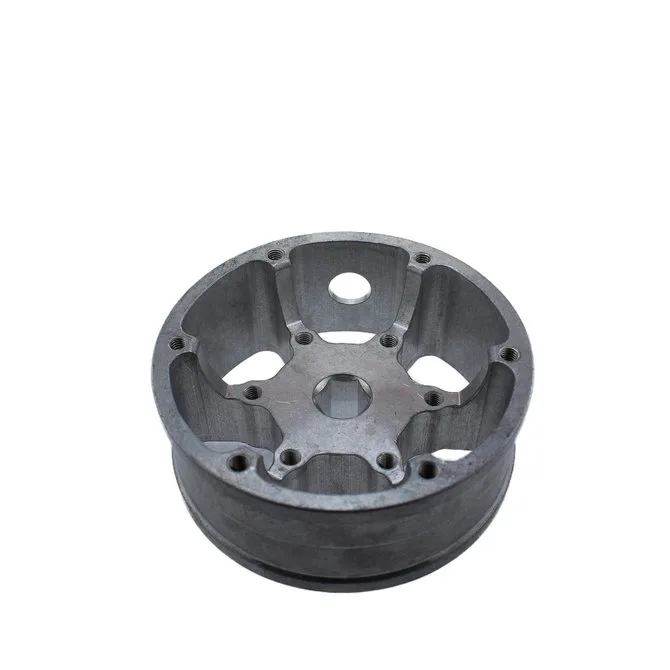

This is the machined core from our 0.5in. Hex Bore 8in. HD Pneumatic Wheel. This hub is made from the same extrusion that we have made our 4in. Performance Wheels from since 2017. In order to use this product with pneumatic tires and tubes, it must be used in conjunction with two HD Pneumatic Wheel Rims and twelve 10-32 BHCS in order to retain the tire and tube.
Competition eligibility
| FIRST Tech Challenge (FTC) | Not legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | zy-3932 |
| Bolt Pattern | Six 10-32 Holes on a 1.875 in. Circle, Six 10-32 Holes on a 3.25 in. Bolt Circle |
| Bore | 0.50 in. Hex |
| Material | Aluminum 6061-T6 |
| Overall Diameter | 3.72 in. |
| Overall Width | 1.7 in. |
| Weight | 0.5 Lbs |
