7-Hole Square Beam
SKU: ZY-60204
R 188,10Ex Tax: R 163,57
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

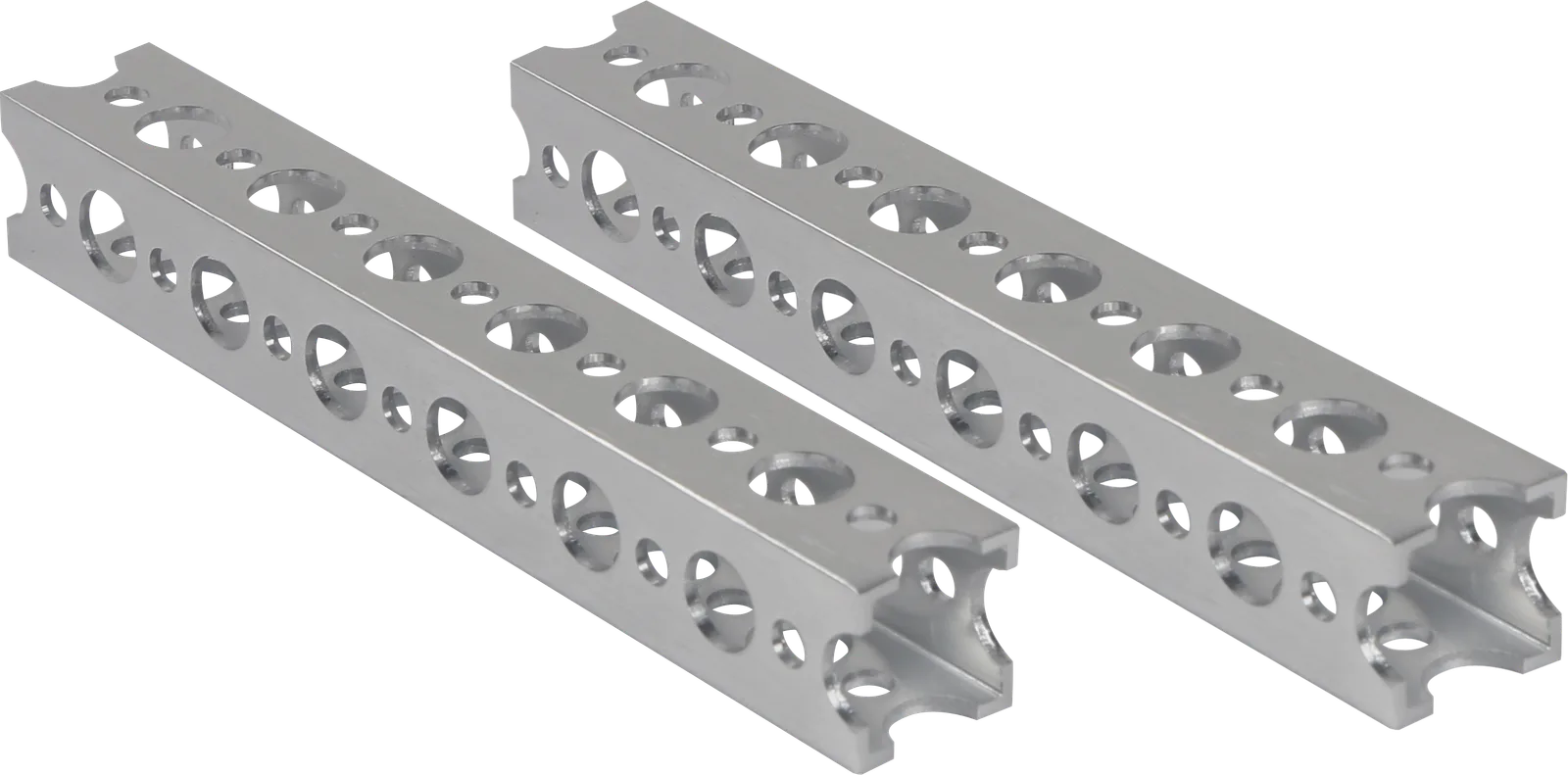

These four-sided 16 mm aluminum beams are the structural building blocks for creating robots. Available in seven lengths to provide flexible building options the beams can also be cut to custom lengths with a metal-cutting blade The hole distance is 8mm the diameter of the large hole is 8.1mm and the diameter of the small hole is 3.8mm.compatible with TETRIX PRIME
Supplied as a pack of 2.

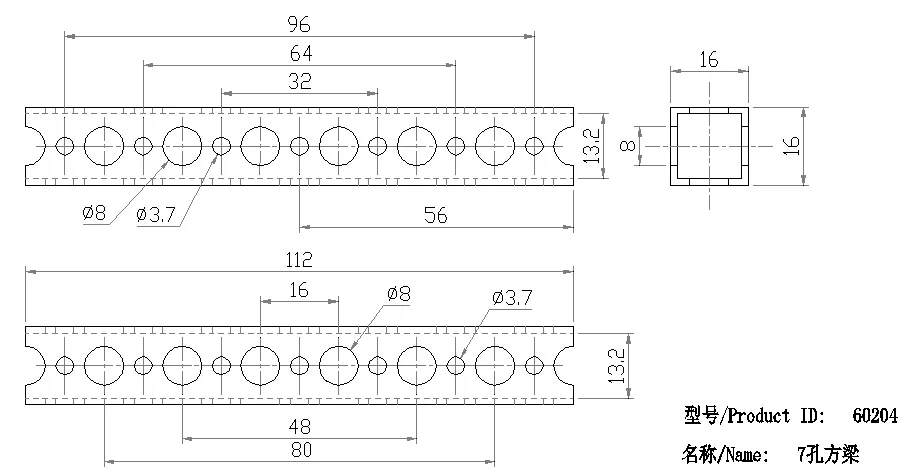

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 60204 |
| Units per pack | 2 |
| Material | 7005 Aluminum |
| Dimensions | 16 mm x 16 mm x 112 mm |
| Weight | 17.2 grams per beam |
