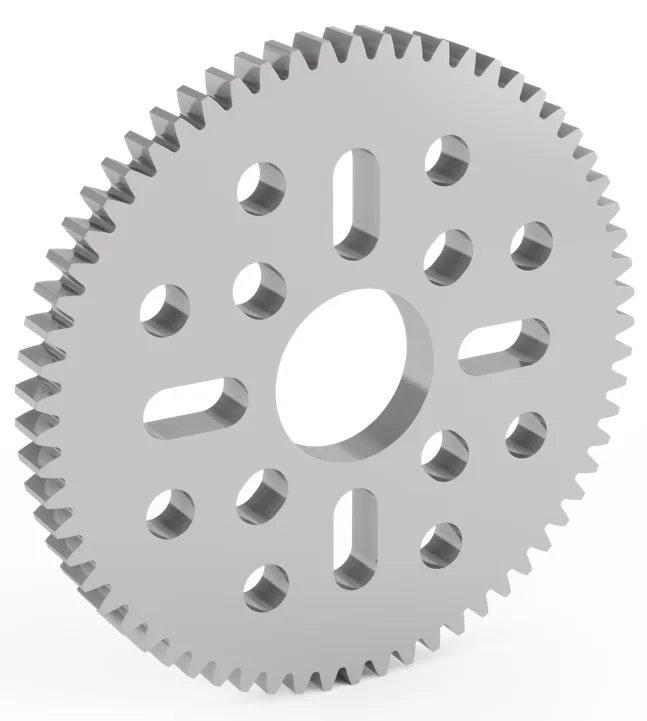

64 Tooth Aluminum Hub-Mount Gear (MOD 0.8, 4mm Thick , 14mm Bore)
SKU: ZY-4312-0414-0064
R 131,04Ex Tax: R 113,95
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These straight-cut spur gears have a 14mm bore with the 16mm pattern in order to mount to hubs and other rotating components containing the 16mm pattern. MOD 0.8 gear will mate with any MOD 0.8 gear.
Specs
Pressure Angle 20 Degree

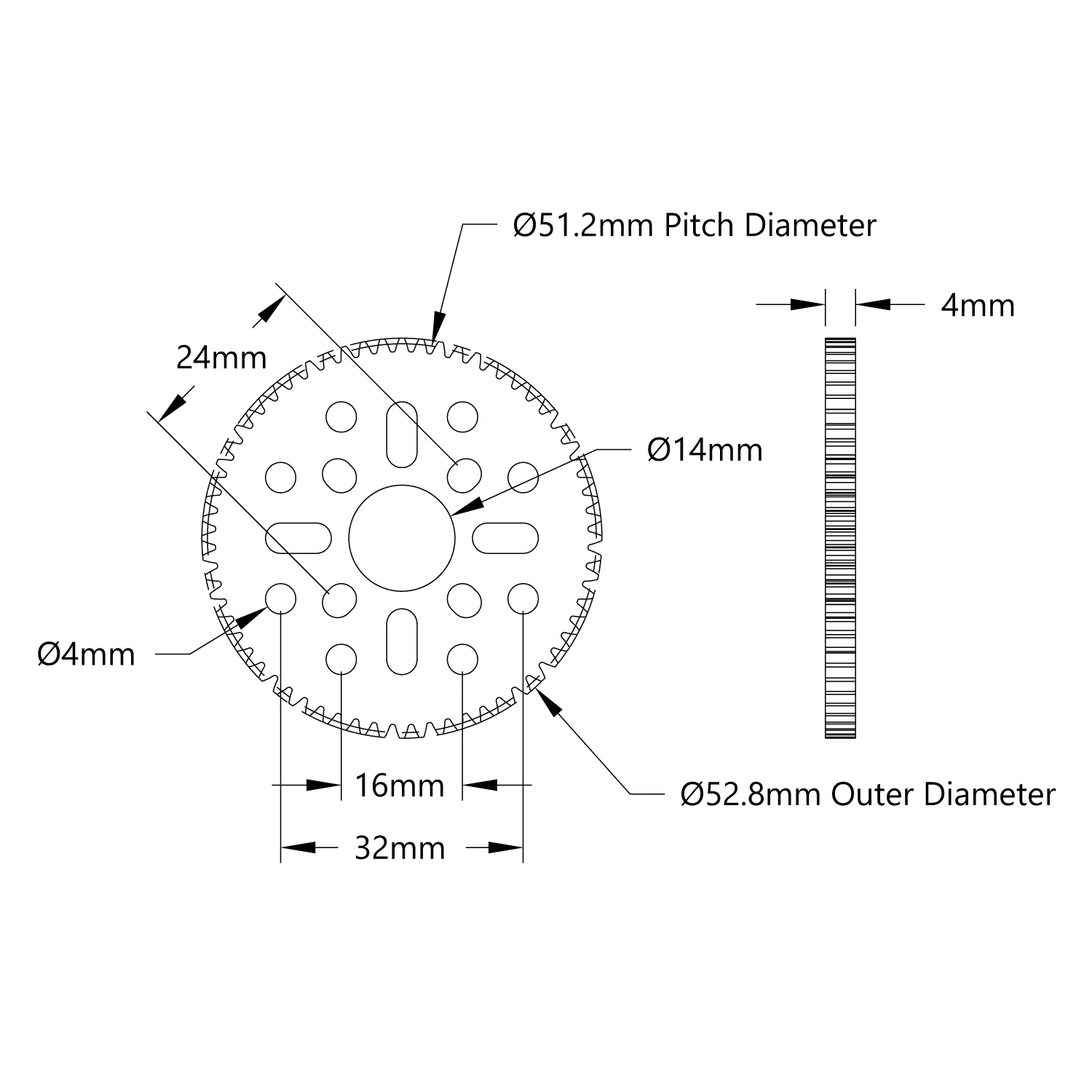

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4312-0414-0064 |
| Weight | 23g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 64 |
| Gear Pitch | MOD 0.8 |
