6102 Series Aluminum Flanged Tube (28mm ID x 32mm OD, 39mm Length)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

With the addition of a flange on the end of a tube, you can slide the tube through a bearing without having to add parts to keep the tube from sliding axially in one direction. The addition of a hub on the opposing side will lock the tube from moving in the other direction.This flanged aluminum tube is the appropriate length for use with 32mm pillow blocks spaced 16mm apart. The remaining length is perfect for adding a 6mm length 32mm ID spacer, and a 32mm bore clamping hub.

size:32mm OD

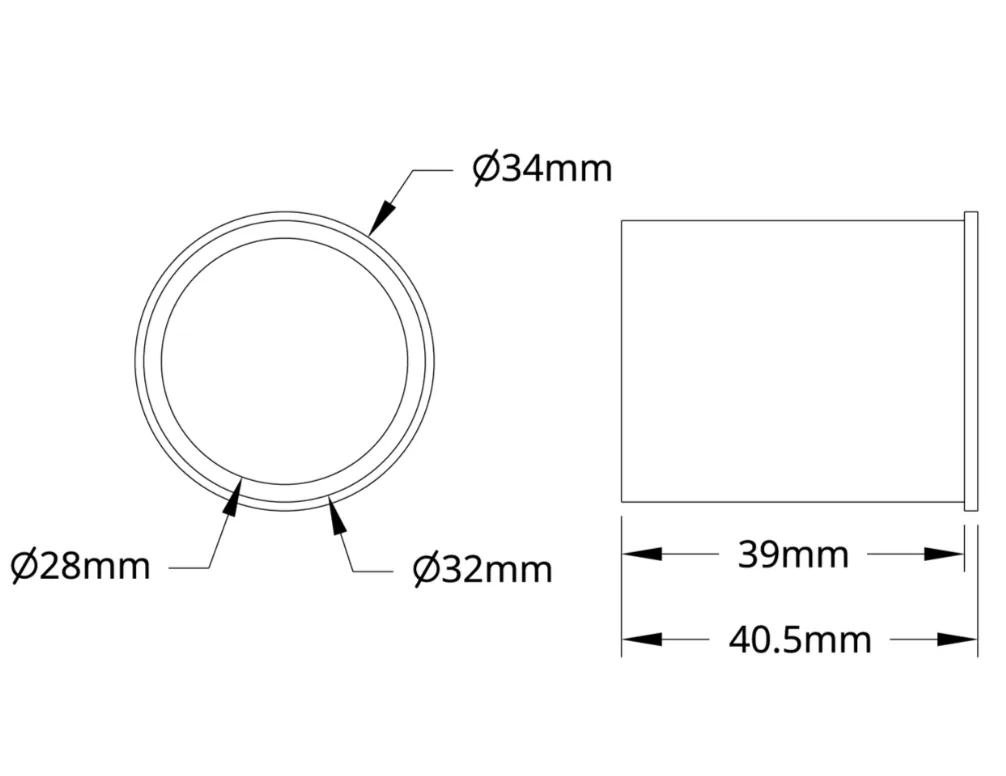

Technical drawing
