6101 Series Aluminum Tube for Lead Screw Square Nut (10mm ID x 14mm OD, 300mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This aluminum tube is able to thread onto the Lead Screw Square Nut and serve as an extension rod of a linear actuator. One of the two internal M12 x 1.25mm threaded ends can fasten to the Lead Screw Square Nut while the other is available for possible future offerings to thread into. The tube is able to slide inside of the 14mm bore of goRUN and goTUBE which can act as the linear actuator housing. As the Lead Screw Square Nut that the tube is mounted to is driven by an 8mm Lead Screw, the tube can extend and retract from the housing with minimal friction. To fasten something to the end of the tube, simply choose one of our 14mm clamping components.

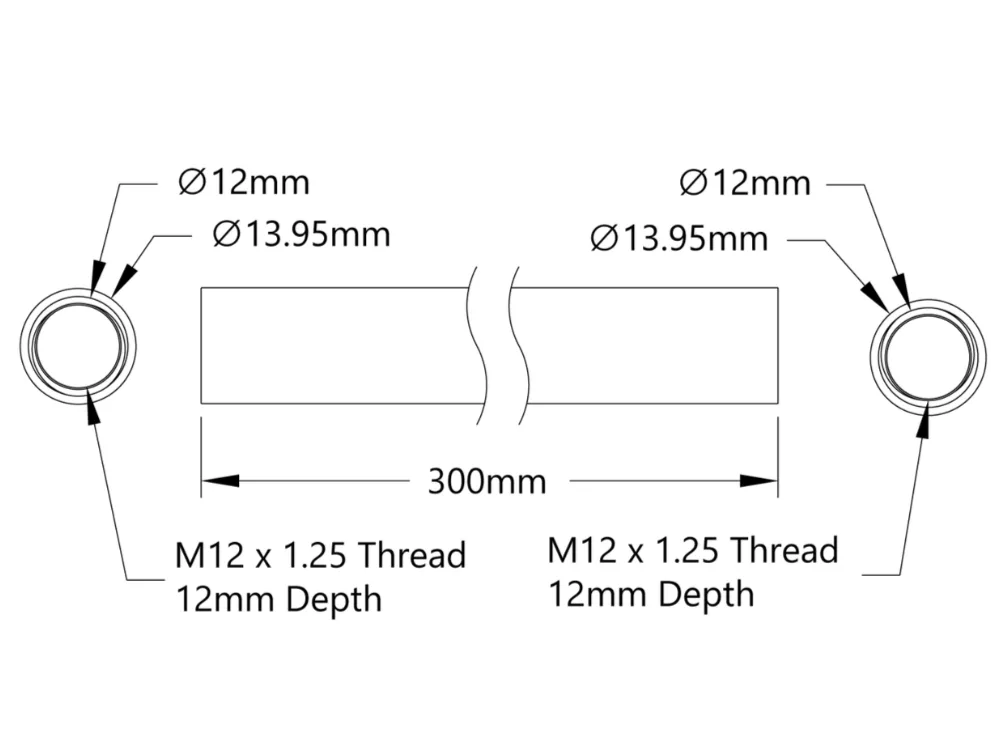

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 6101-1014-0300 |
| Length | 300mm |
| Weight | 59g |
| Material | Aluminum |
| Finish | Clear Anodized |
