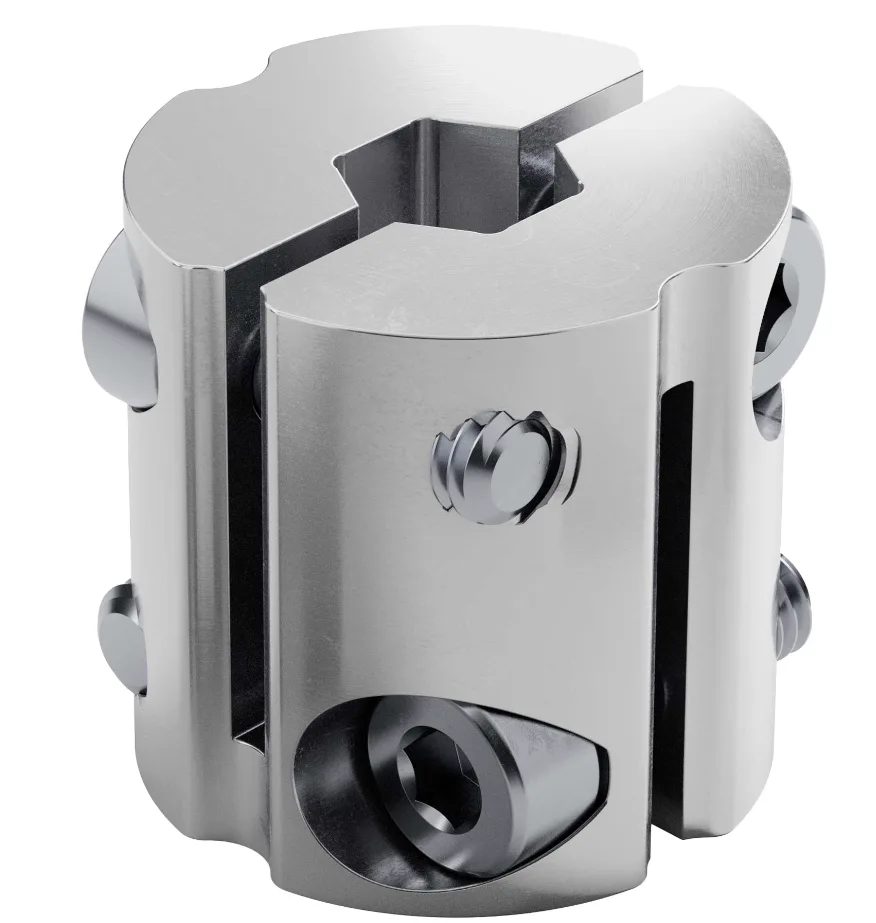

6007 Series Hyper Coupler (8mm Round Bore to 8mm REX Bore)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Both the OD and the length of this coupler have been thoughtfully designed to make using it convenient.The outer diameter is small enough to allow a hex key to pass byin order to access motor mounting screws.The length is short enough to allow you to insert the coupler between the motor's shaft tip and the opposing U-Channel wall This makes it possible to add the coupler to the assembly after the motor has been mounted-or to remove it from the assembly without removing the motor.This coupler employs the Hyper style of clamping to enforce a strong , balanced grip on 8mm REX Shafting and 8mm RoundShafting.

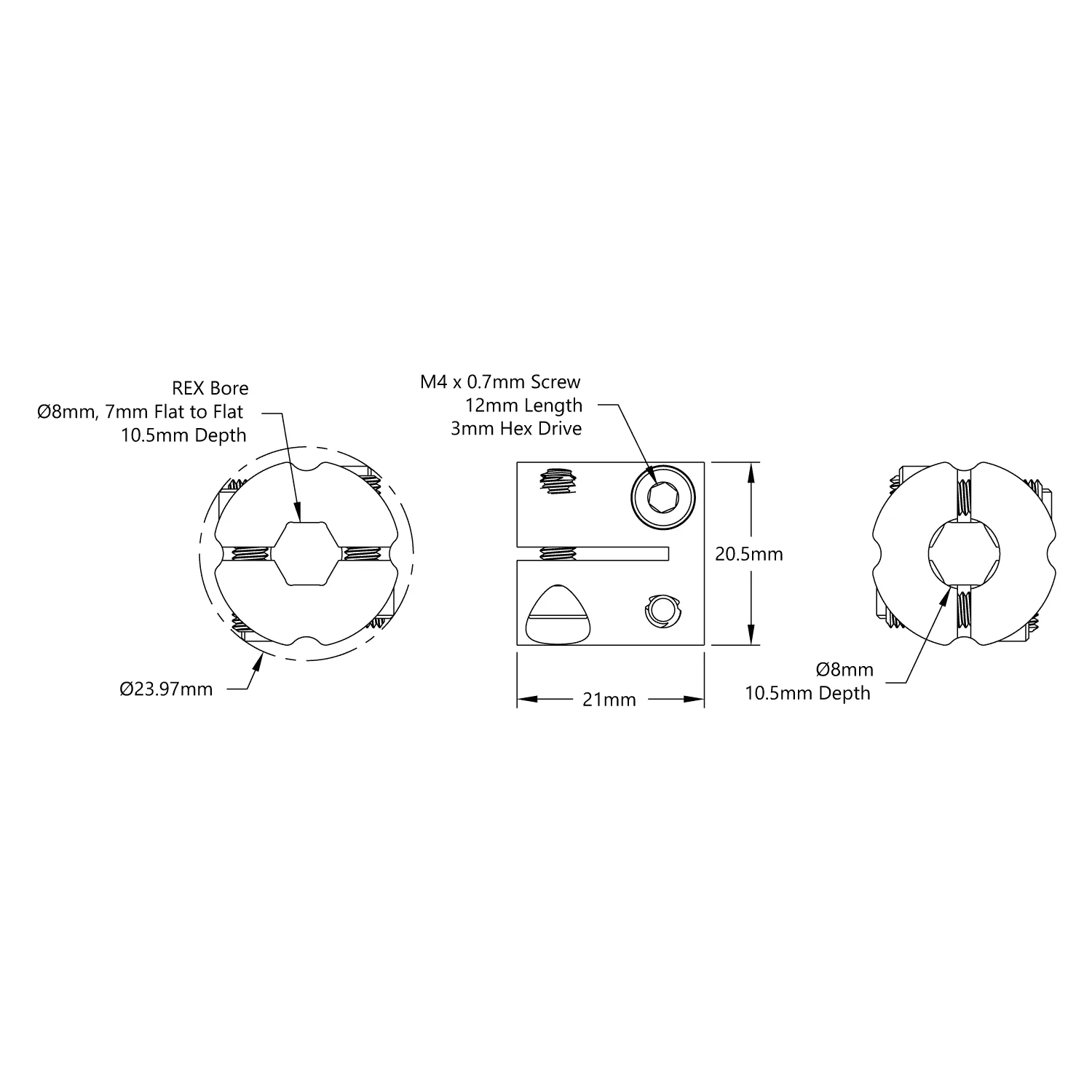

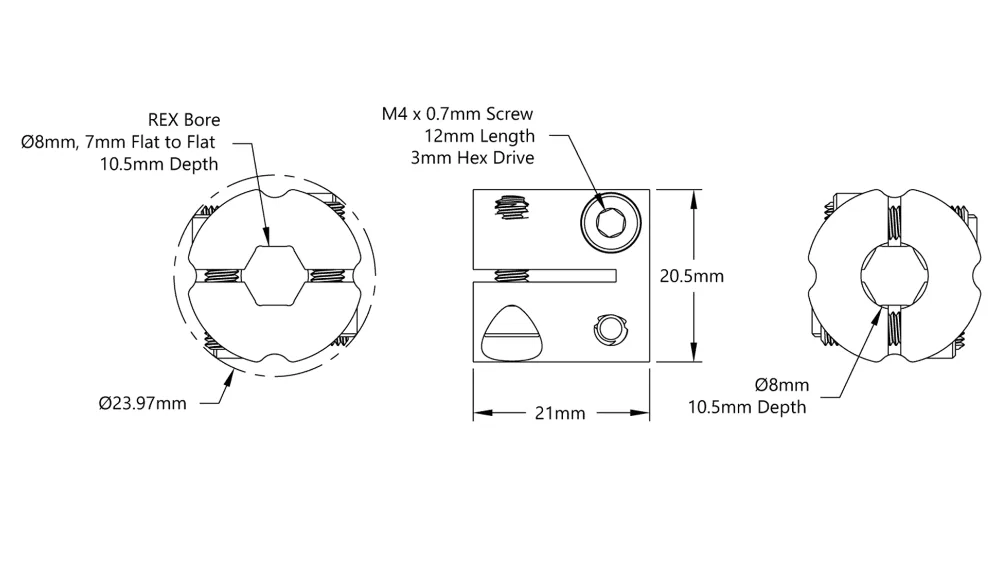

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 6007-0008-4008 |
| Weight | 19g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Bore | A 8mm REX Bore |
