Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

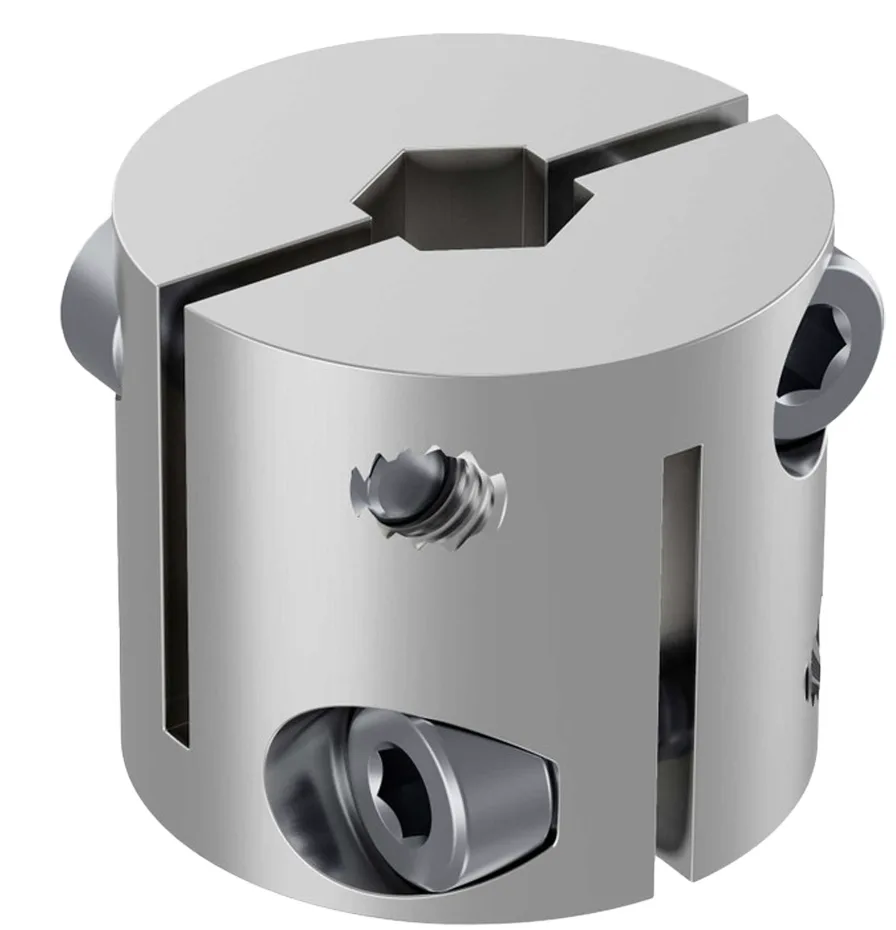

Crank up the speed because Hyper Couplers are completely balanced! The dual pinch bolts on each end provide excellent clamping force on the shafts inserted. The clamping mechanisms are independent of one-another so you no longer need to have both shafts inserted into the coupler before tightening one end down. This 8mm REX to 12mm REX coupler is a compact, balanced way to fasten an 8mm REX shaft to a 12mm REX shaft. The 21mm overall length allows you to slide the coupler down inside of 1120 Series Channel even when one of the two shafts is inserted half-way through the inside cavity. The bores of the coupler are profile-matched to create a positive drive. That, in combination with four pinch bolts, provides an extremely solid connection that is able to hold loads in both the radial and axial directions with ease.

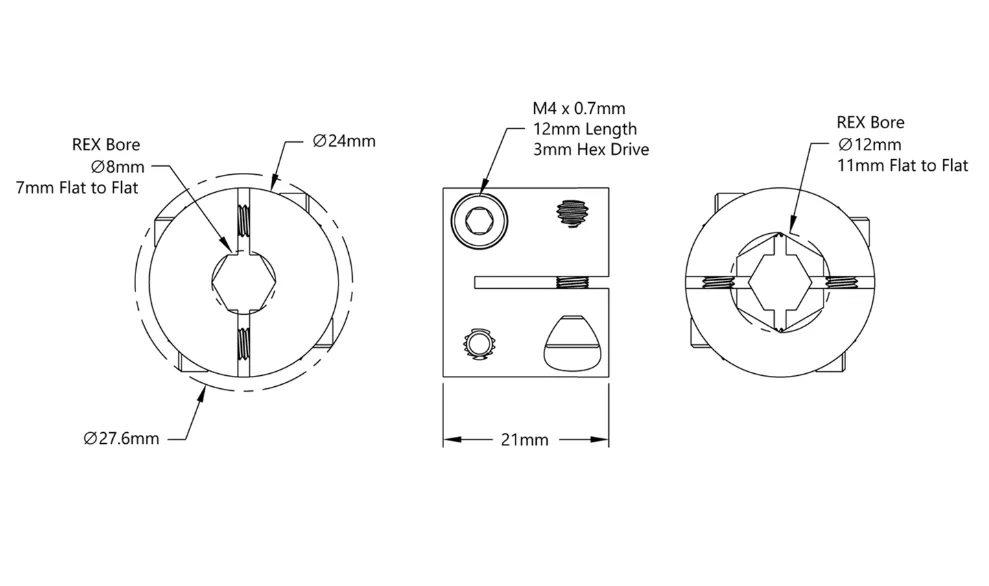

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 6007-4008-4012 |
| Weight | 24g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Bore | A 8mm REX Bore |
