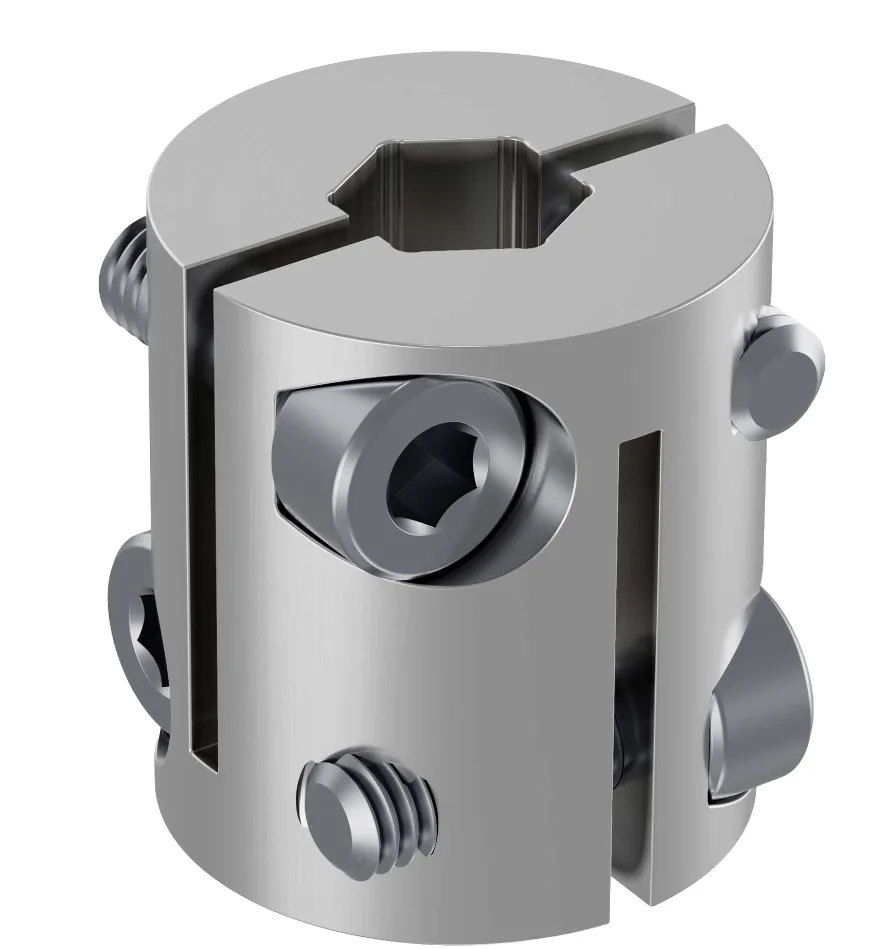

6007 Series Hyper Coupler (6mm D-Bore to 8mm REX Bore)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Crank up the speed because Hyper Couplers are completely balanced! The dual pinch bolts on each end provide excellent clamping force on the shafts inserted. The clamping mechanisms are independent of one-another so you no longer need to have both shafts inserted into the coupler before tightening one end down.This 6mm D-Bore to 8mm REX bore Hyper Coupler is a strong, compact, balanced way to couple two shafts together. Maybe you have motors with 6mm d-shafting but you want to step up your game and run 8mm REX to handle higher torque loads. Maybe you’re going the other way due to a surplus of 6mm D-bore pinion gears, hubs, sprockets, etc. The diameter of the coupler has been thoughtfully chosen so that, when installed, you can still access screws on the 16mm pattern with the use of a hex key. The length is such that, when a motor with a 24mm length shaft is installed perpendicular to 3120 Series U-Channel, the coupler can slide in between the end of the shaft, and the inside wall of the U-Channel. And as with all ‘Hyper’ parts, this too is balanced so you can spin it up without concern of creating unwanted vibrations through your drivetrain.

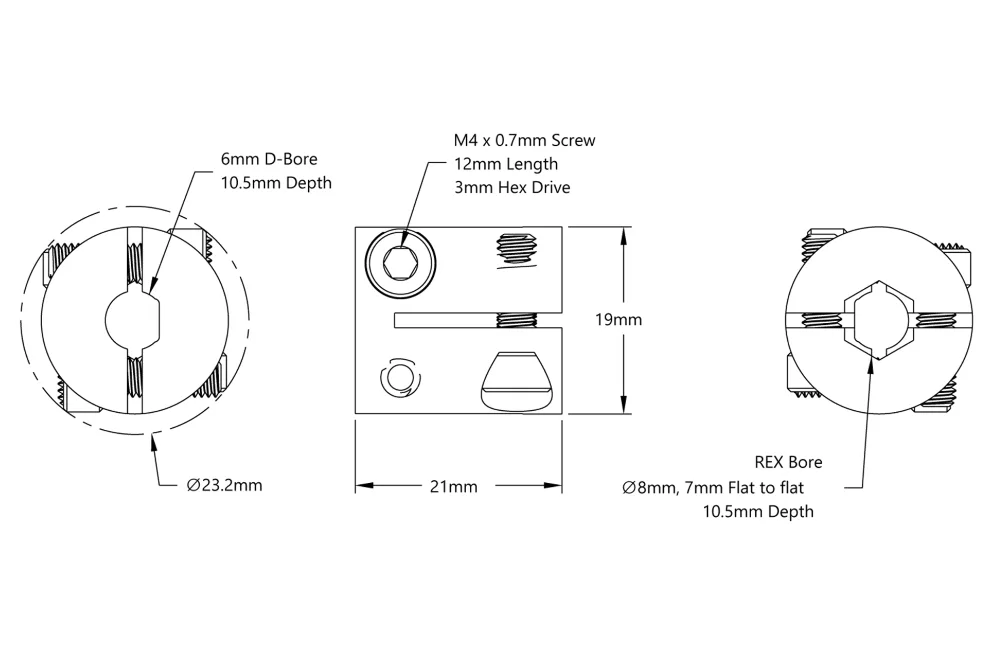

Technical drawing
