6002 Series Flexible Clamping Shaft Coupler (6mm Round Bore to 8mm Round Bore)
sheen robotics

6002 Series Flexible Clamping Shaft Coupler (6mm Round Bore to 8mm Round Bore)

SKU: ZY-6002-0006-0008
R 156,75Ex Tax: R 136,30
On backorder — Ships in ~21 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our Milnerton (Cape Town) warehouse
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Flexible clamping shaft couplers provide an excellent way to transfer rotational motion between two shafts that have the potential for a slight misalignment. These couplers not only clamp around the shaft, but also have a set-screw for added security. The design of the flexible clamping shaft couplers provides excellent accuracy as no backlash is introduced into the system. They’re perfect for high precision projects using stepper motors, or motors with encoders.

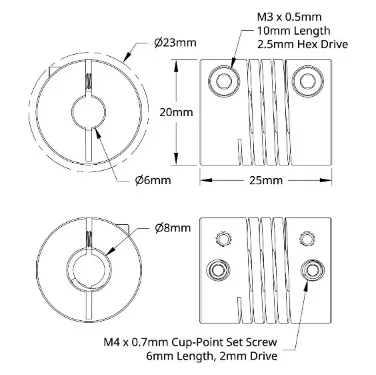

Technical drawing

6002 Series Flexible Clamping Shaft Coupler (6mm Round Bore to 8mm Round Bore) technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number6002-0006-0008
Weight18g
MaterialAluminum
FinishClear Anodized
BoreA 6mm
