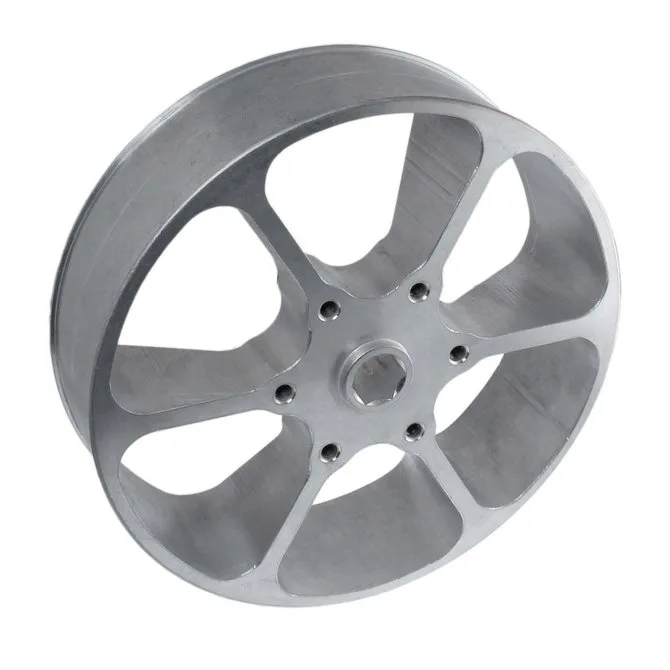

6 in. Performance Wheel XL 0.50 in. Hex Bore
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility — read before buying
Legal for FIRST Robotics Competition (FRC). NOT legal for FIRST Tech Challenge (FTC) — do not build this part into an FTC robot. Eligibility is set by each season's game manual — check the current rules before you compete.
Product Overview
The 6 in. Performance Wheel XL is a virtually indestructible wheel made out of solid 6061 aluminum. This competition-proven design has been used on FIRST Robotics Competition robots for many years. This new version of this wheel is 50% wider than our regular 6 in. Performance Wheels for maximum traction. This wheel can take anything an FRC robot can throw at it, and much more. Additionally this new version also includes a 1/8 in. thick boss on the rear (flat) side of the wheel to prevent unwanted friction in bearing outer races. This also reduces the part count on drivetrains.
This wheel is designed to be driven by a 1/2 in. Hex shaft, but also allows for other motion hardware that utilizes a 1.875 in 6-hole bolt circle found in many AndyMark and competition robotics products. To mount one of these to the rear (flat) side, use a 250 Sprocket and Pulley Spacer. To mount one to the front, use a 550 Sprocket Spacer. This wheel does not include 1.47" wide tread material.
Competition eligibility
| FIRST Tech Challenge (FTC) | Not legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | zy-4177 |
| Bore | 0.50 in. |
| Diameter | 5.67 in., 6.0 in. Nominal with Tread |
| Finish | Tumbled |
| Hole Pattern | Qty 6 0.159 in. holes on a 1.875 in. bolt circle tapped for 10-32 thread |
| Hub Depth | 0.125 in. |
| Hub Diameter | 0.75 in. |
| Material | 6061-T6 Aluminum |
| Weight | 0.84 lbs |
| Width | 1.525 in. Lip to Lip, 1.625 in. Outside Lip to Outside Lip, 1.750 in. Overall |
