5615 Series Boot-Wheel (8mm REX Bore, 48mm Diameter, 30A Durometer)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

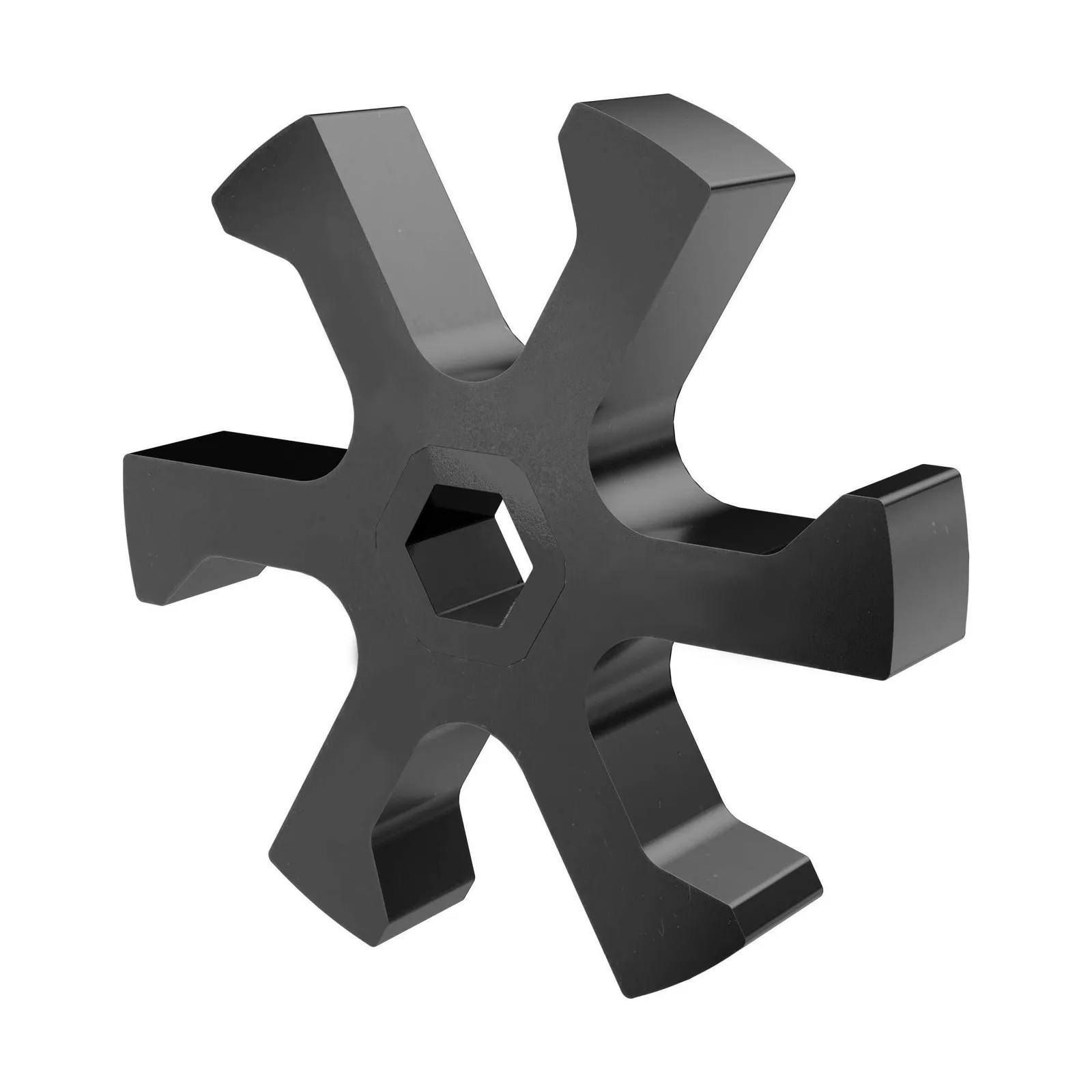

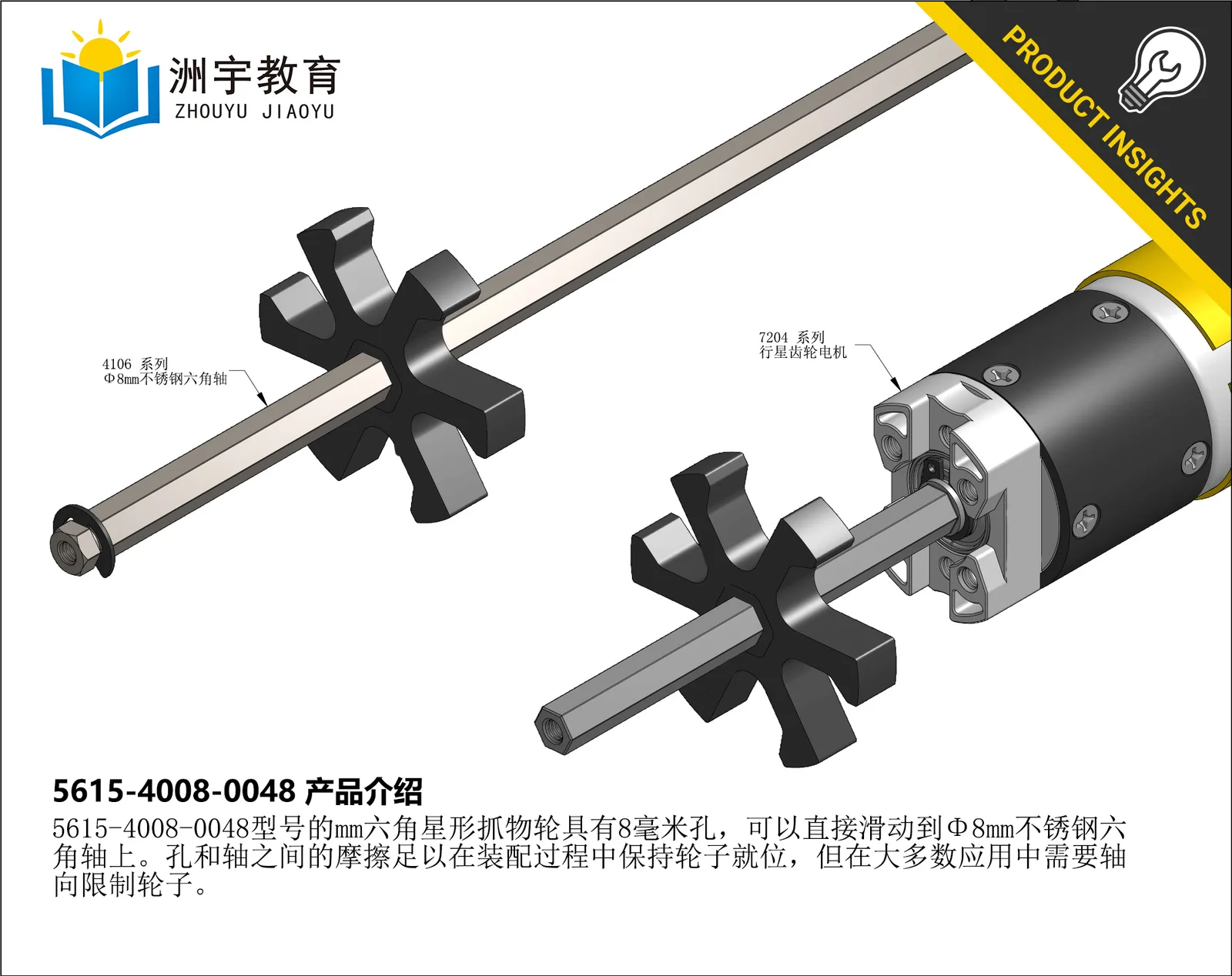

These Boot-Wheels are constructed of high-grip silicone rubber that offers excellent grip against a multitude of surfaces. The plastic center core gives this wheel great positive drive when installed on an 8mm REX shaft, leaving only the axial constraint up to you.

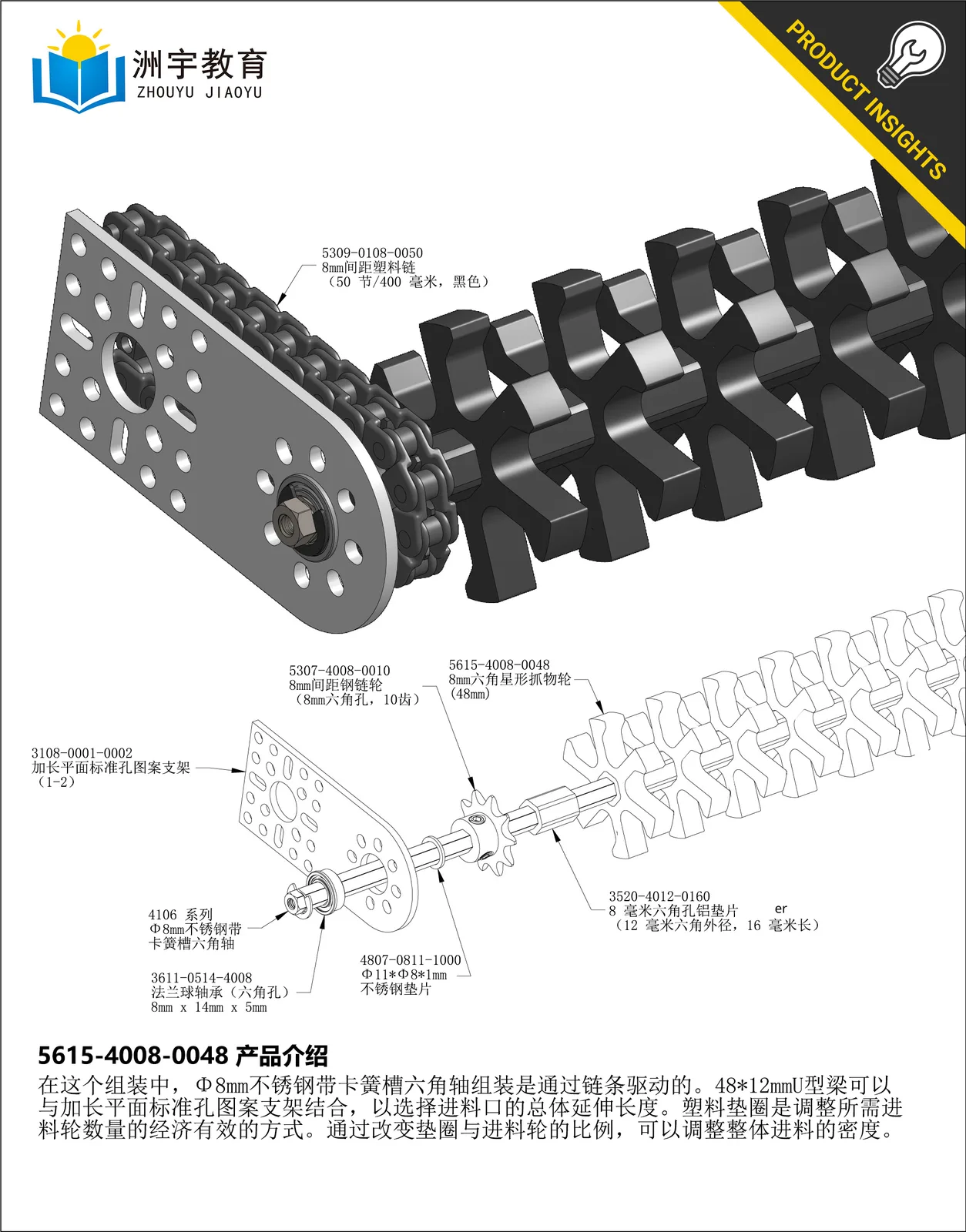

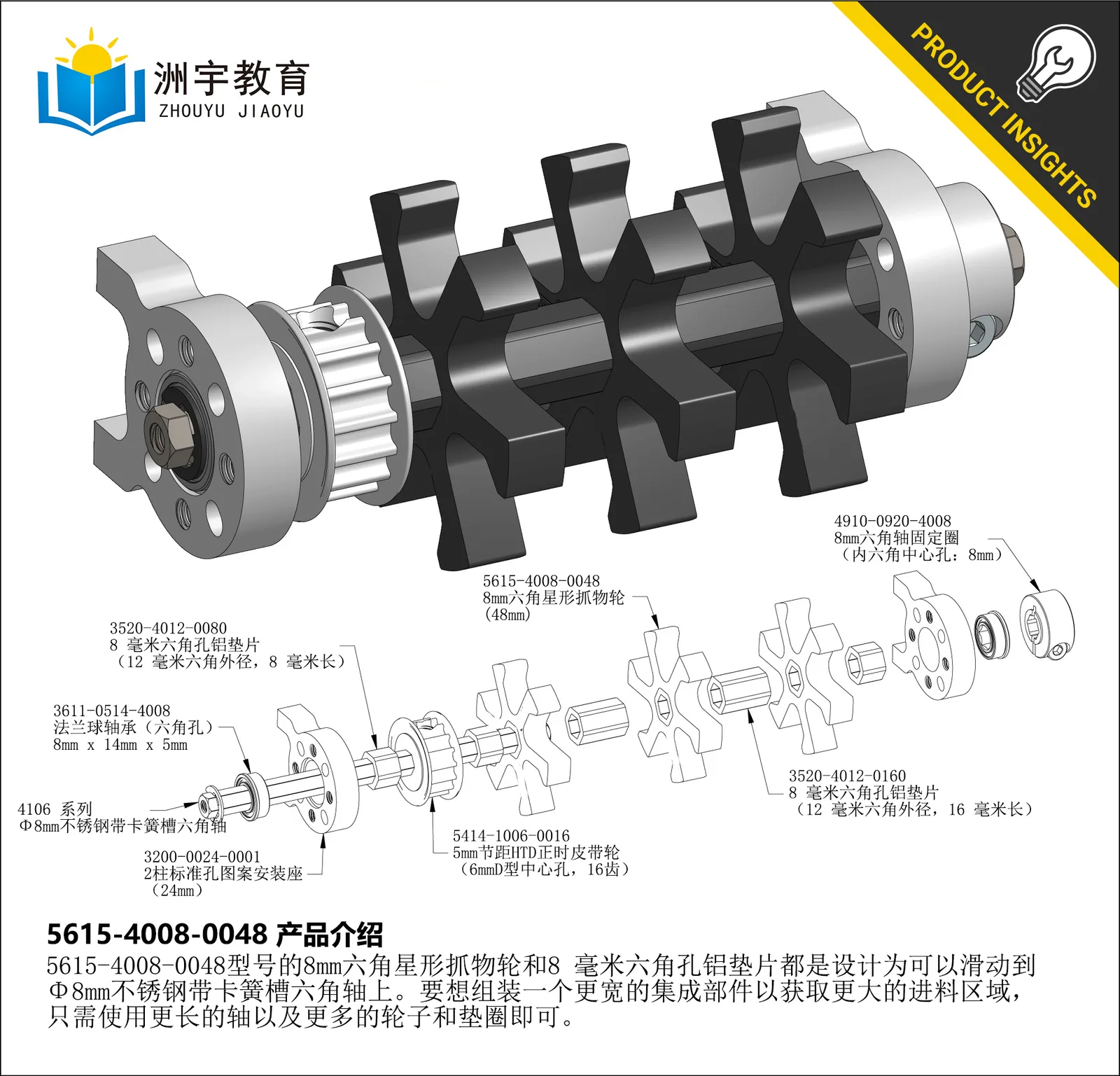

With The “toe” of your Boot-Wheels spinning towards your robot, they’ll give your items a little kick up. With the “heel” of the boot spinning towards your bot, they’ll give you a more horizontal trajectory. A combination of orientations can lead to some very interesting intake geometry.

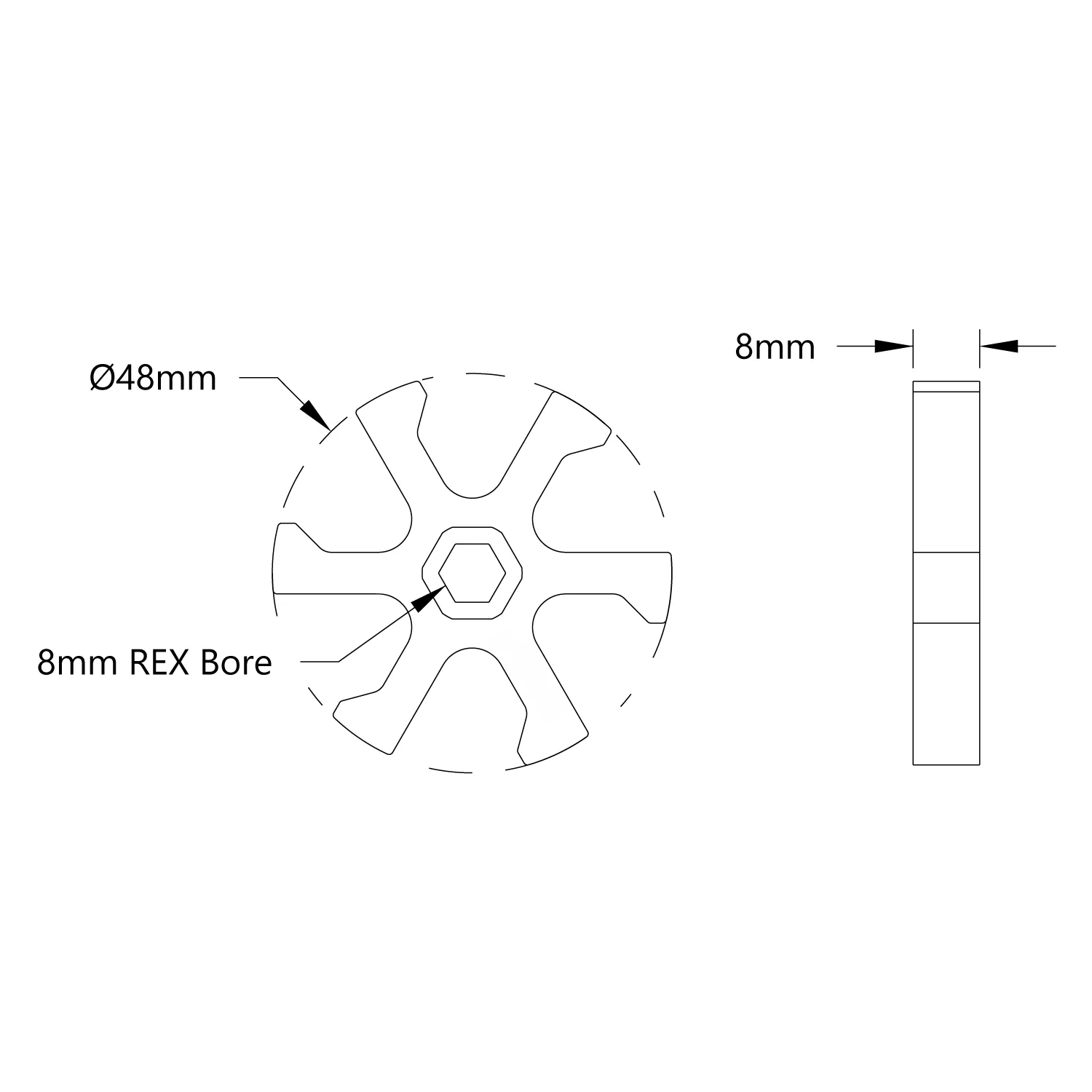

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5615-4008-0048 |
| Weight | 6.6g |
| Material | Silicone Rubber, aluminium Core |
| Durometer | 30A |
