5501 Series Lead Screw (8mm Lead, 4 Start, 450mm Length)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Lead screws are an excellent mechanism to convert rotation into linear motion whether you’re looking to achieve the precision of a 3D printer or the brute force of a scissor jack.The pitch of a lead screw refers to the distance from one thread to the next. The 8mm lead screws have 4 threads with a 2mm pitch which yields 8mm of linear travel of a lead screw nut for each rotation of the lead screw. The 8mm diameter makes them compatible with many components such as 8mm pillow blocks and 8mm thrust bearings.

# Starts 4

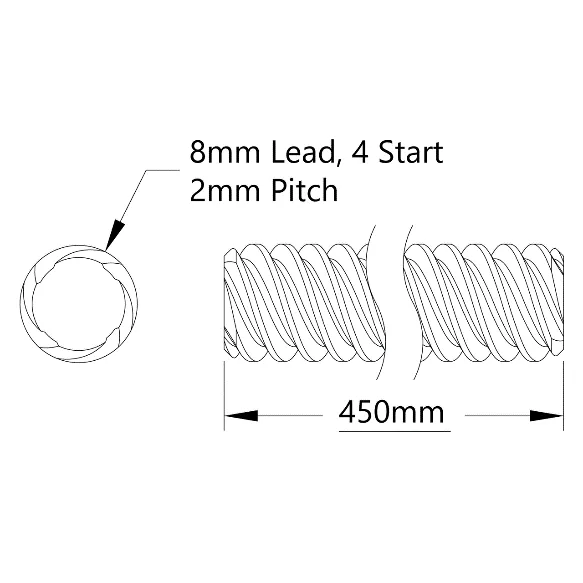

Technical drawing
