5501 Series Lead Screw (8mm Lead, 4 Start, 100mm Length)
SKU: ZY-5501-0804-0100
R 75,87Ex Tax: R 65,97
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Lead screws are an excellent mechanism to convert rotation into linear motion whether you’re looking to achieve the precision of a 3D printer or the brute force of a scissor jack.The pitch of a lead screw refers to the distance from one thread to the next. The 8mm lead screws have 4 threads with a 2mm pitch which yields 8mm of linear travel of a lead screw nut for each rotation of the lead screw. The 8mm diameter makes them compatible with many components such as 8mm pillow blocks and 8mm thrust bearings.
# Starts 4

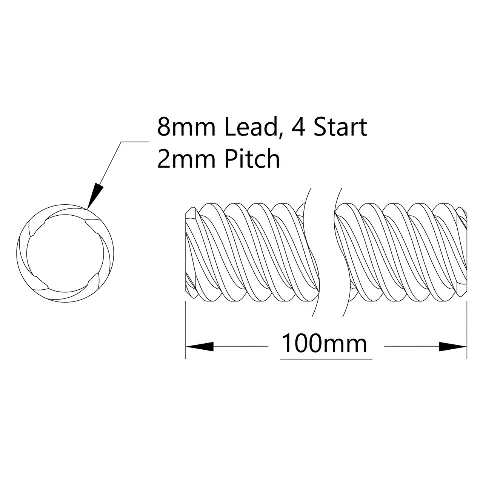

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5501-0804-0100 |
| Length | 100mm |
| Weight | 30g |
| Material | Stainless Steel |
| Pitch | 2mm |
| Lead Diameter | 8mm |
