5414 Series 5mm HTD Pitch Set Screw Pinion Timing Belt Pulley (8mm REX Bore, 24 Tooth)

Name: 5414 Series 5mm HTD Pitch Set Screw Pinion Timing Belt Pulley (8mm REX Bore, 24 Tooth)
Brand: sheen robotics
SKU: ZY-5414-4008-0024
Price: 96.56 ZAR
Availability: OutOfStock

SKU: ZY-5414-4008-0024

R 96,56Ex Tax: R 83,97

On backorder — Ships in ~21 working days

Qty

Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
Free collection from our Milnerton (Cape Town) warehouse
Secure checkout — PayFast card payment or EFT
Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

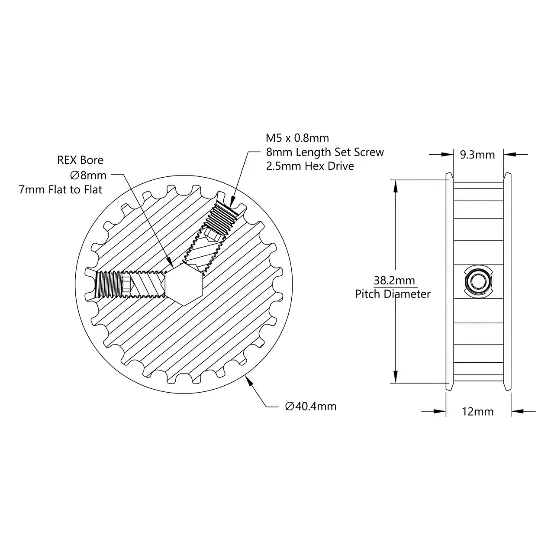

5mm HTD Timing Pulleys are an excellent choice for larger scale chassis that are driven by high-torque motors. The 5mm pitch provides room for a taller tooth to create a drive with less chance of belt-slip.This 24 Tooth 8mm REX bore pinion pulley is specifically for 5mm HTD belt with a width of 9mm or less. The bore matches the profile of our 8mm REX shafting to create a positive drive. The pair of set screws lock the pulley from moving axially on the shaft.
