5414 Series 5mm HTD Pitch Set Screw Pinion Timing Belt Pulley (8mm REX Bore, 16 Tooth)
SKU: ZY-5414-4008-0016
R 114,95Ex Tax: R 99,96
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
5mm HTD Timing Pulleys are an excellent choice for larger scale chassis that are driven by high-torque motors. The 5mm pitch provides room for a taller tooth to create a drive with less chance of belt-slip.This 16 Tooth 8mm REX bore pinion pulley is specifically for 5mm HTD belt with a width of 9mm or less. The bore matches the profile of our 8mm REX shafting to create a positive drive. The pair of set screws lock the pulley from moving axially on the shaft.

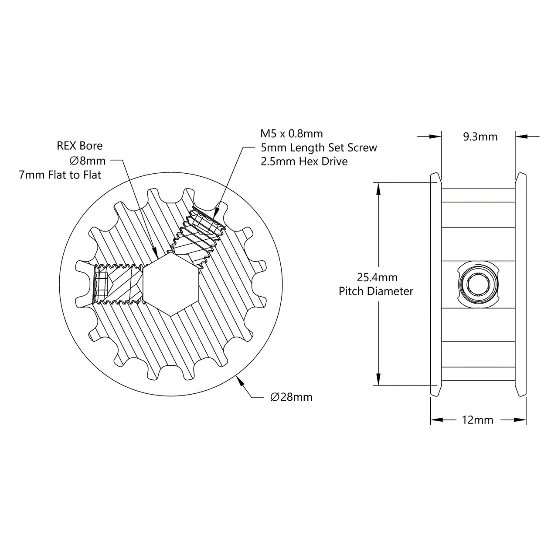

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5414-4008-0016 |
| Weight | 13g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 16 |
Reviews
No reviews yet — be the first to review this product.
