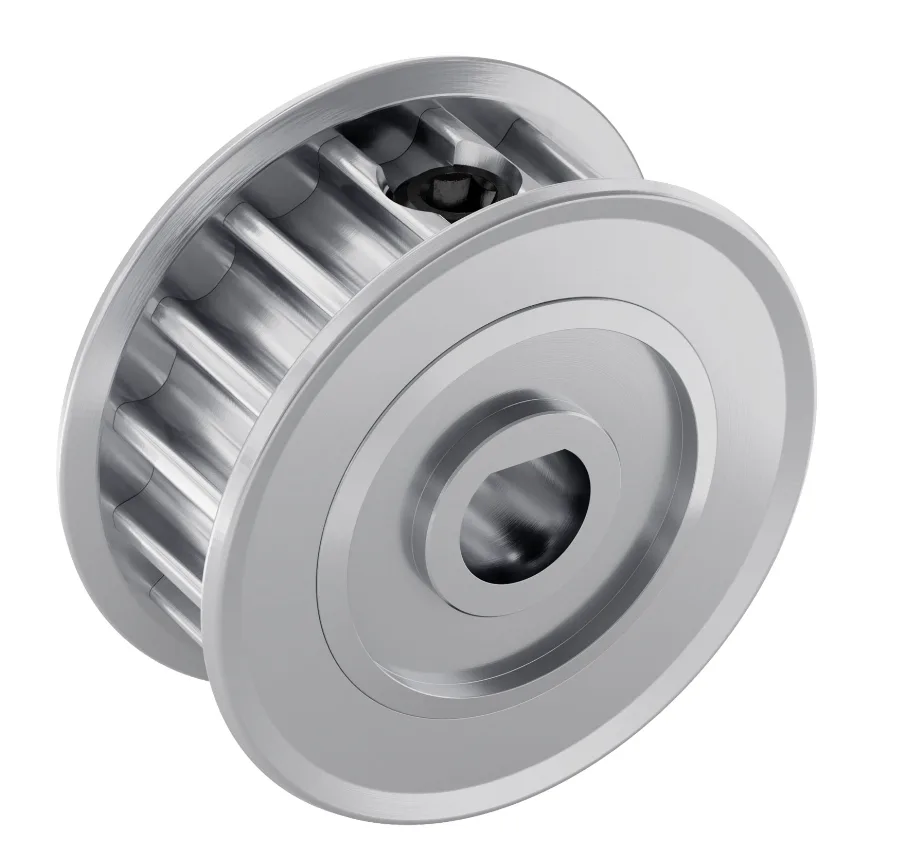

5414 Series 5mm HTD Pitch Set Screw Pinion Timing Belt Pulley (6mm D-Bore, 16 Tooth)
SKU: ZY-5414-1006-0016
R 91,96Ex Tax: R 79,97
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
5mm HTD Timing Pulleys are an excellent choice for larger scale chassis that are driven by high-torque motors. The 5mm pitch provides room for a taller tooth to create a drive with less chance of belt-slip.This 16 Tooth, 6mm D-bore pinion pulley is specifically for 5mm HTD belt with a width of 9mm or less. The bore matches the shaft profile of our 7201 and 7202 Series Yellow Jacket Gear Motors as well as our 6mm D-Shafting.

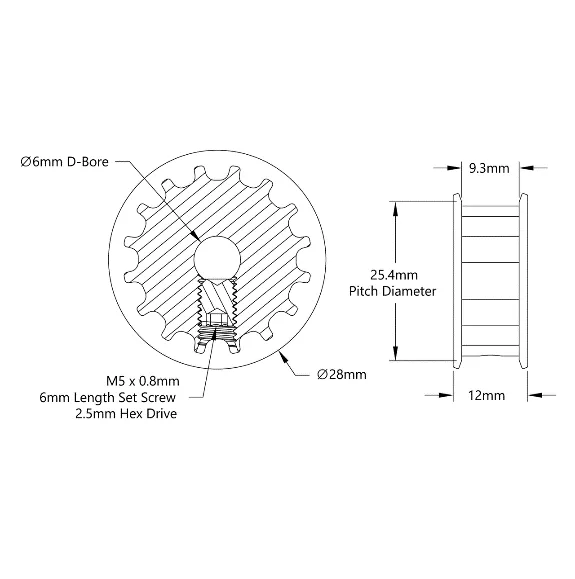

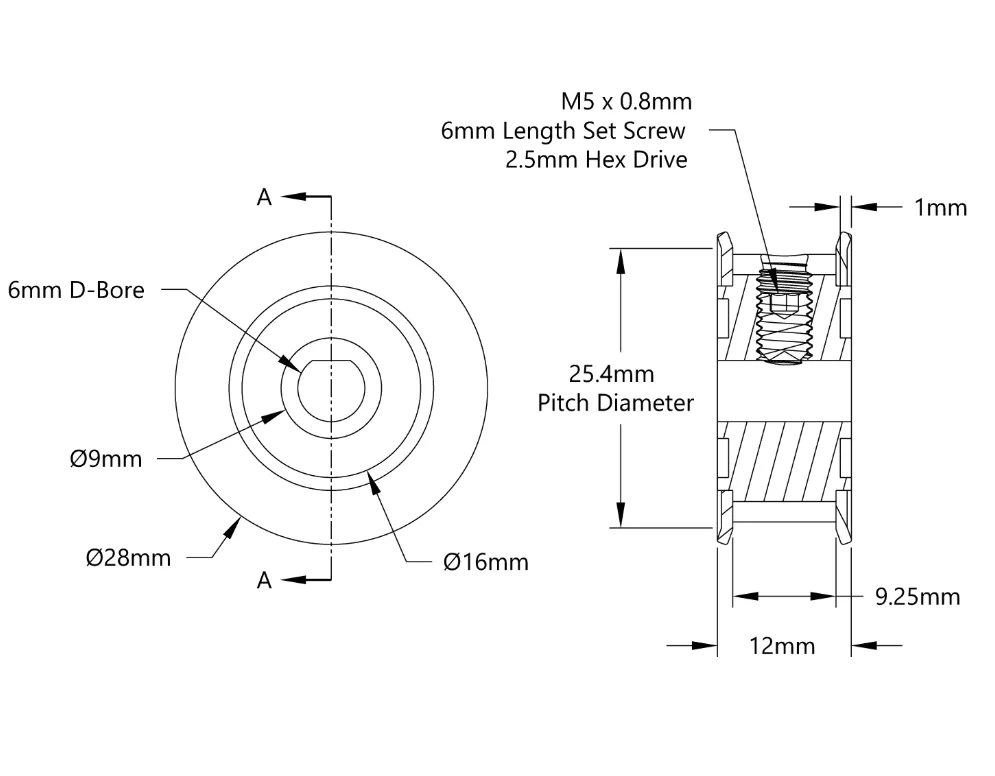

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5414-1006-0016 |
| Weight | 13g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 16 |
