5411 Series 5mm HTD Pitch Aluminum Hub Mount Timing Belt Pulley (14mm Bore, 24 Tooth)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
5mm HTD Timing Pulleys are an excellent choice for larger scale chassis that are driven by high-torque motors. The 5mm pitch provides room for a taller tooth to create a drive with less chance of belt-slip.This 5mm HTD pitch timing pulley is able to accommodate 9mm width 5mm pitch timing belt between the flanges. This is the largest diameter of 5mm pulley that’s able to run inside of 3120 Series U-Channel while providing enough clearance for the belt. The 14mm bore is surrounded with the standard 16mm thefirsttool pattern so you can install this hub pulley onto a hub.

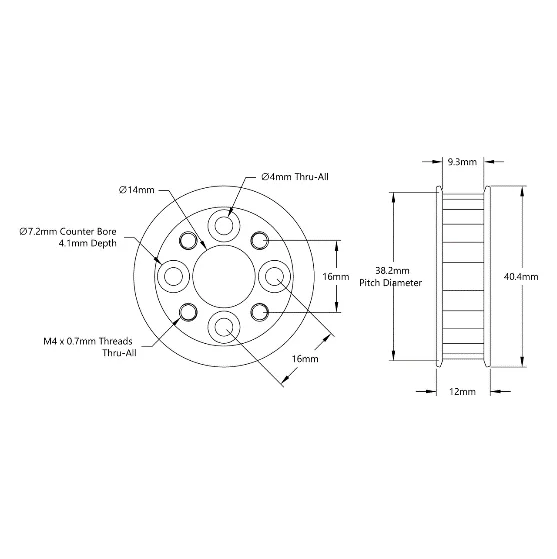

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5411-0014-0024 |
| Weight | 23g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 24 |
