5402 Series 3mm HTD Pitch Plastic Hub Mount Timing Belt Pulley (14mm Bore, 108 Tooth)
SKU: ZY-5402-0014-0108
R 91,96Ex Tax: R 79,97
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

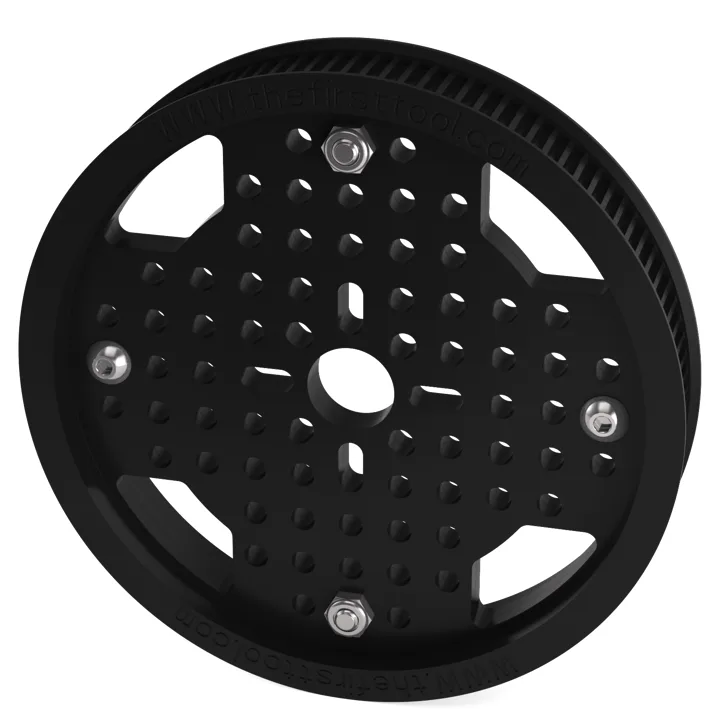

This 108 tooth timing pulley is a two piece pulley that nests together and fastens to the other half with M4 button head screws. The diameter allows for the full pattern to be molded into the face so that you can fasten to the standard 16mm pattern or the larger 32mm pattern. Comes preassembled with M4 screws and nuts as shown in image 1.

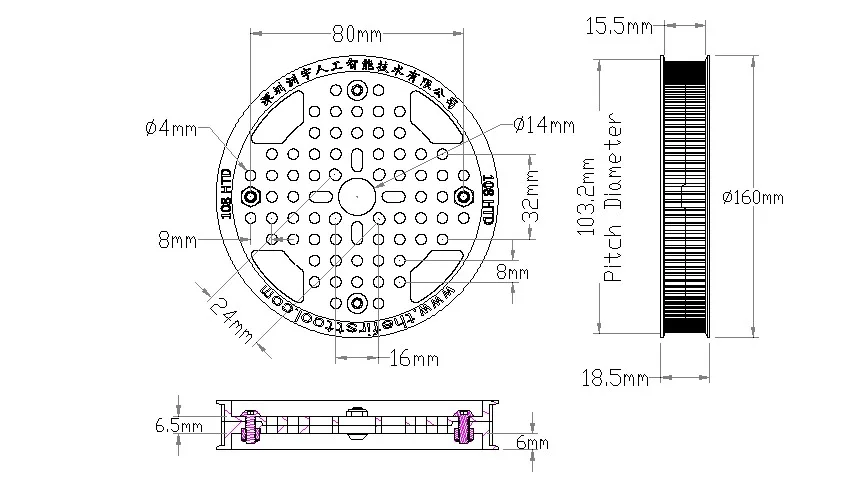

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5402-0014-0108 |
| Bore | 14mm |
| Weight | 65g |
| Material | Plastic |
| Color | Black |
| Tooth Count | 108 |
| Pitch | 3mm HTD |
