Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Round Belt Pulley are a good power transfer option for low torque situations. the most common partner for this Round Belt Pulley is Round Belt ,They are especially useful when you want to prevent backdrive forces from damaging your motor. Once the amount of backdrive force exceeds the driving friction of the belt on the pulleys, the belt will slip on the pulleys. The massive 32mm bore works well for larger builds that require additional strength and size in the rotating assembly. This bore size allows you to utilize shafting and tubing up to 32mm diameter such as our goTUBE and 32mm OD Aluminum Tubing. These Round Belt Pulley have the 32mm mounting pattern so they’re compatible with any of the 3302 or 3305 Series Clamping Hubs.
PD 96mm

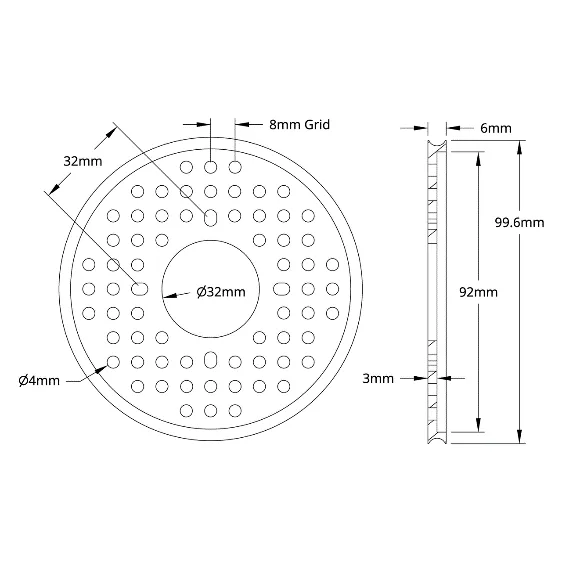

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5400-0032-0096 |
| Bore | 32mm |
| Weight | 53g |
| Material | Aluminum |
| Finish | Clear Anodized |
