5310 Series 8mm Pitch Aluminum Hub Mount Sprocket (14mm Bore, 14 Tooth)
SKU: ZY-5310-0014-0014
R 137,94Ex Tax: R 119,95
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

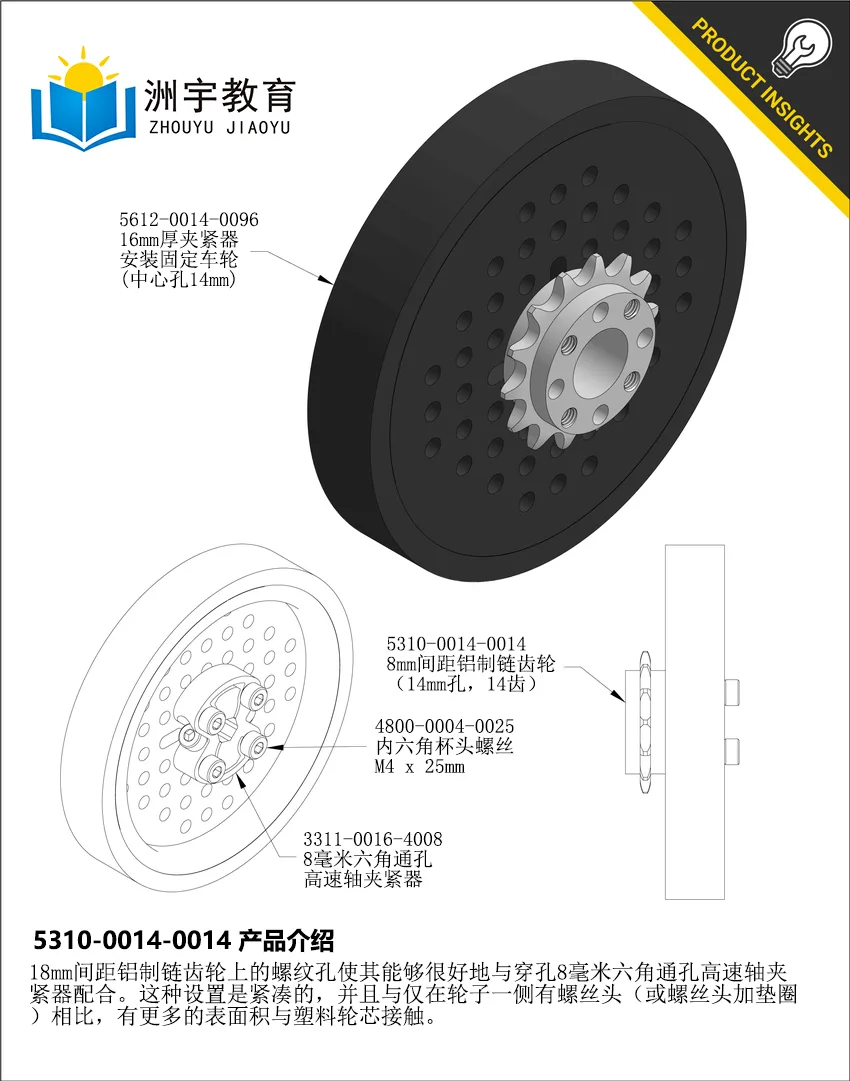

These 8mm pitch sprockets have the 16mm pattern in order to fasten to a hub or rotating assembly.The 14 tooth sprocket is the smallest tooth count that will fit on a 16mm pattern hub. The protrusion on each side provides room for the chain links to pass without contacting the hub it’s mated to. The threaded holes allow the sprocket to be fastened to thru-hole components while the thru-holes allow it to be fastened to threaded components.

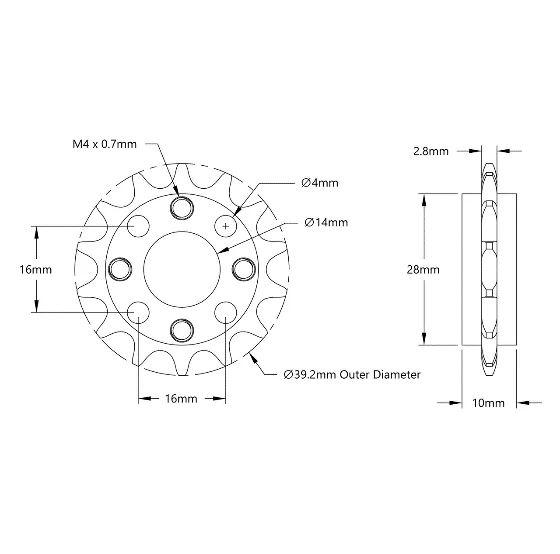

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 5310-0014-0014 |
| Weight | 12g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 12 |
| Pitch | 8mm (05B ) |
